HYDRAULIC,PNEUMATIC,ELECTRICAL,ELECTRONICSYSTEMS-PRIMARYHYDRAULICPOWERSYSTEM

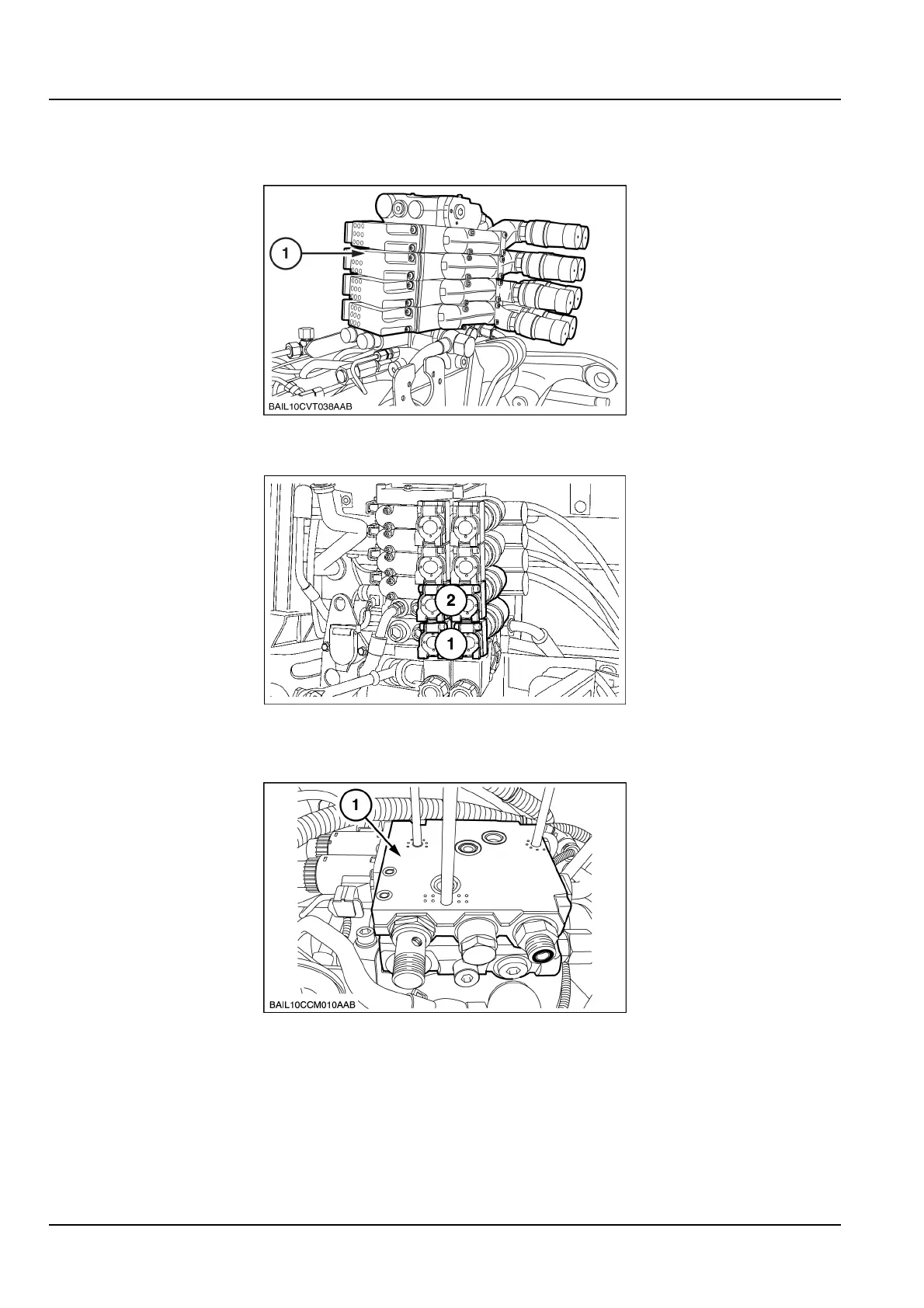

Therearetwotypesofremotevalvesavailablefortheclosedcentresystem.Mechanicalremotevalvesoperated
viaacablefromwithinthecaborelectrohydraulicallyoperatedvalves,(1)Figure6,whichareoperatedbyelectrical
switchesandhavetheirowninbuiltprocessortocontroloilowviaasolenoidvalve.
BAIL10CVT038AAB6
Mechanicalremotecontrolvalves(1)arealsoavailablewithelectronicdraftcontrol.(2).Mechanicalremotesarealso
availablewithacombinationcongurableandnoncongurablevalveslices.SeeT able1
BRE1744B7
ThehydraulicliftElectronicDraftControlvalve(EDCvalve)isastacktypeproportionalsolenoidoperatedvalve(1)
mountedwiththeremotecontrolvalvesattherearofthetractor.(RefertoHITCHElectronicdraftcontrol-Static
description(H.10.D)
BAIL10CCM010AAB8
Tractorsinstalledwiththeelectronicdraftcontrolhydraulicliftassemblyuseauniqueoperatorcontrolpanel.
