Case IH PUMA 145 - Page 50

HYDRAULIC,PNEUMATIC,ELECTRICAL,ELECTRONICSYSTEMS-PRIMARYHYDRAULICPOWERSYSTEM
BRK5798B12

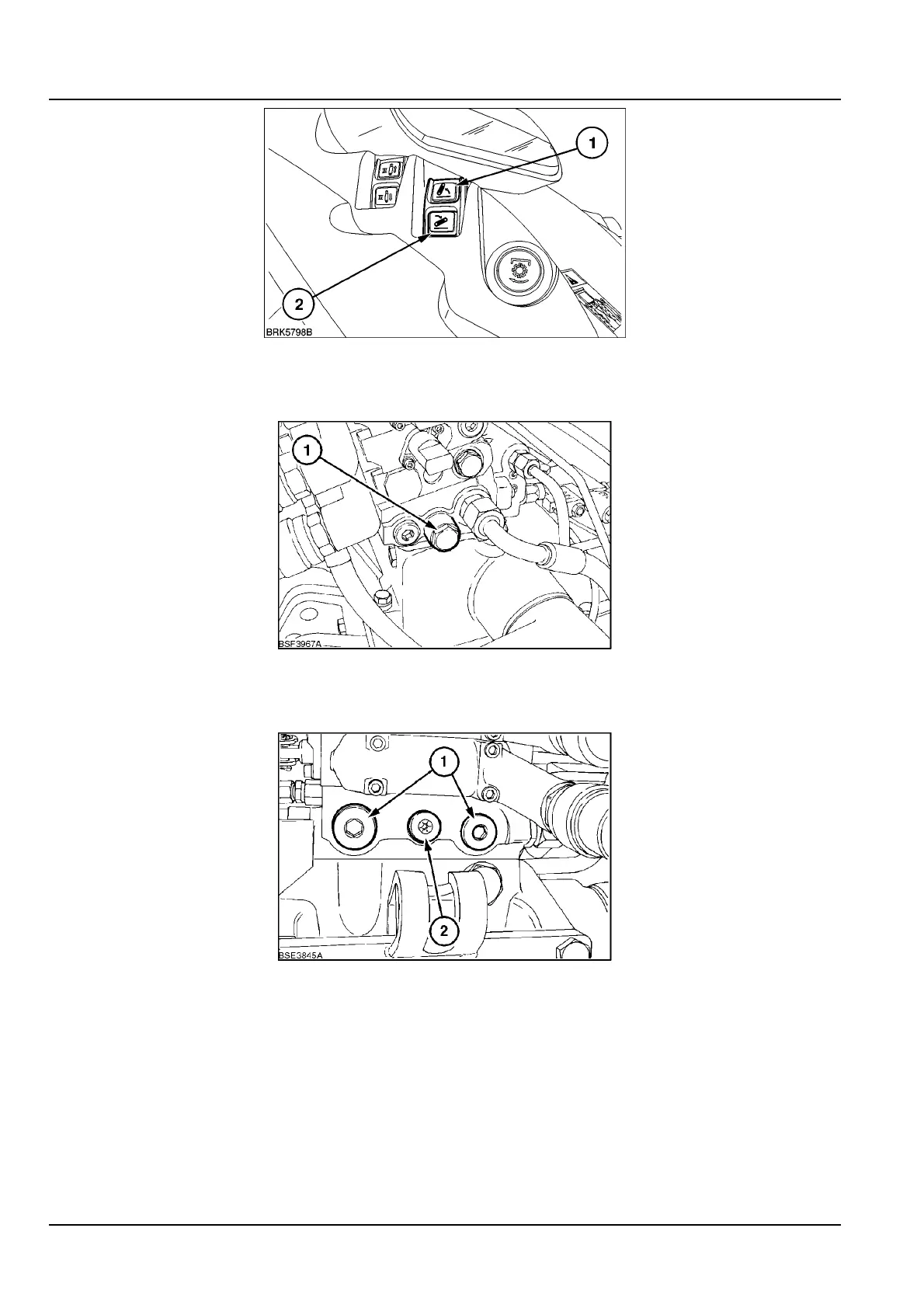

Theraiseandloweringfunctionsoftheelectronicdraftcontrolliftsystemcanalsobeoperatedfromtherearfender
switches(1)and(2)
BSF3967A_43013
LocatedbelowtheElectronicDraftControlvalve(Wheretted),istheHydraulicPowerTappingport(PowerBeyond)
block.Thisincludesapriorityvalveandalsoalowpressureregulatingvalve(1).
BSE3845A14
1.PowerBeyondPorts
2.PressureReliefValve
84479138A06/06/2011
A.10.A/22
