Engine-Engineandcrankcase

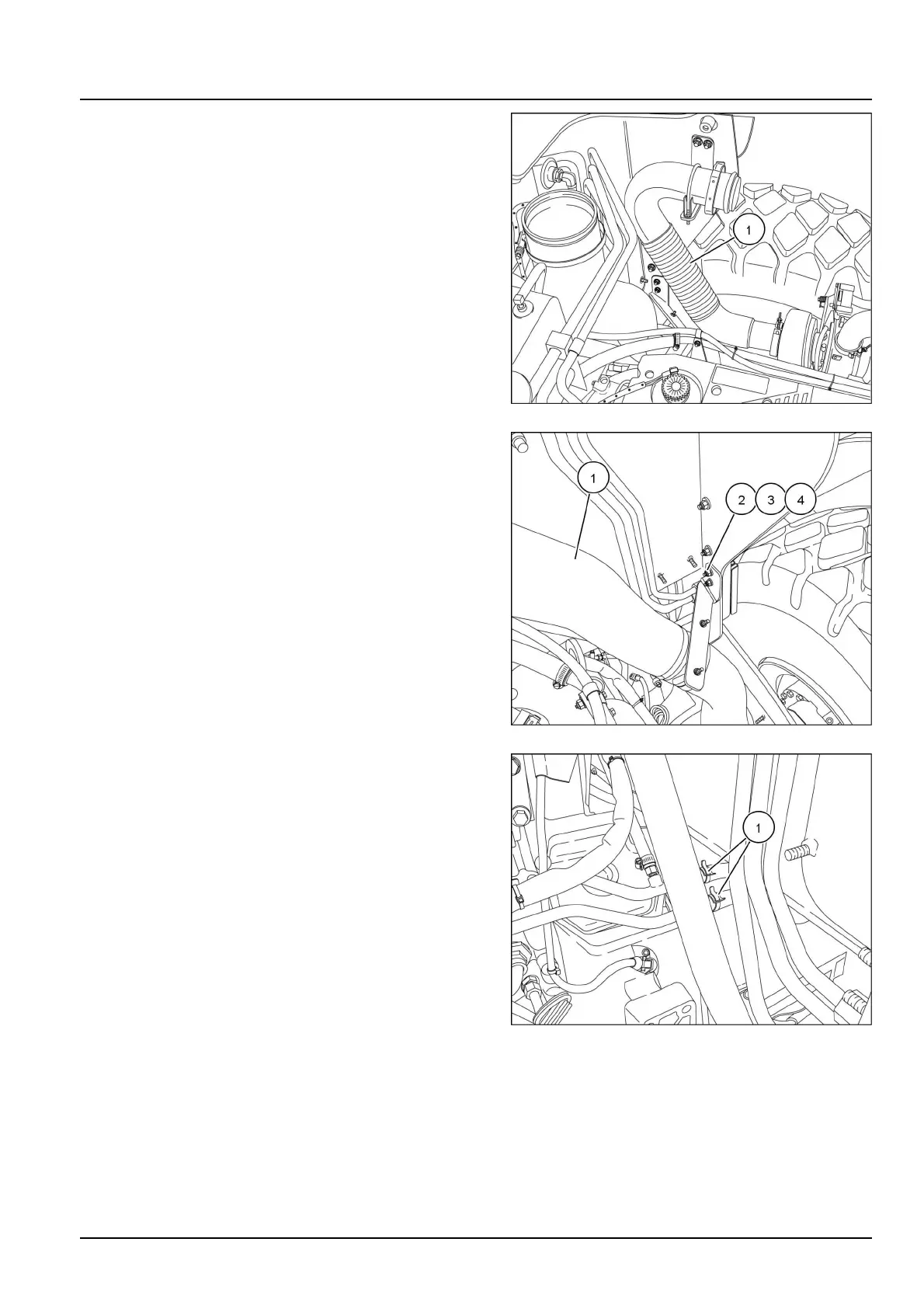

33.Removetheturboexhausttube(1).
RCPH11WHL022AAR18
34.Removetwobolts(2),washers(3),andnuts(4).Re-
movetheairintakehose(1).
RCPH11WHL023AAR19
35.Disconnecttheinletandoutletheatercoreheater
hoses(1).
RCPH11WHL038AAR20
4739246119/06/2012
10.001/11
