Case 1021F - Page 50

Engine-Engineandcrankcase

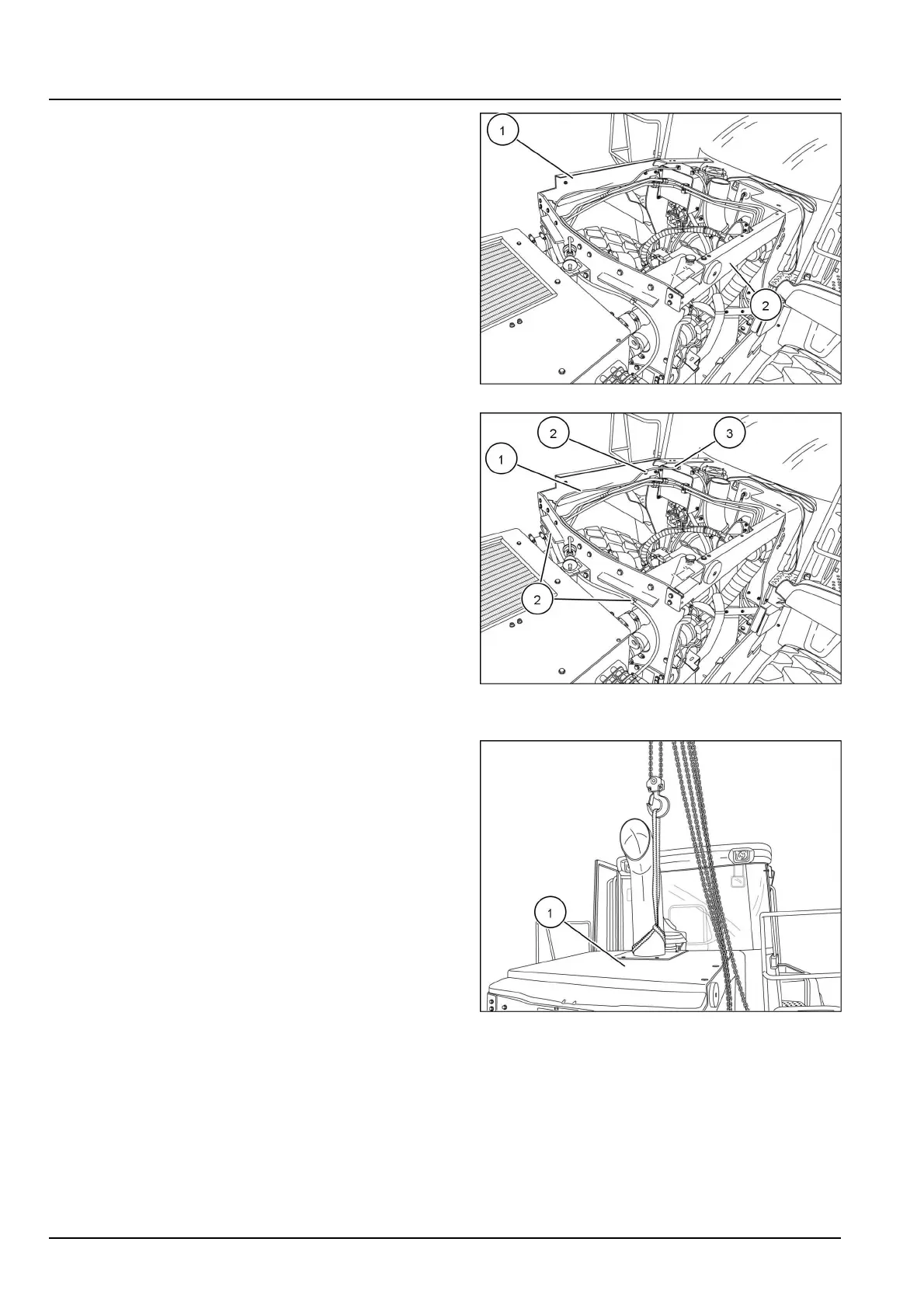

48.Installtheleftbracket(1)andrightbracket(2).
RCPH11WHL012AAR31
49.InstalltheP-clamps(2)andoverowtube(1)tothe
enginewall,leftbracket,anddeaerationtank(3).
RCPH11WHL012AAR32
50.Installthemuferassembly.
51.Lowertheexhauststackhood(1)infrontoftheen-
ginewallandontotheleftbracket,rightbracket,and
hydraulicoiltank.
52.Installtheexhauststackhoodmountingbolts.
RCPH11WHL010AAR33
4739246119/06/2012
10.001/28
