Engine-Engineandcrankcase

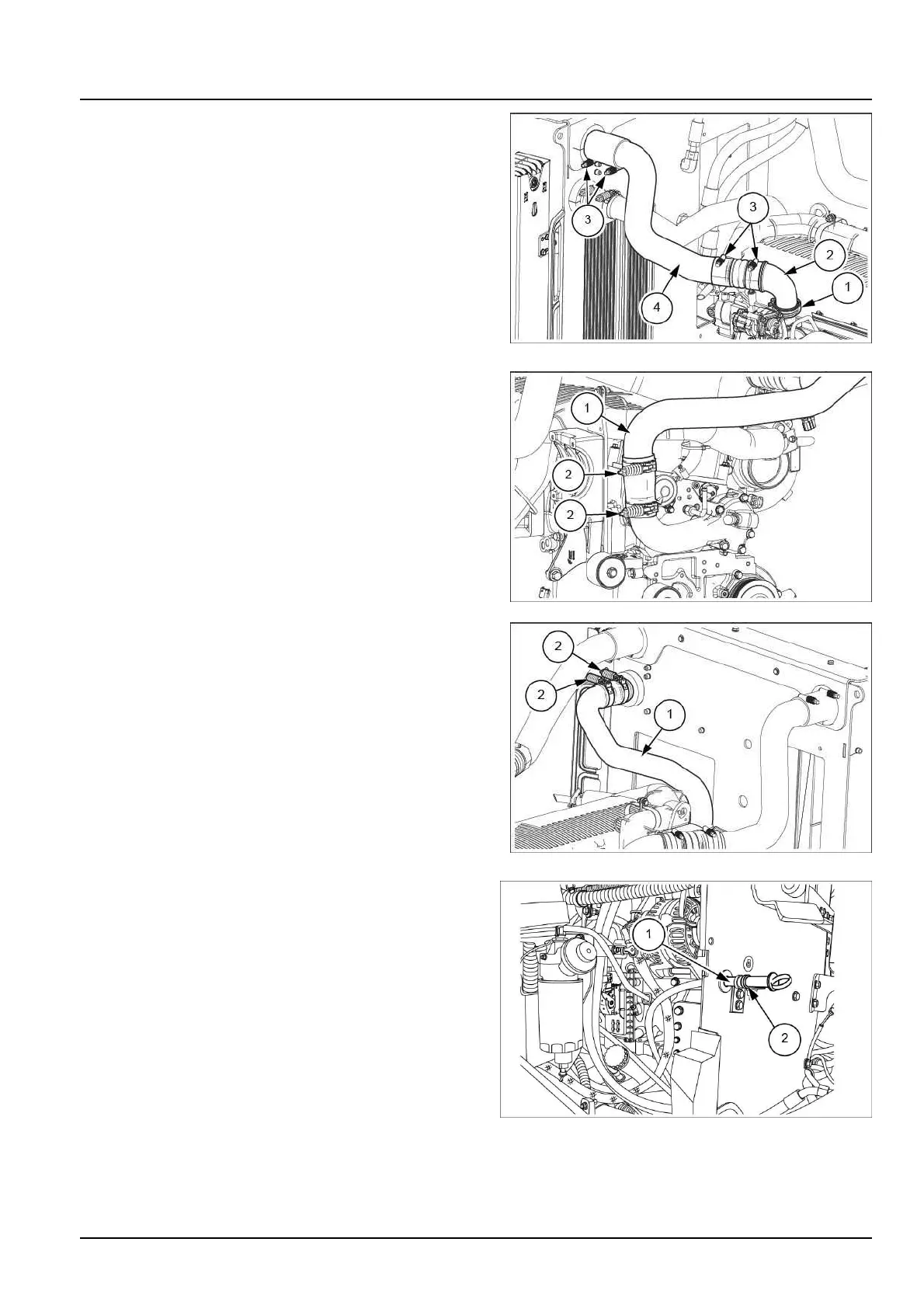

23.Loosentheclamps(3)todisconnecttheairintaketube
(4).
NOTE:forclarity,theenginewallisnotshowninthegure.
LEIL17WHL0260AB19
24.Loosentheclamps(2)todisconnecttheupperradia-
tortube(1).
NOTE:forclarity,theenginewallisnotshowninthegure.
25.RemovetheV-bandclamp(1)todisconnecttheair
intakeelbow(2)fromtheturbocharger.Discardthe
O-ring.
LEIL17WHL0261AB20
LEIL17WHL0262AB21
26.RemovetheoildipstickP-clamp(2).Pulltheoildip-
sticktube(1)throughthewall.
LEIL15WHL0819AB22
