Case 1021G - Page 41

Engine-Engineandcrankcase

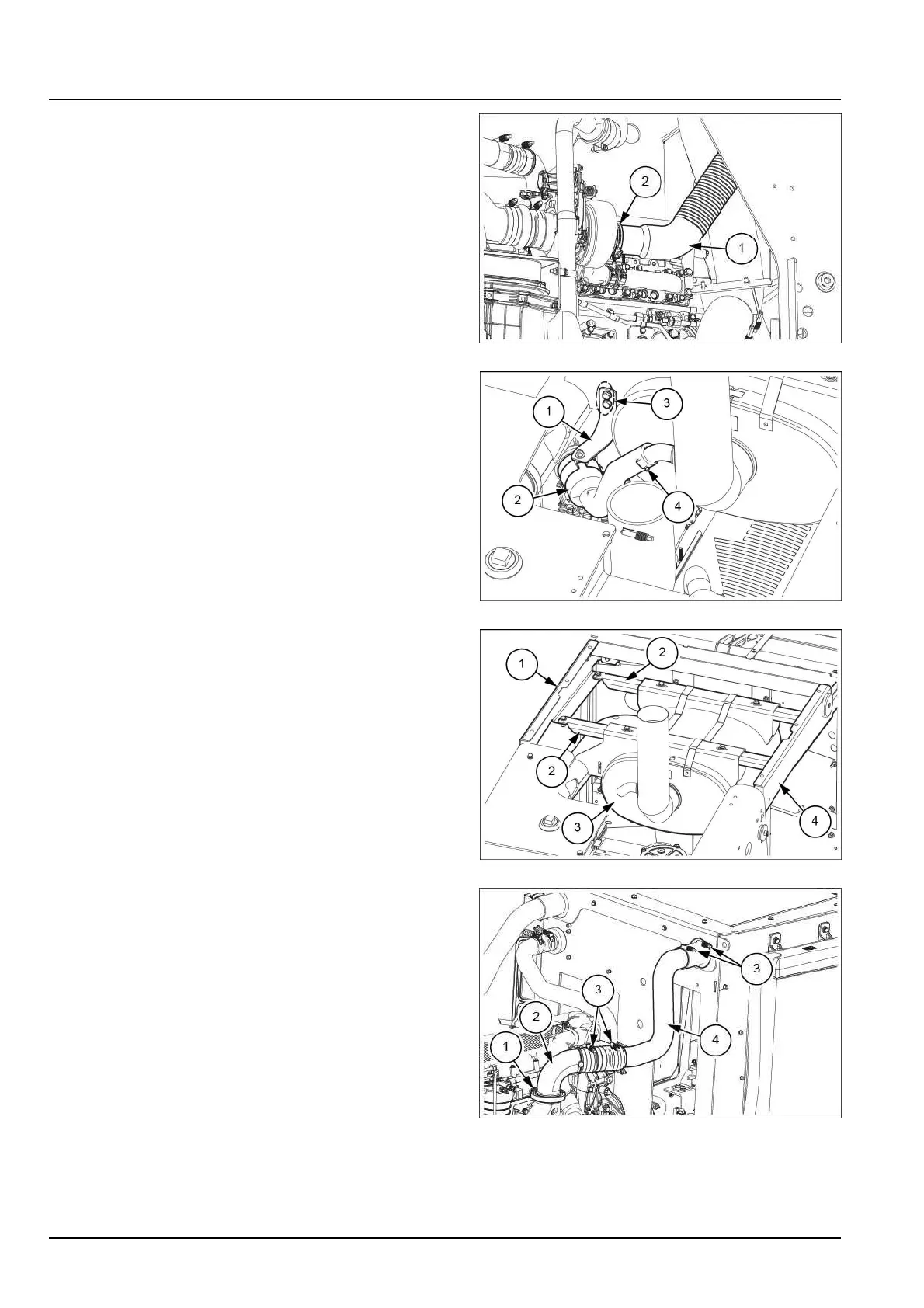

19.Loosentheclamp(2)todisconnecttheexhaustsys-
tempipe(1)fromtheengine.
LEIL17WHL0301AB15
20.Removethetwobolts,washersandnuts(3)toun-
xfromthemuferthebracket(1)thatsupportsthe
checkvalve(2).Loosentheclamp(4)todisconnect
theaspiratorenginehosefromthemufer.
LEIL17WHL0300AB16
21.Attachasuitableliftequipmenttotheleft-handand
right-handsupportbrackets(1),(4).
Removethehardwaretounxtheleft-handandright-
handsupportbrackets(1),(4)fromthehydraulictank
andenginewall.
Movetheexhaustsystemassembly(left-handand
right-handsupportbrackets(1),(4),mufersupports
(2),mufer(3))outofthemachine.
NOTE:besureallwireharnessconnectionsandhosesare
outofthewayduringremoval.
LEIL17WHL0304AB17
22.LoosentheV-bandclamp(1)todisconnecttheair
intercoolerinletelbow(2).DiscardtheO-ring.
Loosentheclamps(3)todisconnecttheairintercooler
inlettube(4).
NOTE:forclarity,theenginewallisnotshowninthegure.
LEIL17WHL0259AB18
48083742_EN31/07/2018
10.1[10.001]/8
