Case 1021G - Page 40

Engine-Engineandcrankcase

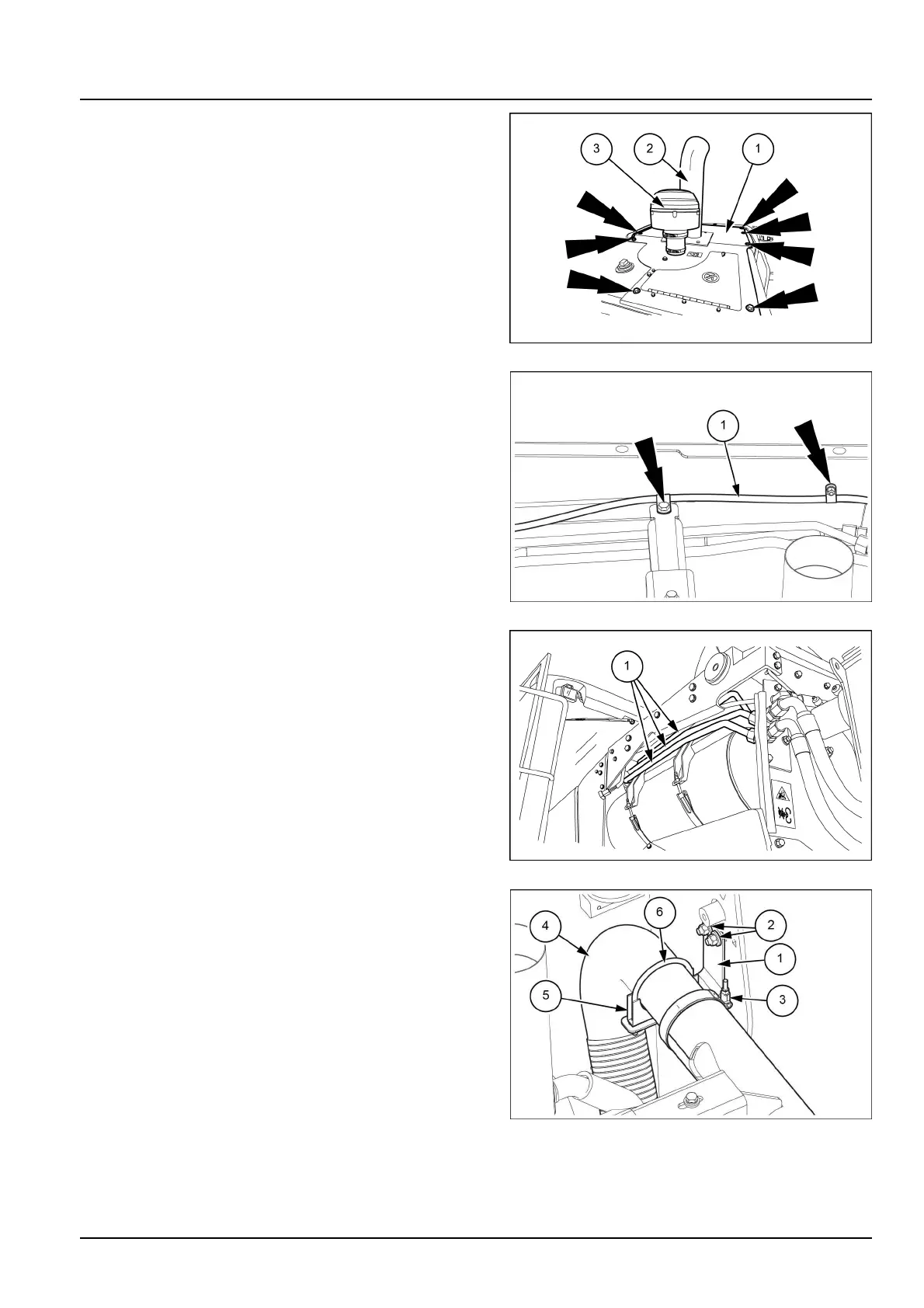

14.Removethemountingbolts(arrows)fromengine
compartmenttopcover(1).
15.Attachasuitableliftingdeviceandliftstraptotheen-
ginecompartmentcoverandexhauststack.Carefully
removethecover(1),theexhauststack(2)andthe
precleaner(3)asanassembly.
LEIL15WHL0679AB11
16.Disconnecttheradiatorventhose(1)fromtheradia-
tor.RemovetheP-clampsthatsecurethehosetothe
left-handmufersupportbracket.
TaganddisconnecttheENG_Hconnector.
LEIL17WHL0307AB12
17.Removethehydraulicoillines(1)andrelatedttings.
LEIL15WHL0682AB13
18.Removethetwobolts,washersandnuts(2)toun-
xtheexhaustpipesupportbracket(1)fromthehy-
draulictank.
Removetheclampsaddle(5),U-bolt(6),washersand
nutstoseparatetheexhaustsystempipe(4)fromthe
bracket(1).
LEIL17WHL0302AB14
