Case 1021G - Page 46

Engine-Engineandcrankcase

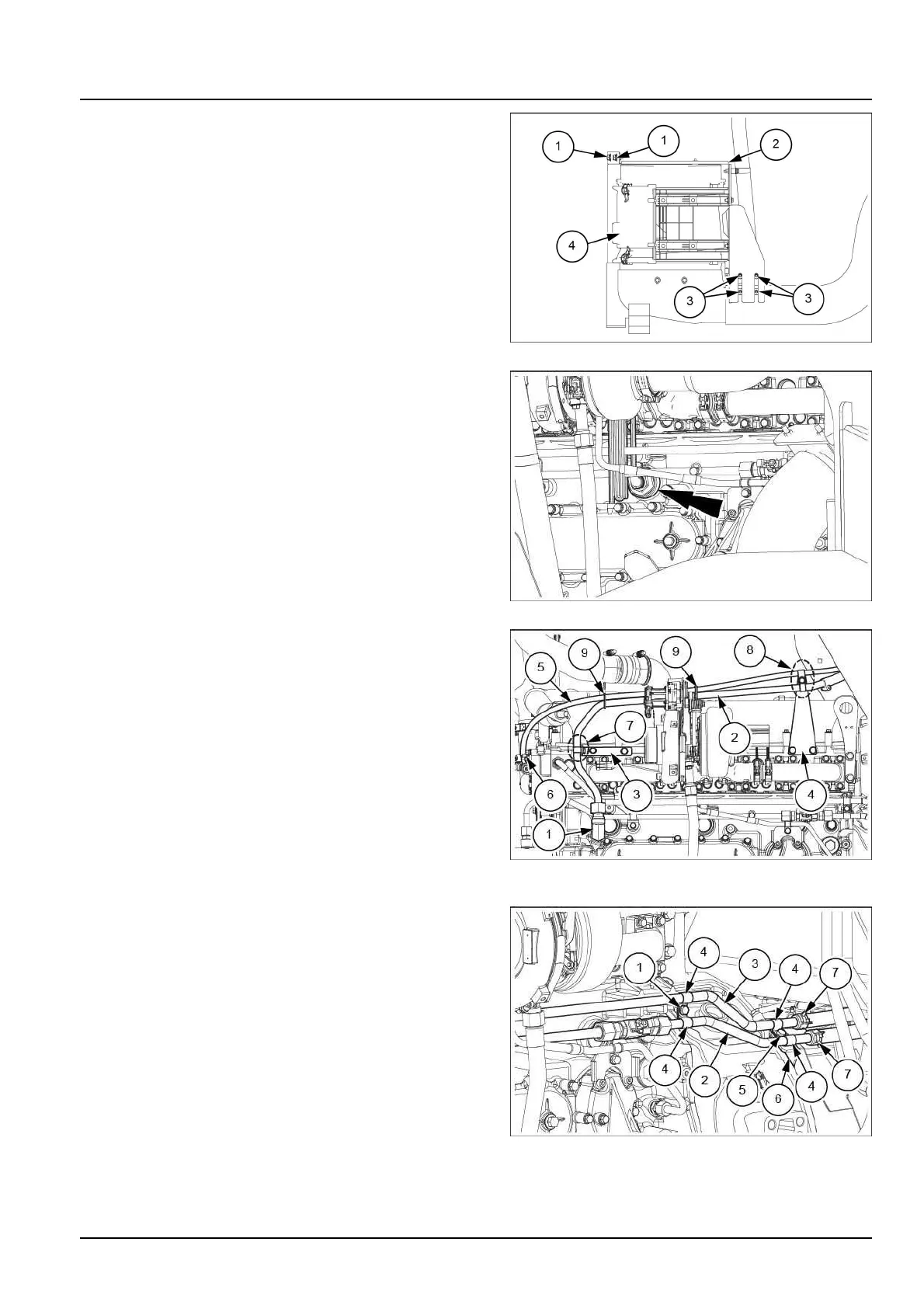

49.Removethebolts,washersandnuts(1)tounxthe
aircleanerbracket(2)fromtheenginewall.
50.Removethefournutsandwashers(3)tounxtheair
cleanerbracket(2)fromtherearchassis.Movethe
aircleaner(4)withtheaircleanerbracket(2)outof
themachine.
LEIL17WHL0267AB35
51.Disconnecttheengineheatercablefromtheengine.
LEIL17WHL0305AB36
52.Cutthecableties(9).
53.Removethebolt,washers,nutandtwoP-clamps(8)
fromthebracket(4).
54.Removethebolt,washers,nutandP-clamp(7)from
thebracket(4).
55.Removetheclamp(6)todisconnecttheenginevent
hose(5)fromtheengine.
56.Disconnectthellhose(2)fromthe90°elbow(1).
Disconnectthe90°elbow(1)fromtheengine.Discard
theO-ring.
57.Removethebrackets(3)and(4)fromtheengine
block.
LEIL17WHL0264AB37
58.Loosentheclamps(7)todisconnecttheheaterreturn
tube(2)andheatersupplytube(3).
Removethebolt,washer,nut(1)andtwoP-clamps
(4)toseparatethetubesfromtheengine.
Removethebolt,washer(5)andtwoP-clamps(4)to
separatethetubesfromthebracket(6).
LEIL17WHL0256AB38
48083742_EN31/07/2018
10.1[10.001]/13
