SECTION 58 - ATTACHMENT/HEADERS - CHAPTER 3
58-14

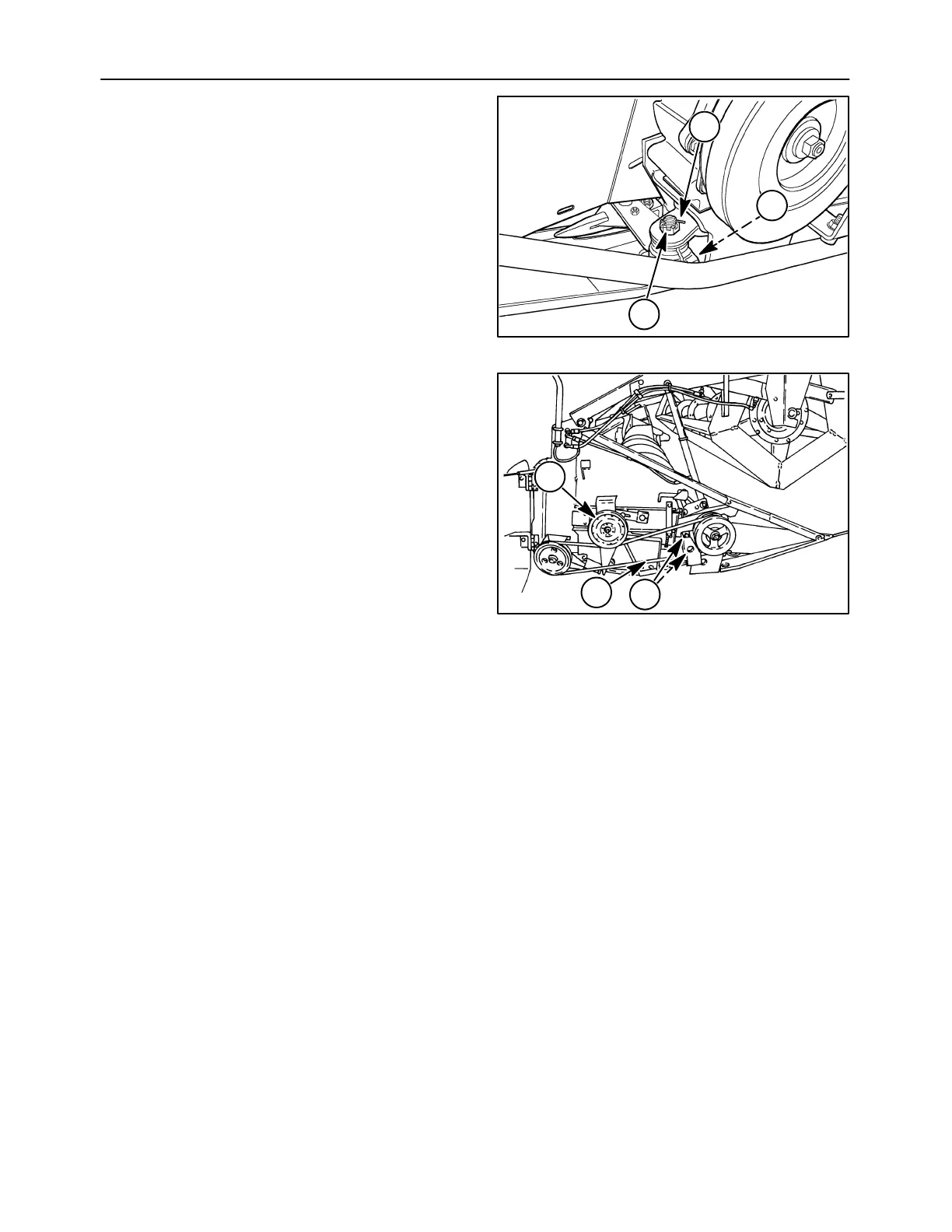

4. Install the castellated nut, 1, and tighten securely.
Install the cotter pin, 2, to lock the nut into place.
Tighten the knife arm bearing clamp, 3.
5. Secure the shield extension in place.
50007628
2
3
1
35
6. Route the drive belt, 1, around the wobble box
sheave and under the idler pulley, 2. Adjust belt
tension by pushing down on the idler pulley.
Tighten the nut on the pulley to secure it in place.
7. Install the wobble box bracket cap screws and
nuts at 3. Tighten securely. Install the guard if
applicable.
20023028
1
2
3
36
