SECTION 35 - HYDRAULIC SYSTEM - CHAPTER 1
35-3

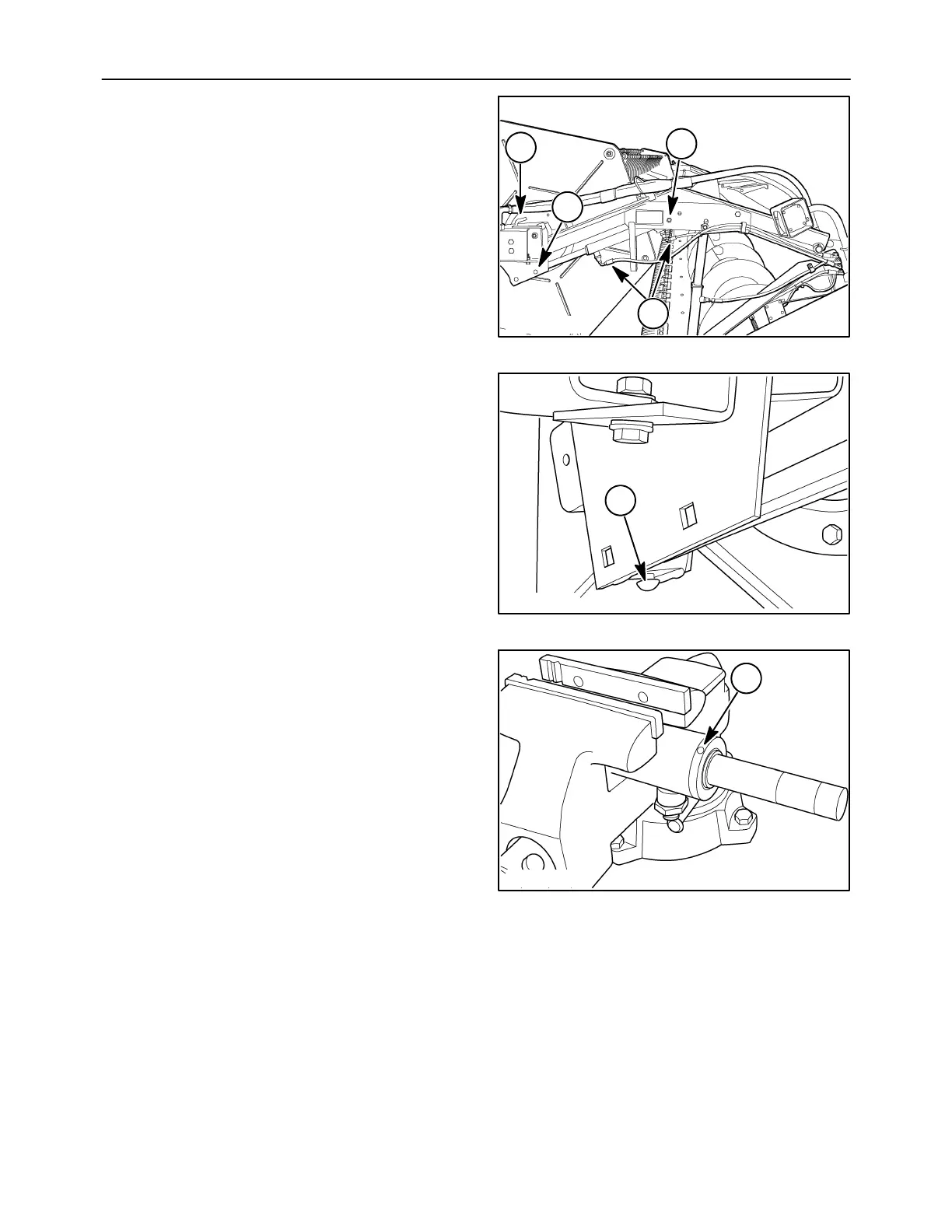

Cylinder Removal
1. Raise the reel and engage the cylinder locks, or
lower it completely. Disconnect head hydraulics
from the combine.
2. Verify that the reel fore/aft position is held
securely in place with the locking pins, 1.
3. Disconnect the hydraulic lines, 2. Install plugs
into the ends of the hydraulic lines to prevent
entry of foreign material.
4. Remove the clevis bolts, 3, from the barrel and
rod ends of the cylinder.
50007650
3
1
3
2
2
NOTE: On rigid grain heads, the fore/aft cylinders
are connected to the reel with a round pin, 1.
10007683
1
3
Cylinder Disassembly
1. Secure the cylinder in a holding device.
2. Using a pin spanner, or punch and hammer at 1,
rotate the cylinder gland counterclockwise to
disengage it from the barrel.
10007651
1
4
