SECTION 35 - HYDRAULIC SYSTEM - CHAPTER 1
35-4

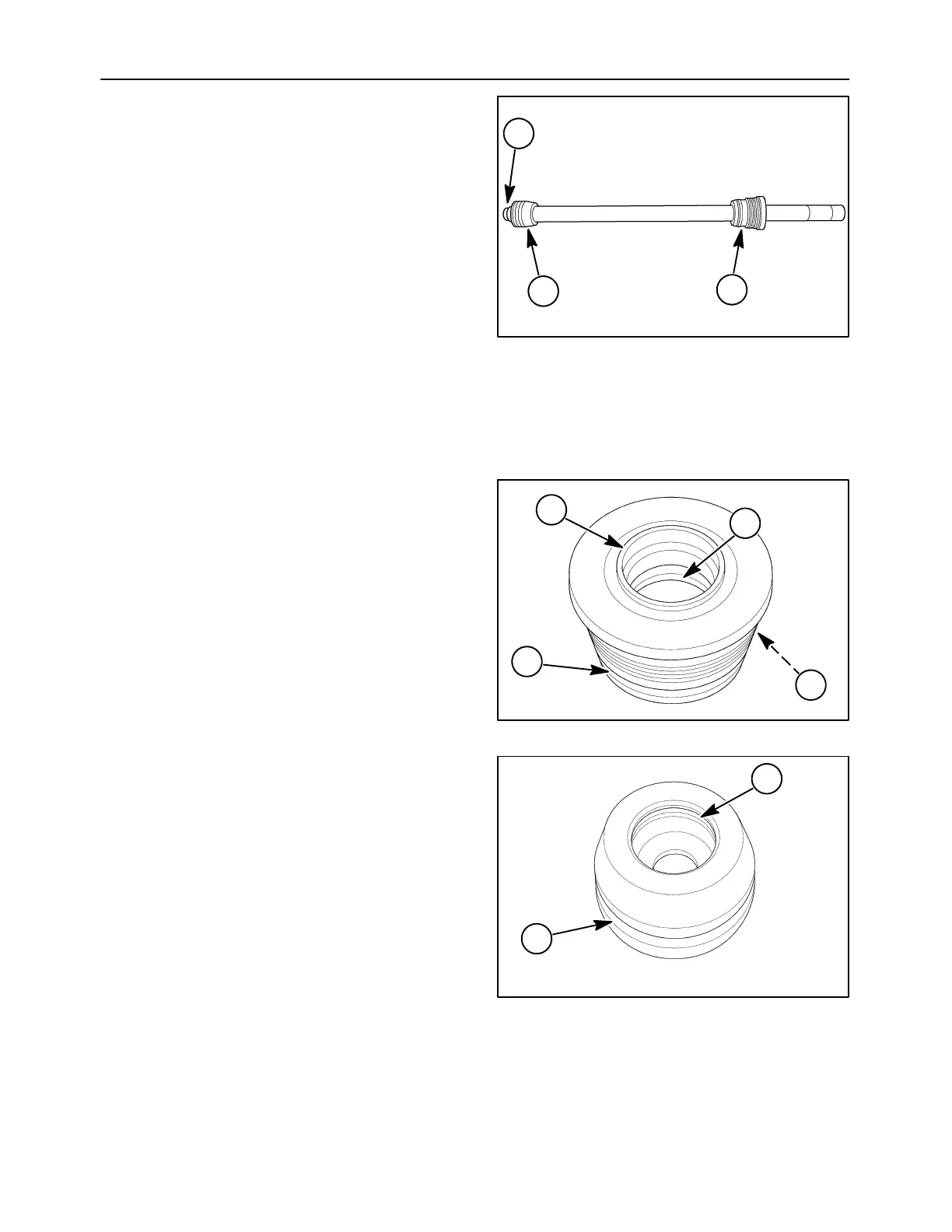

3. Pull the piston rod assembly from the barrel.
Remove the cap screw, 1, from the piston end of
the rod and capture the flat washer.
4. Slide the piston, 2, and gland, 3, from the rod.
5. Remove all O rings and seals from the piston and
gland.
10007652
1
2
3
5
Cylinder Assembly
NOTE: The seals can be soaked in hot water,
approximately 85
_ C (180 _ F), for about 10 minutes to
permit easier installation. Rubber O rings will not
need to be softened.
1. Insert the inside seal, 1, of the gland with the
wiper portion directed toward the barrel end of
the gland. Insert the outside seal, 2, of the gland
with the wiper portion directed toward the rod end
of the gland.
2. Install the O rings, 3 and 4, on the outside of the
gland. The O rings are different diameters and
will only properly fit in one position.
10007653
2
1
3
4
6
3. Insert the inside piston O ring, 1.
NOTE: The piston ring can be soaked in hot water,
approximately 85
_ C (180 _ F), for about 10 minutes to
permit easier installation. The rubber O ring will not
need to be softened.
4. Install the piston seal ring, 2.
10007654
1
2
7
