SECTION 35 - HYDRAULIC SYSTEM - CHAPTER 1
35-5

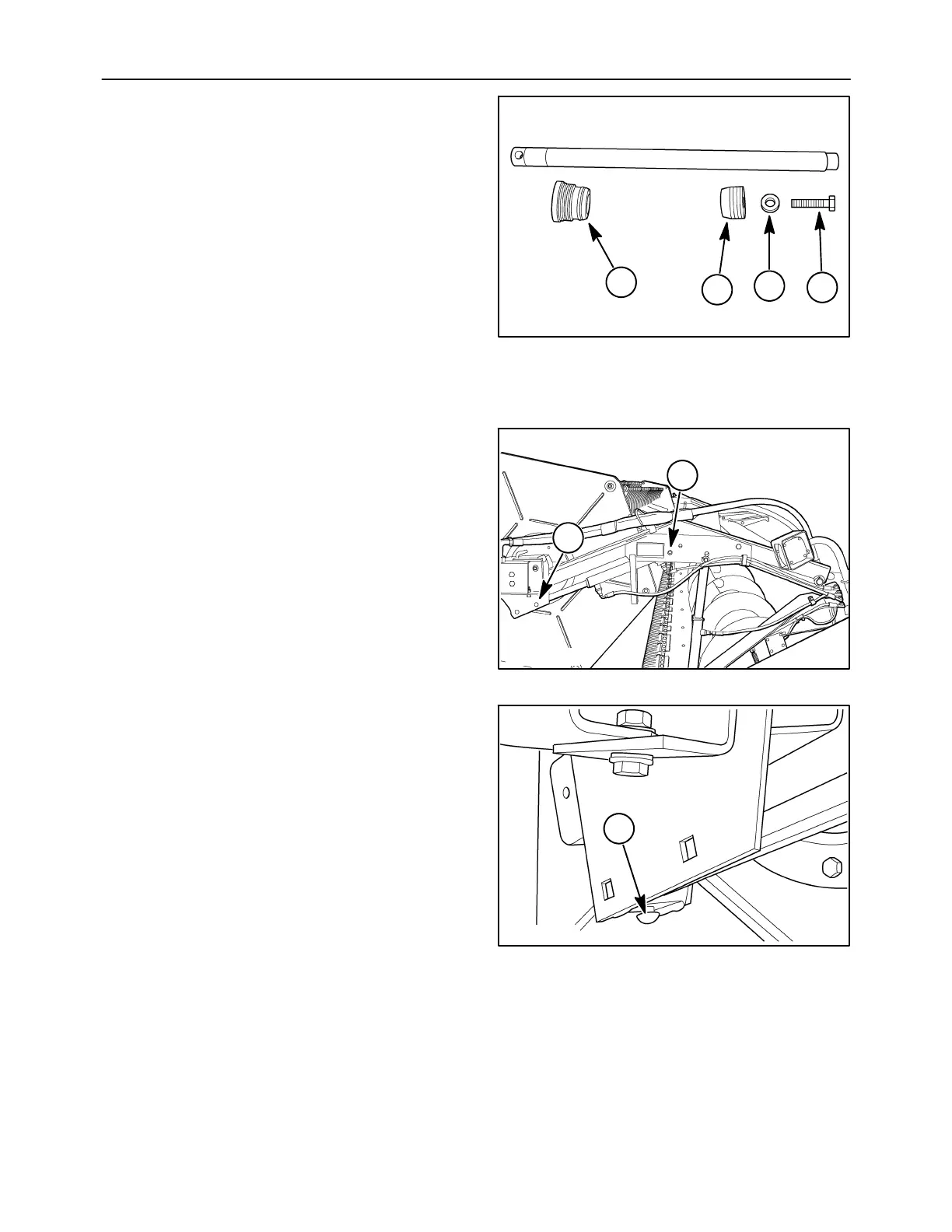

NOTE: The cylinder gland, 1, should be slid over the
piston end of the rod.
5. Apply a light coating of hydraulic oil to the piston
rod. Slide the cylinder gland, 1, onto the rod in the
orientation shown.
6. Apply Loctite 242 to the clean threads of the cap
screw, 2.
7. Set the piston, 3, into position on the end of the
rod.Securethepistoninplaceusingaflat
washer, 4, and cap screw, 2.
Cylinder Installation
NOTE: The cylinders are two different sizes. The
large diameter cylinder is for the left side, and the
small diameter cylinder is for the right.
10007655
1
3
4
2
8
1. Set the barrel end of the cylinder into position at
the rear hole and secure it in place with a clevis
bolt and lock nut, 1. Only tighten the lock nut
enough to take up the slack in the bolt.
2. Set the piston end of the cylinder into position at
the front hole and secure it in place with a clevis
bolt and lock nut, 2. Only tighten the lock nut
enough to take up the slack in the bolt.
50007650
1
2
9
NOTE: On rigid grain heads, the fore/aft cylinders
are connected to the reel with a round pin, 1.
10007683
1
10
