SECTION 35 - HYDRAULIC SYSTEM - CHAPTER 1
35-6

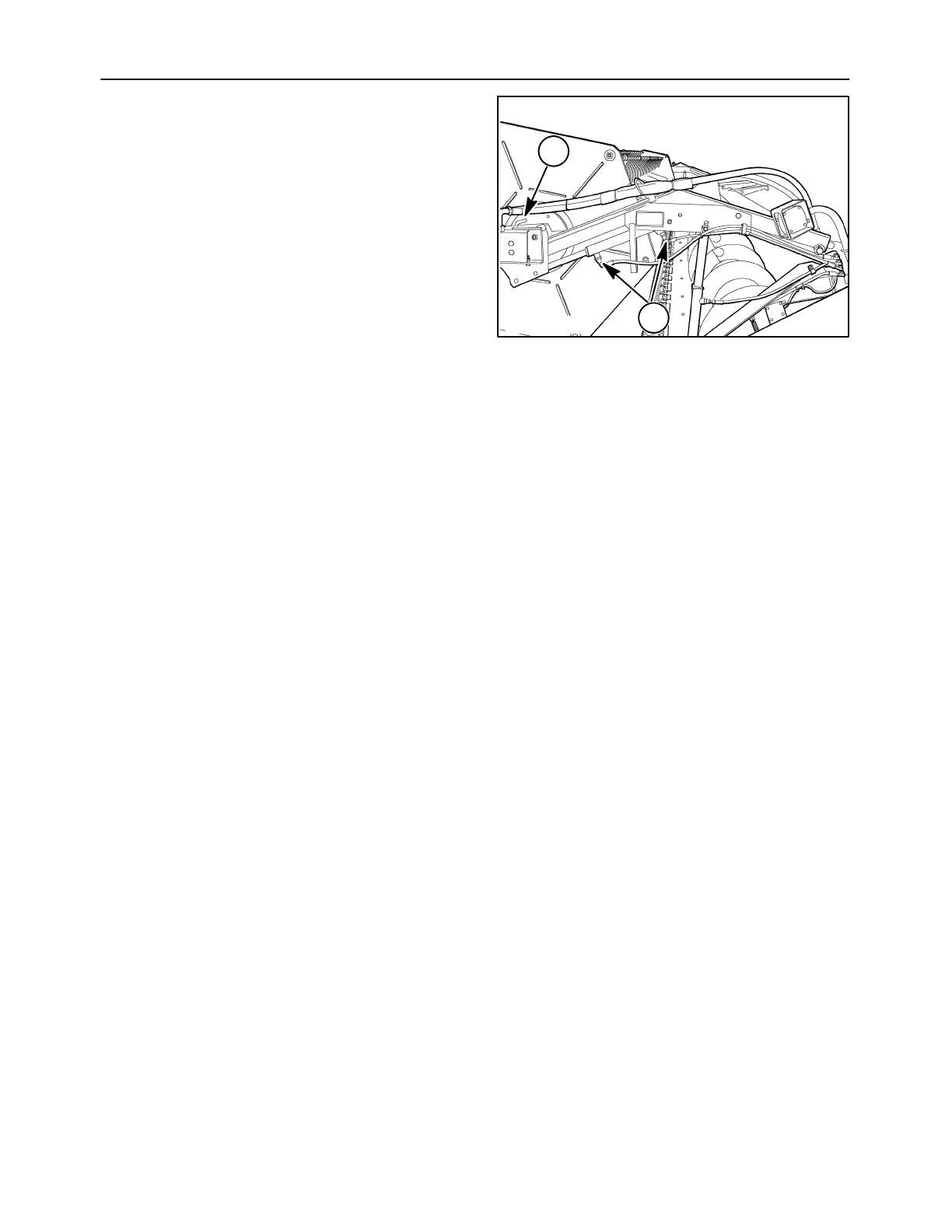

3. Attach the hydraulic hoses, 1, to the cylinder.
4. Connect the head hydraulic system to the
combine. Start the combine engine.
5. Pull up the reel lock pins, 2, and rotate them 90°
to unlock the reel.
6. Push and hold the reel position rocker switch to
retract the cylinders for five seconds. Release
the rocker switch. Run the engine for fifteen
seconds. Repeat this step four times.
7. Push and hold the reel position rocker switch to
extend the cylinders for five seconds. Release
the rocker switch. Run the engine for fifteen
seconds.
8. Push and hold the reel position rocker switch to
retract the cylinders for five seconds. Release
the rocker switch. Run the engine for fifteen
seconds. Repeat steps 7 and 8 four times.
9. Set the reel to the desired position.
50007650
2
1
11
