SECTION 35 - HYDRAULIC SYSTEM - CHAPTER 1
35-11

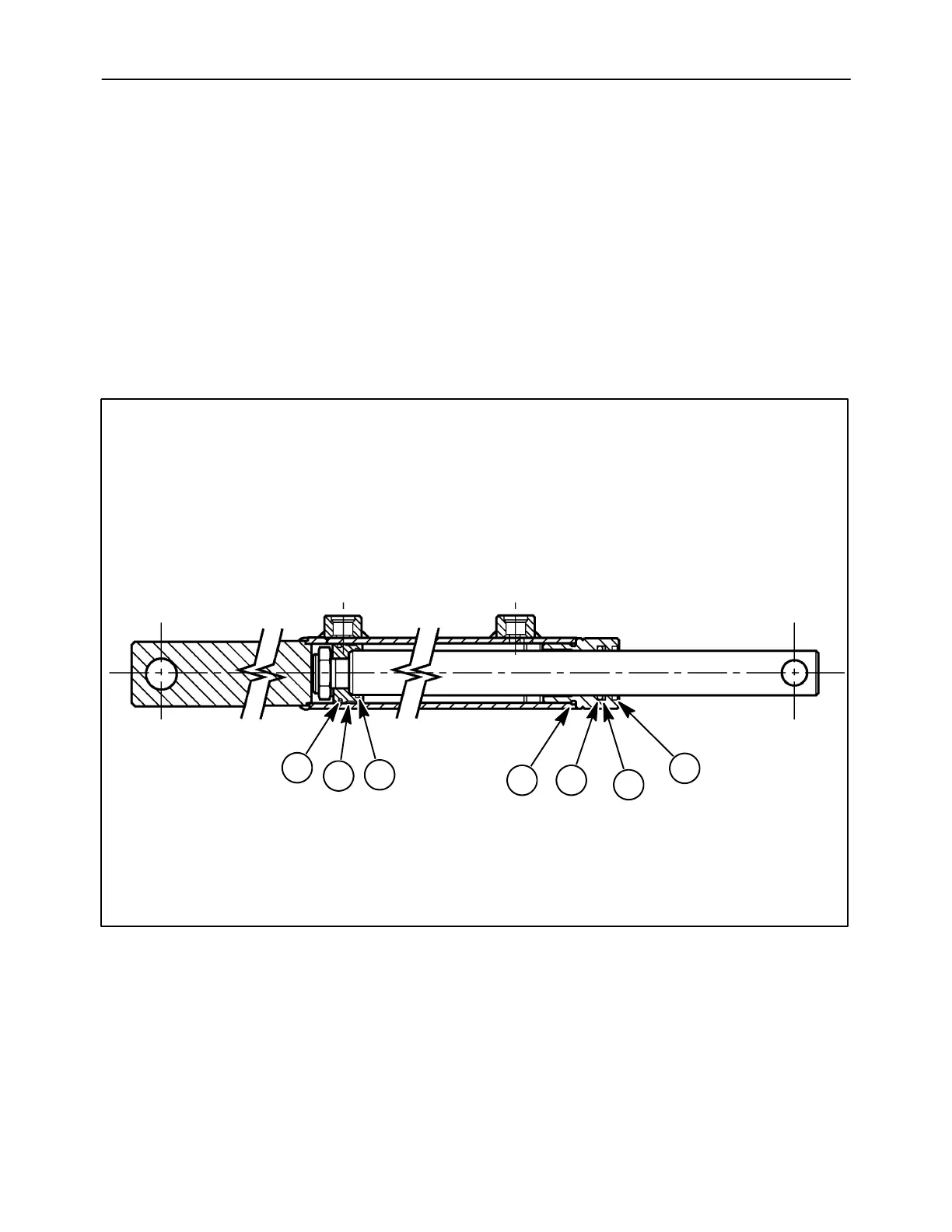

Master Cylinder Assembly
1. Install the O ring, 1, and back up washer, 2, inside
the head. Set the wiper seal, 3, into the head with
the lip facing out.
2. Position the O ring, 4, behind the threads of the
head.
3. Thoroughly lubricate the head and seals. Push
the head onto the piston rod with the threads
toward the piston end.
4. Set the O ring, 5, into the barrel end groove of the
piston. Install the wear ring, 6, over the top of the
O ring.
5. Insert the piston to rod O ring, 7, into the groove
on the inside of the piston.
10008327
1
2
3
4
5
6
7
22
