Case 2010 - Page 44

SECTION 35 - HYDRAULIC SYSTEM - CHAPTER 1
35-12

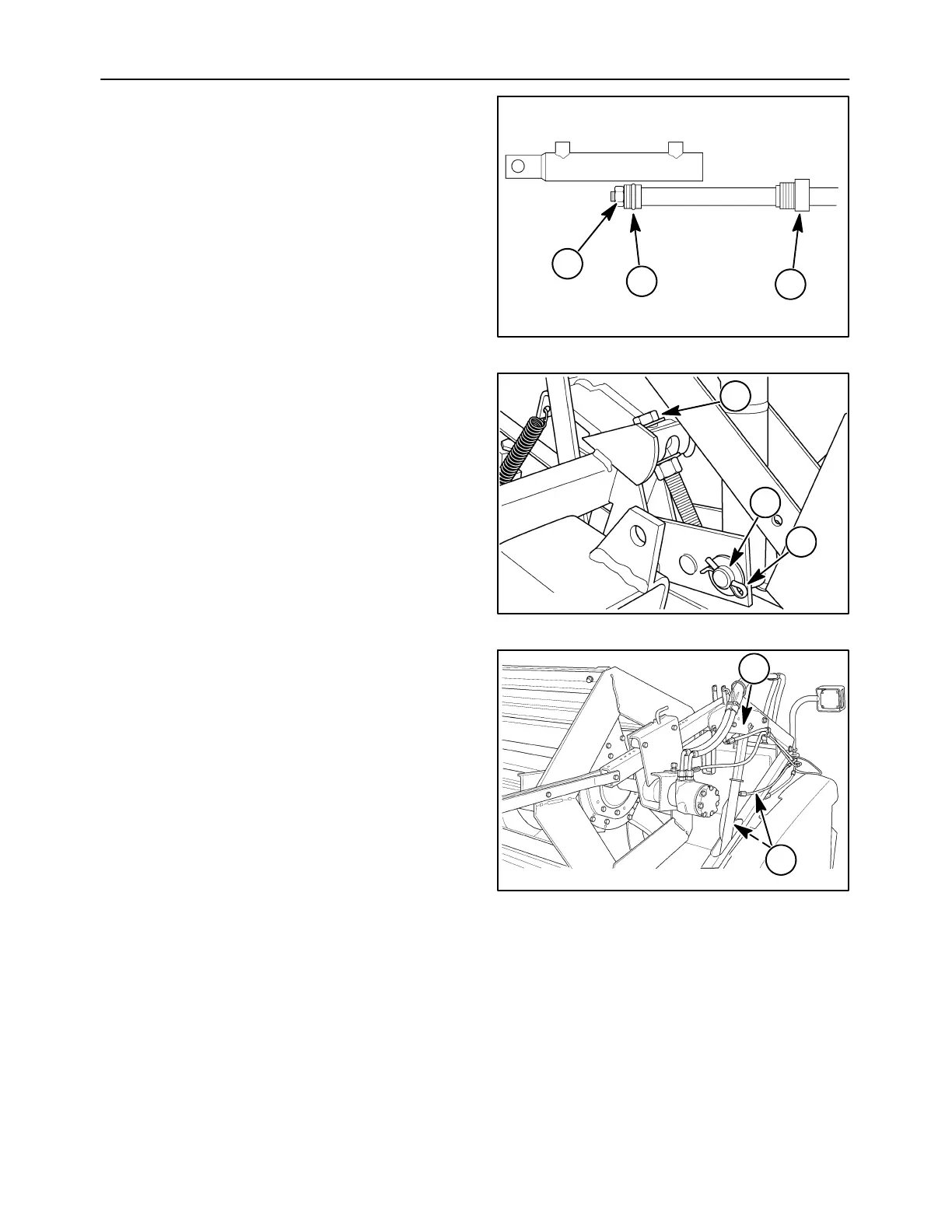

6. Install the piston, 1, on the rod and tighten the
nut, 2, to 122 - 102 N⋅m (90 - 75 ft. lbs.).
7. Lubricate the rod assembly and cylinder barrel.
Slide the assembly into the barrel being careful
not to damage the seals and O rings.
8. Turn the head, 3, into the cylinder barrel and
tighten to 169 - 136 N⋅m (125 - 100 ft. lbs.).
10008326
1
3
2
23
Cylinder Installation
1. Set the cylinder into position with the master
cylinder on the left side of the head, and the
barrel end of the cylinder toward the bottom.
Pass the clevis pin, 1, through the lower cylinder
mount from inside the head. Secure the clevis in
place with a cotter pin, 2. Turn the adjusting bolt,
3, until the lower mount has been returned to its
original position. Repeat this procedure for the
other cylinder.
10007594
3
1
2
24
2. Set the cylinder lock and rod end into position in
the reel arm. Install the upper clevis pin through
the cylinder mount at 2 and secure it in place with
a cotter pin on both sides of the mount. Repeat
this procedure for the other cylinder.
Attach the hydraulic hoses, 1, to their original
ports.
3. Raise the reel and remove the lifting devices.
10007619
2
1
25
