SECTION 58 - ATTACHMENT/HEADERS - CHAPTER 1
58-5

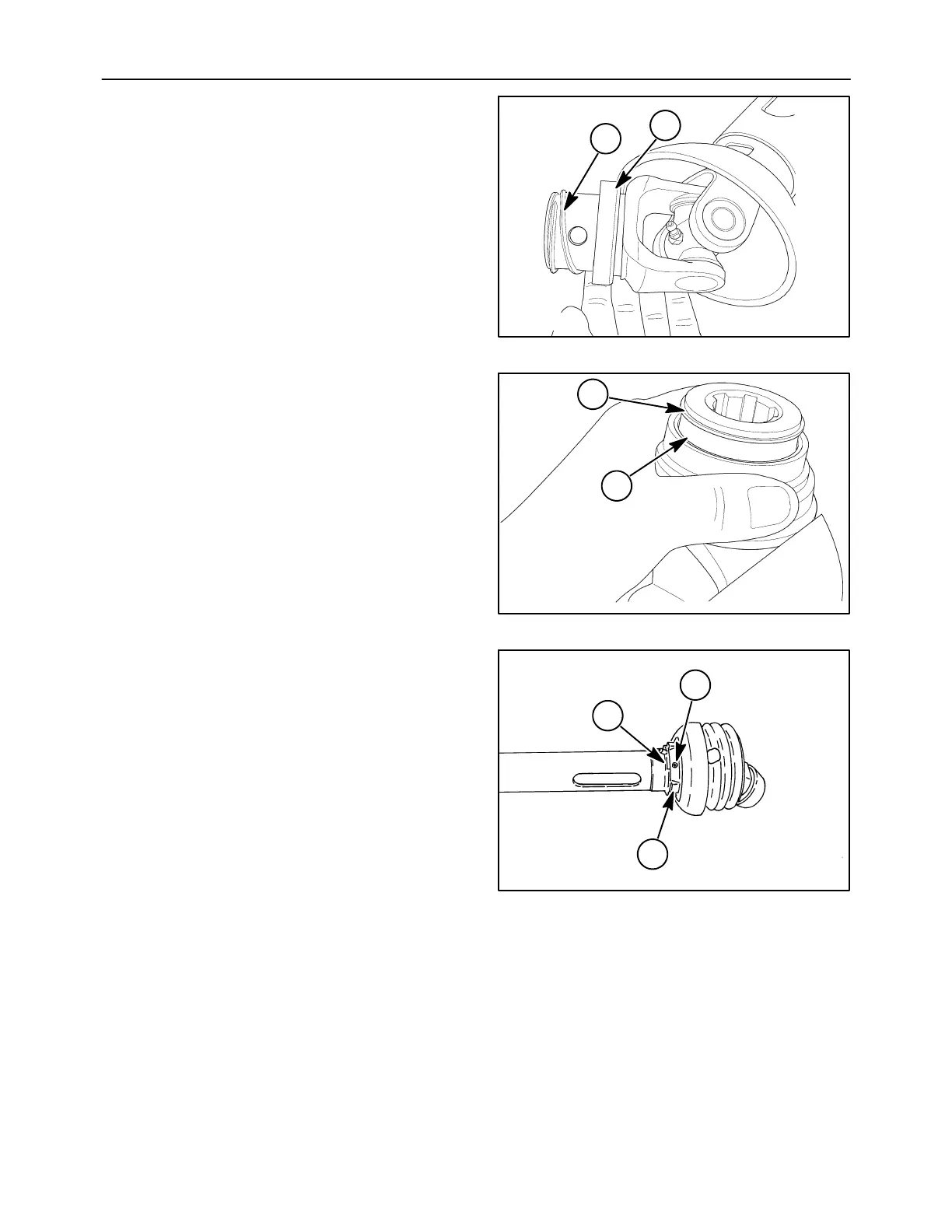

SLIDE LOCK ASSEMBLY
1. Coat the outer surface of the yoke barrel with
grease, push grease into the centering ball
bores. Apply grease to the three centering balls
and insert them into their bores. The grease will
hold them in place.
2. Push the lower retaining collar, 1, and new
spring, 2, over the yoke barrel up to the shoulder.
10008332
1
2
10
3. Fill the inside of the collar cavity with grease.
Slide the collar, 1, over the yoke barrel. Pull the
collar rearward. Install the retaining ring, 2, in the
groove. The collar must slide freely after
assembly.
10008329
2
1
11
SHAFT INSTALLATION
1. Slide the shield onto the PTO shaft. Slide the
shield cone slots, 2, over the tabs, 3, and rotate
the shield cone to lock in place. Install screw, 1,
in shield cone.
2. Slide the two PTO shaft sections together.
20023032
1
2
3
12
