SECTION 58 - ATTACHMENT/HEADERS - CHAPTER 2
58-20

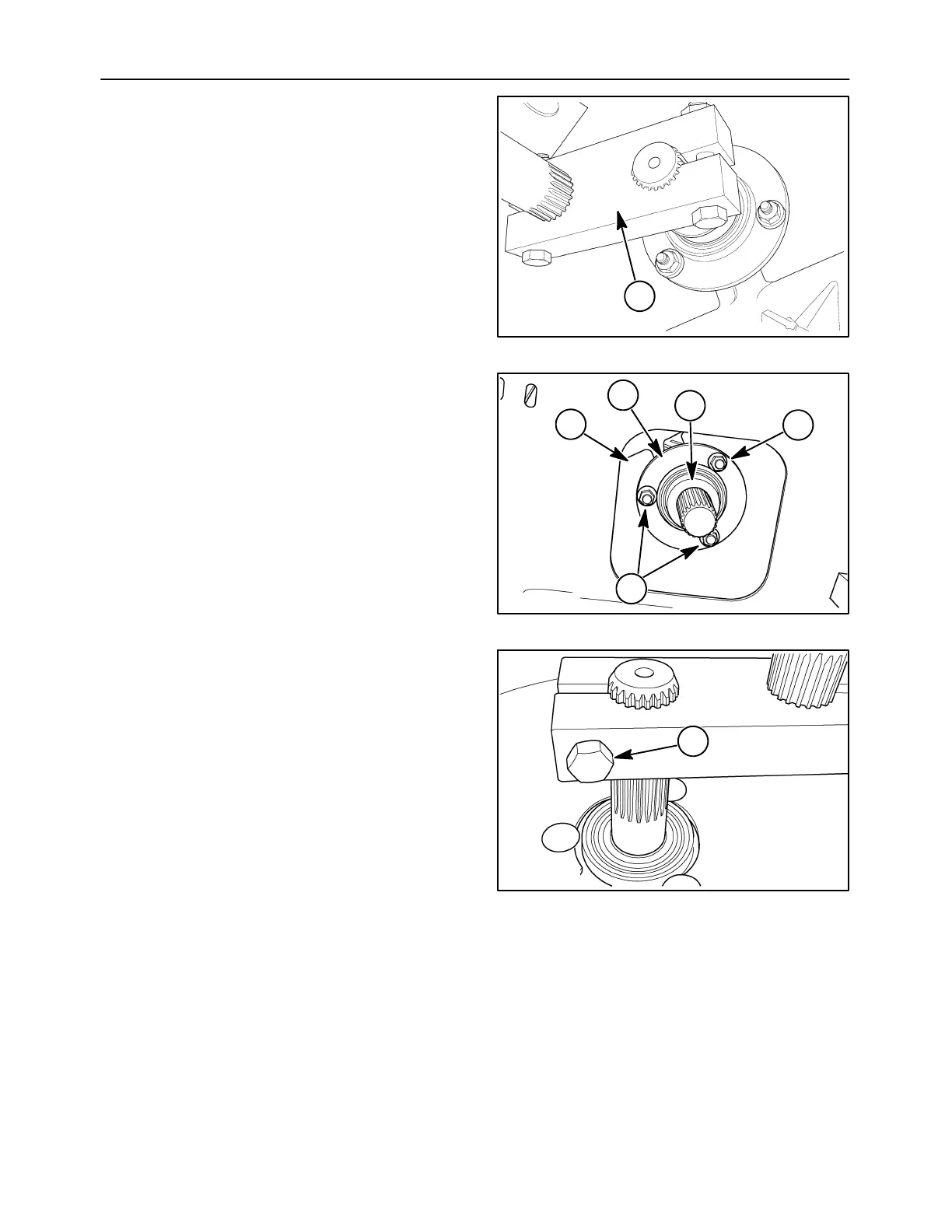

9. Engage the spline end of each shaft into the
clamp block, 1, before it, until all shafts are in
place. Ensure the same position is maintained
throughout the assembly. Loosely attach each
bearing to its mounting plate.
10008319
1
48
10. Lineup the match marks between the locking
collar, 1, bearing, 2, and frame, 3. Insert the shaft
assembly into the auger. Attach the bearing to
the auger using three carriage bolts and nuts, 4.
Tighten all bearing hardware removed to perform
this repair.
10008312
4
4
1
2
3
49
11. Tighten all clamping bolts, 1, that were loosened
to perform this repair.
10007690
1
50
