SECTION 58 - ATTACHMENT/HEADERS - CHAPTER 2
58-22

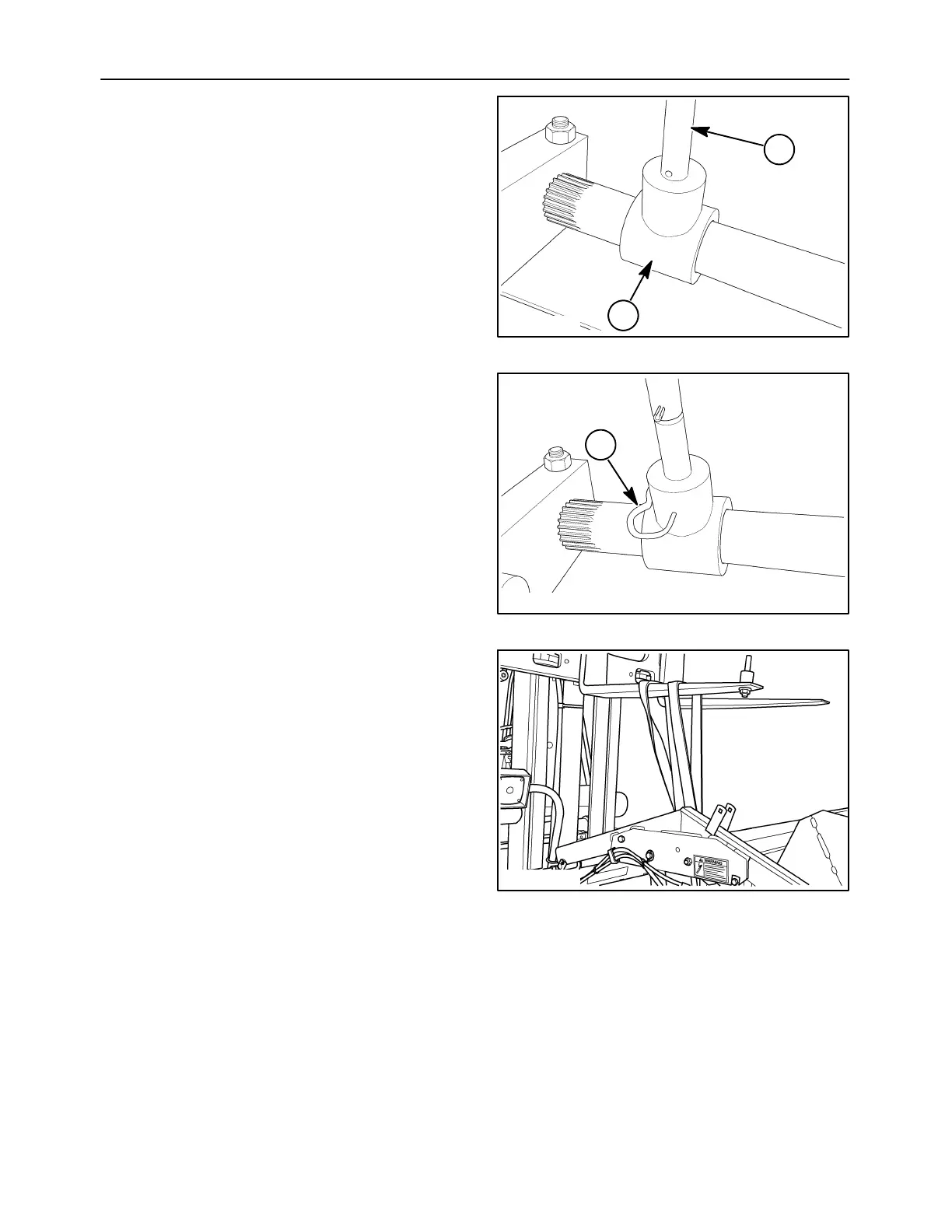

16. Pass a finger, 1, into the auger through the
access hole, and up through the guide. Line up
the cotter pin holes and insert the finger into the
mounting tee, 2.
10008318
2
1
54
17. Install the hairpin cotter, 1, to secure the finger
into place. Repeat for each finger removed.
18. Attach all access covers removed.
19. Remove the tow motor or other lifting device.
10008316
1
55
Starting From the Left Side
1. Rotate the auger until the access panel on the left
side is at the top. Support the weight of the auger
with a tow motor or other suitable lifting device.
10007684
