SECTION 58 - ATTACHMENT/HEADERS - CHAPTER 2
58-23

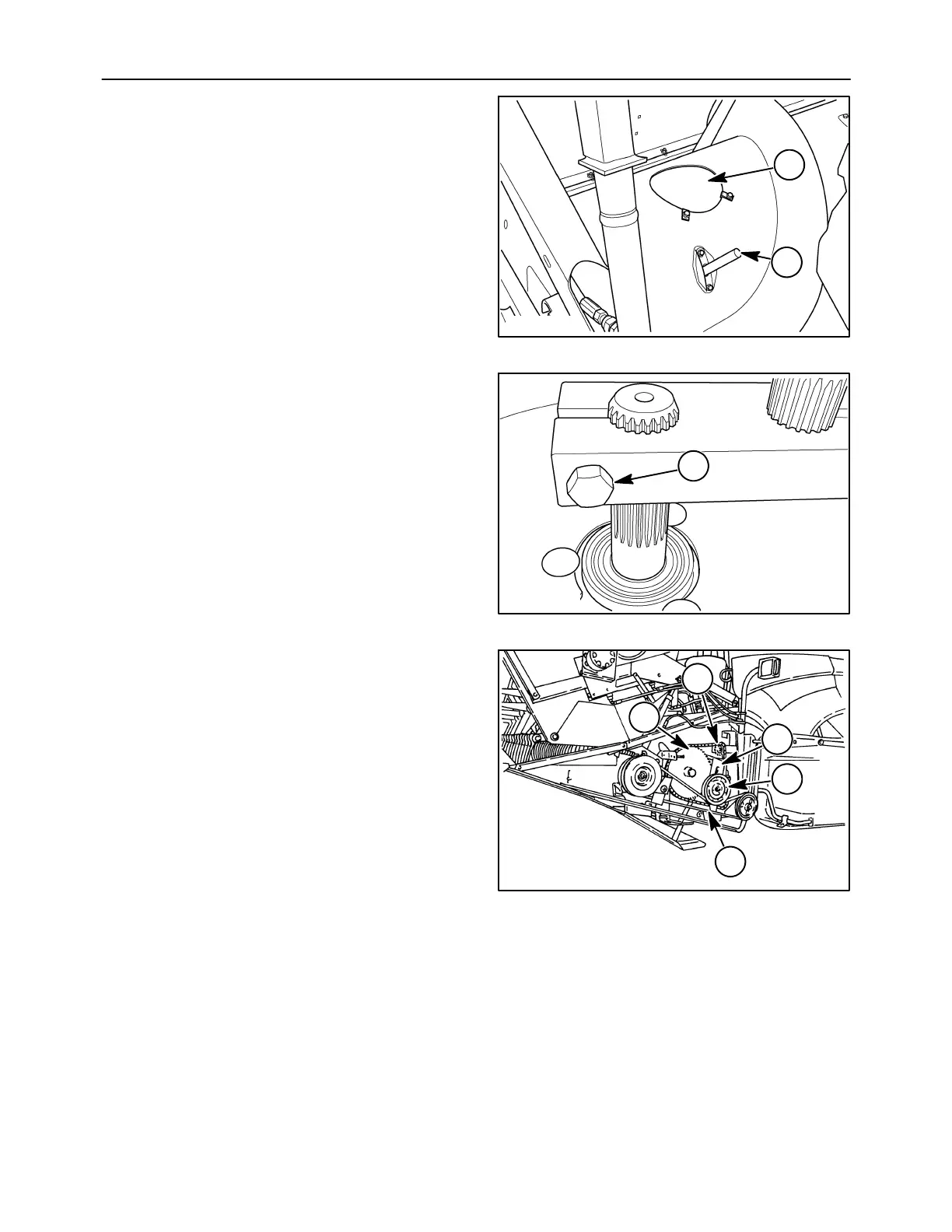

2. Remove the panels, 1, from the auger to gain
access to the finger crankshafts. Remove all
fingers, 2, from the fault area to the left end of the
auger. Clean the shaft splines to the maximum
extent possible and apply a good quality
penetrating fluid.
10007689
1
2
57
3. Loosen all clamping bolts, 1, up to and including
the affected shaft.
10007690
1
58
4. Remove the idler pulley, 1, and drive belt, 2.
5. Remove the idler pulley frame, 3.
6. Loosen the auger drive chain idler sprocket, 4,
and remove the drive chain. Store the chain in a
clean, dry place.
7. Remove the cap screw, lock washer and washer,
and remove sprocket, 5.
20023026
1
2
3
4
5
59
