SECTION 58 - ATTACHMENT/HEADERS - CHAPTER 3
58-5

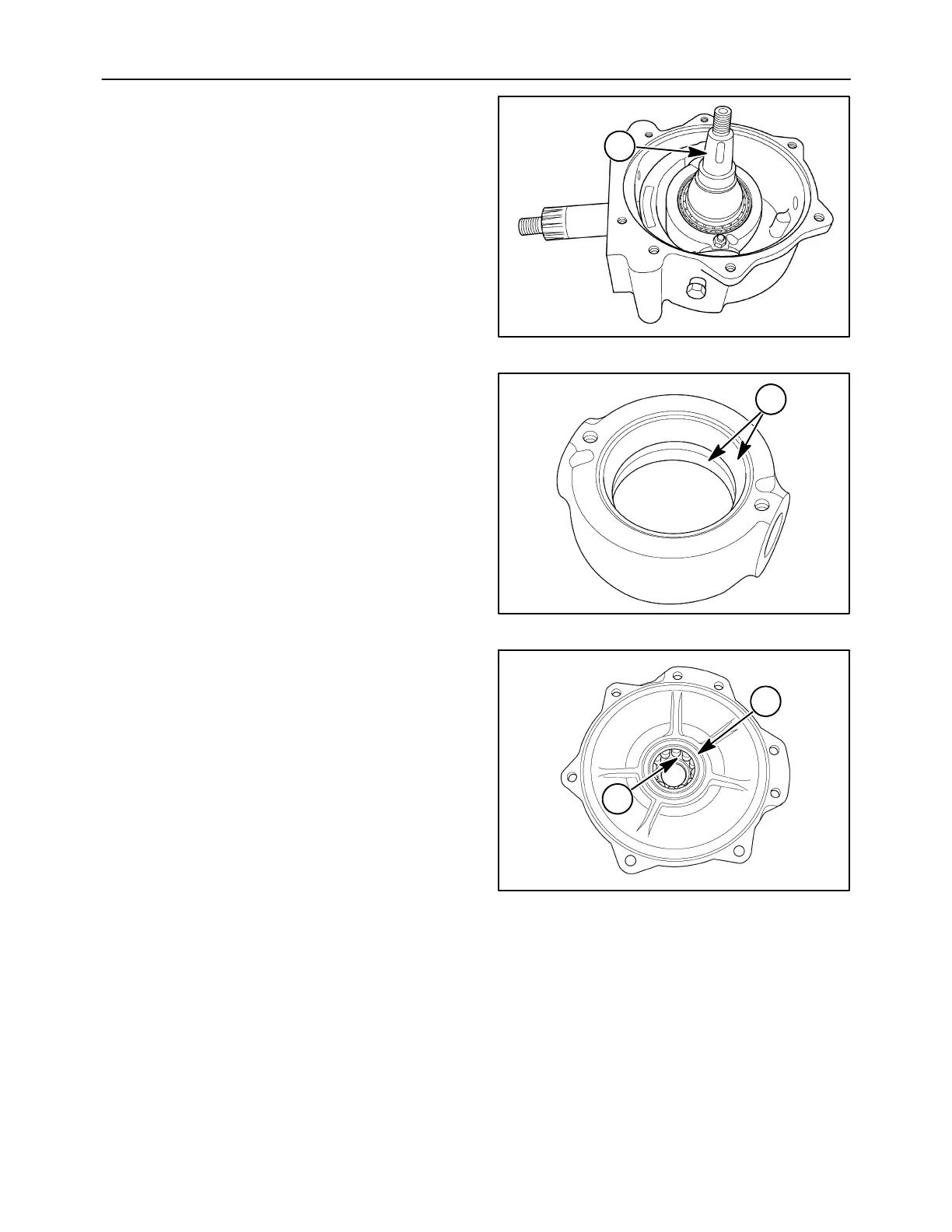

7. Lift the yoke assembly and eccentric, 1, out of the
housing.
10007635
1
9
8. The outer races, 1, of the eccentric bearing
housing can be removed if bearing replacement
is required.
NOTE: Bearings and races must be replaced as a
set.
10007642
1
10
9. Remove the oil seal, 1, from the side cover. The
needle bearings, 2, can be removed if
replacement is required.
NOTE: The needle bearing and race must be
replaced as a set.
10007643
1
2
11
