RADIATOR
Removal
NOTE: Put caps on all fittings and plugs in all
disconnected hoses.
STEP 1
Park the machine on a level surface.
STEP 2
Lift the hood and open the rear access door on the
machine.
STEP 3
Turn the ignition switch and the master disconnect
switch (if equipped) to the OFF position.
STEP 4
Disconnect the negative battery cable from the
battery.
STEP 5

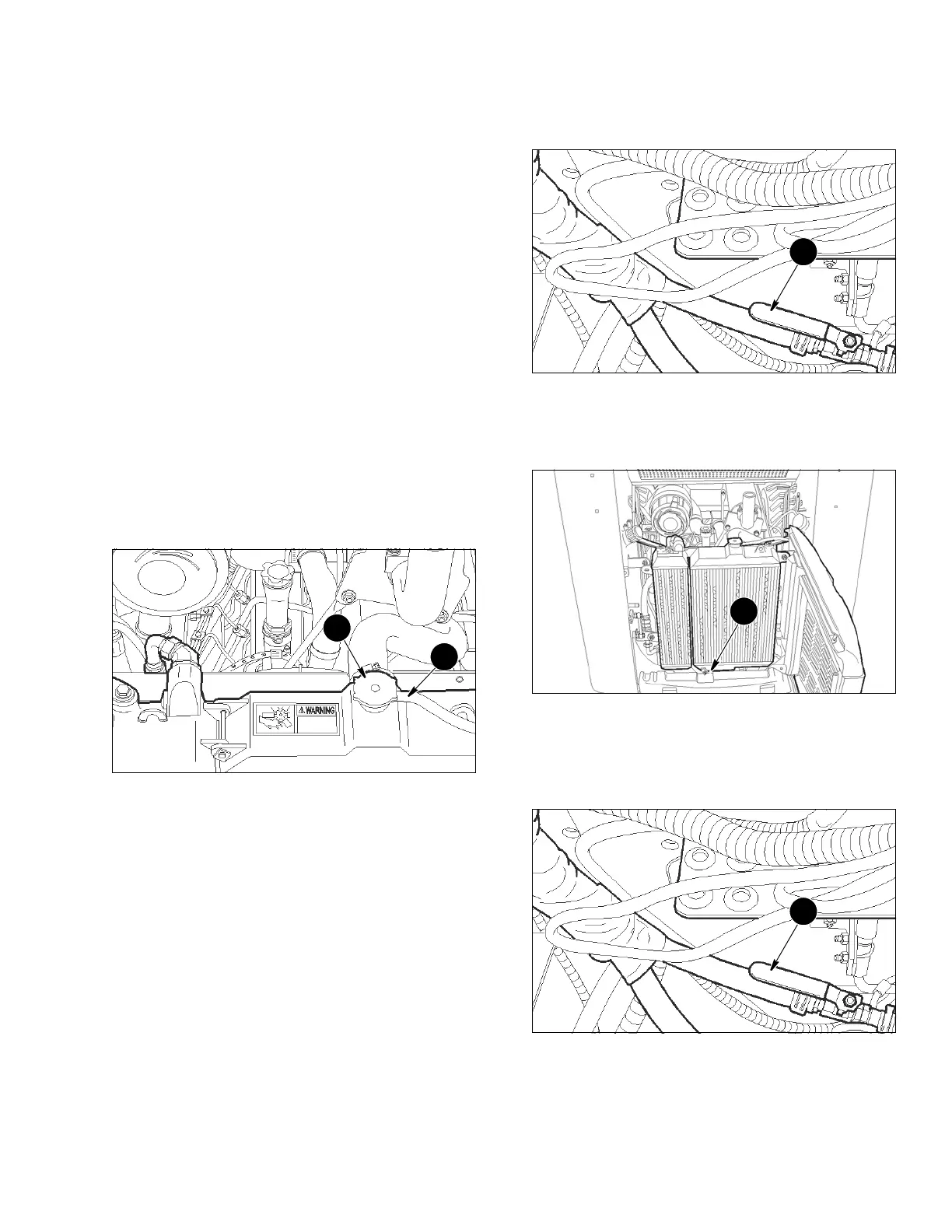

BD07K011-01
Slowly loosen the radiator cap (15). Disconnect the
overflow hose (5) from the radiator neck.
NOTE: Refer to illustration on page 5.
STEP 6
BD07M176-01
If equipped with a heater, open the heater coolant
valve.
STEP 7
BD07K006-01
Install a hose on the drain valve (1) and drain the
radiator into a clean container that holds
approximately 17 litres (4.5 gallons).
STEP 8
BD07M176-01
If equipped with a heater, close the heater coolant
valve (1).
5
15
1
1
1
