2000-4
Bur 5-7650 Issued 12-07 Printed in U.S.A.

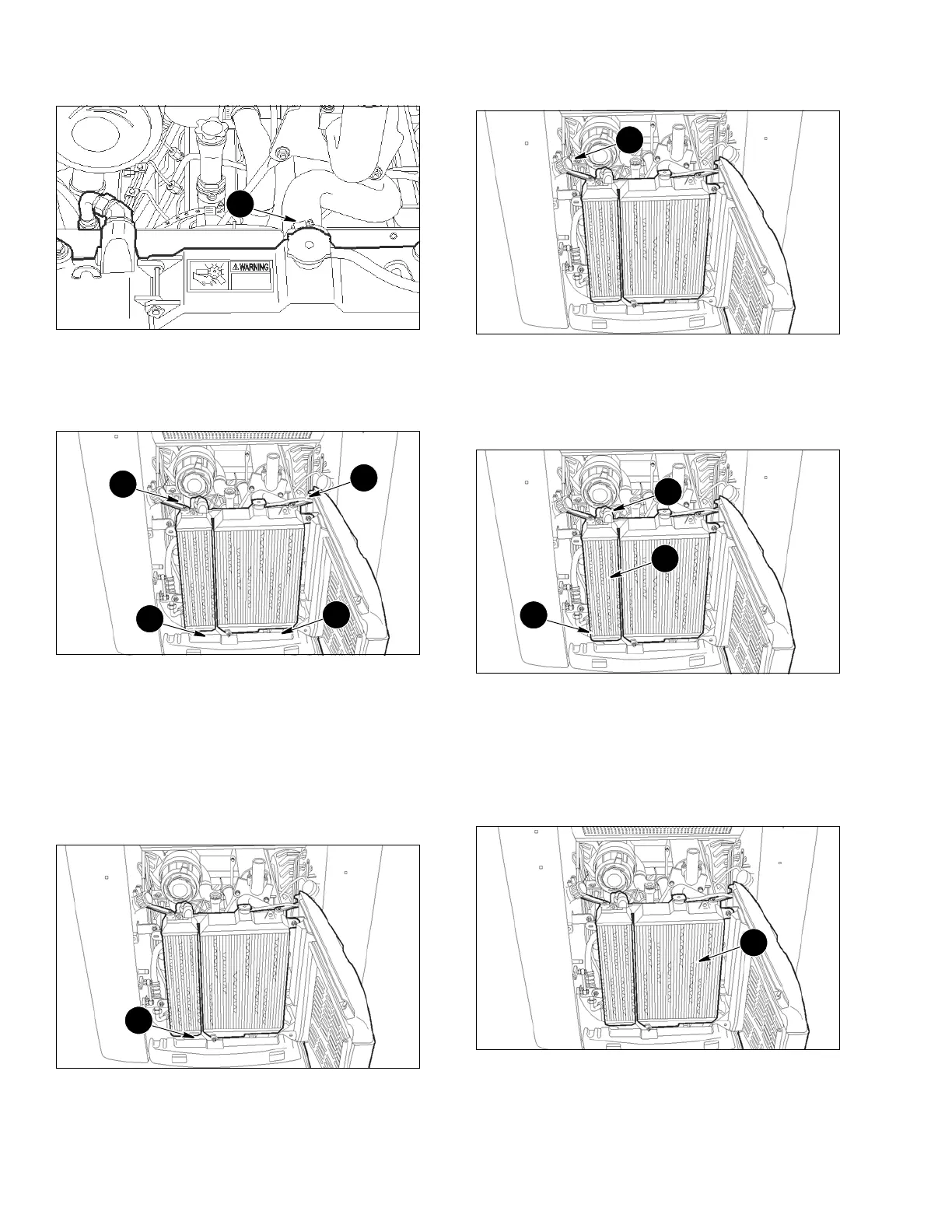

STEP 9
BD07K011-01
Loosen the clamp (1) on the upper radiator hose and
remove the hose from the upper radiator connection.
STEP 10
BD07K006-01
Loosen and remove the top (1) and bottom (2)
mounting bolts on the radiator and oil cooler module.
Use acceptable lifting equipment to support the
radiator and oil cooler module after removal of the
mounting bolts. Pull the radiator and oil cooler
module away from the fan shroud until you can
access the lower radiator hose clamp.
STEP 11
BD07K006-01
Loosen the clamp (4) on the lower radiator hose and
remove the hose from the lower radiator connection.
NOTE: Refer to illustration on page 5.
STEP 12
BD07K006-01
Remove the cap (1) from the hydraulic reservoir.
Connect a vacuum pump to the hydraulic reservoir.
Start the vacuum pump.
STEP 13
BD07K006-01
Loosen and remove the upper (1) and lower (2)
hoses from the oil cooler (3). Install plugs in the
hoses and caps on the fittings to prevent loss of
hydraulic oil from the hydraulic system. Stop the
vacuum pump.
STEP 14
BD07K006-01
Remove the radiator and oil cooler module from the
machine.
1
1
2
1
2
4
1
1
3
2
1
