Engine-Engineandcrankcase

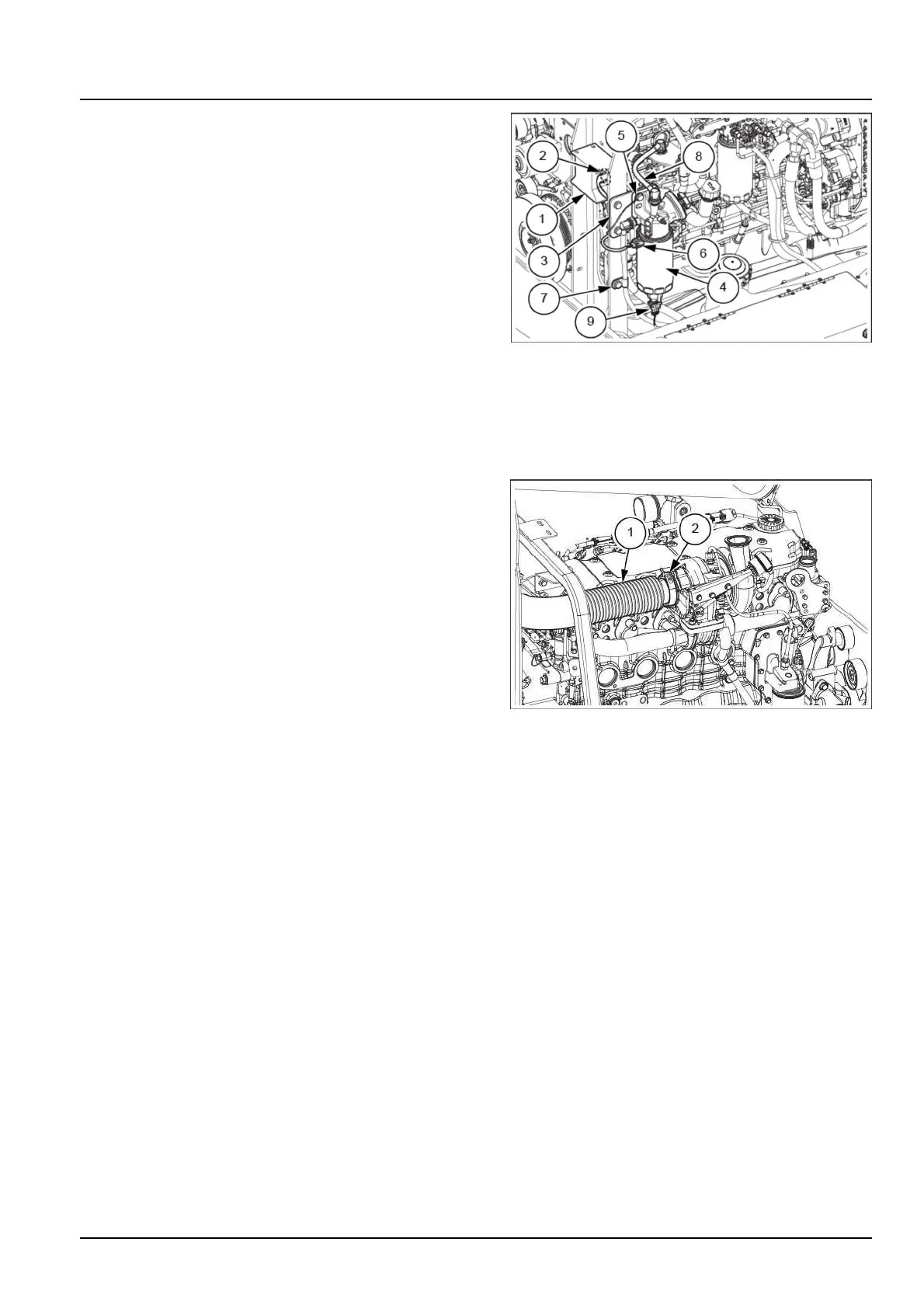

31.Taganddisconnectthefuelpre-ltertoenginehose
(8)fromtheengine.
32.Removetheclamp(7)thatsecuresthefueltanksuc-
tionhosetotherearmufersupport.
33.TaganddisconnecttheWIFconnector(9)andWSH
connector(6)fromthefuelpre-lter(4).
34.Taganddisconnectthefuelpre-lter(4)fromthesup-
portbracket.
TagtheGRD_WIFwire(5).
35.Removethefuelpre-ltersupportbracket(3)fromthe
rearmufersupport.
36.Removethecabletiesthatsecurethewirestotherear
mufersupport.
Taganddisconnectthewires(2)fromthealarm
back-up(1).
Removethealarmback-up(1)fromtherearmufer
support.
LEIL17WHL0055AB32
37.Removetheclamp(2)todisconnecttheendofthe
exhaustsystempipe(1)fromtheengine.
LEIL17WHL0054AB33
48083741_EN31/07/2018
10.1[10.001]/13
