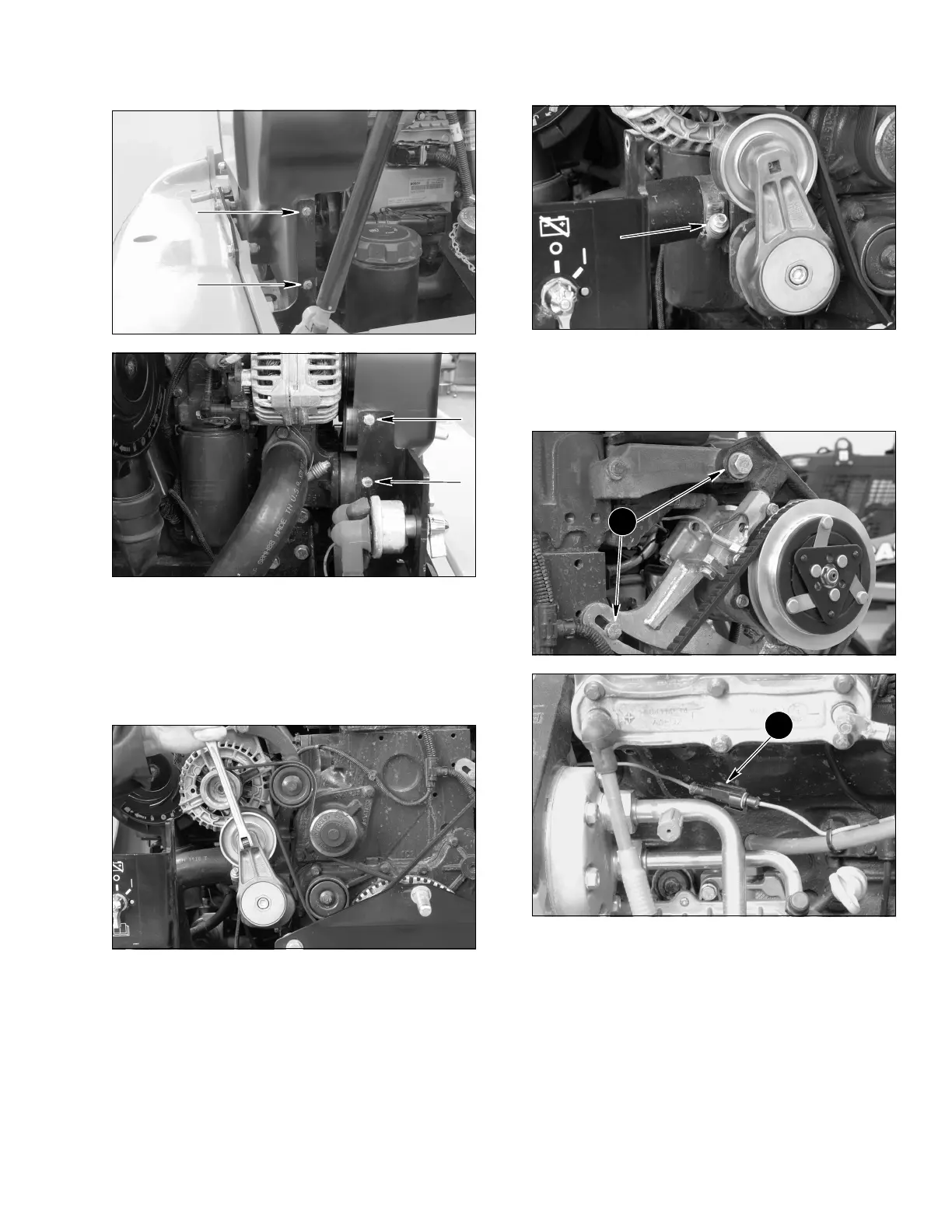

STEP 24
BD07N600-01
BD07N573-01
Remove the four mounting bolts from the belt cover,
remove the cover.
NOTE: After removing the belt cover remove the
cover mounting brackets from the machine frame.
STEP 25
BD07N576-01
Remove the drive belt from the engine.
STEP 26
BD07N577-01
Loosen clamps and remove lower cooler hose from
the engine.
STEP 27
BD07N579-01
BD07N578-01
If loader is equipped with air conditioning, identify,
tag, and disconnect the engine wiring harness
connectors from air compressor clutch connector (1).
Remove the two mounting bolts (2) for the
compressor and set the compressor on the left
battery cover.
2
1
