2000-11
Bur 5-10860 Issued 2-08 Printed in U.S.A.
Installation
BS08A031
STEP 42
If engine rubber isolators require replacement,
remove and discard isolators (3 and 4). Install new
rubber isolator (4), then rubber isolator (3).
STEP 43
Slowly raise engine and move into position over rear
chassis. Be sure all harness connections and hoses
are out of the way then lower engine. Put washer (5)
between front rubber isolator (4) and chassis. Install
washer (2), bolt (1), washer (6), and nut (7) in engine
isolators. Lower engine into position.

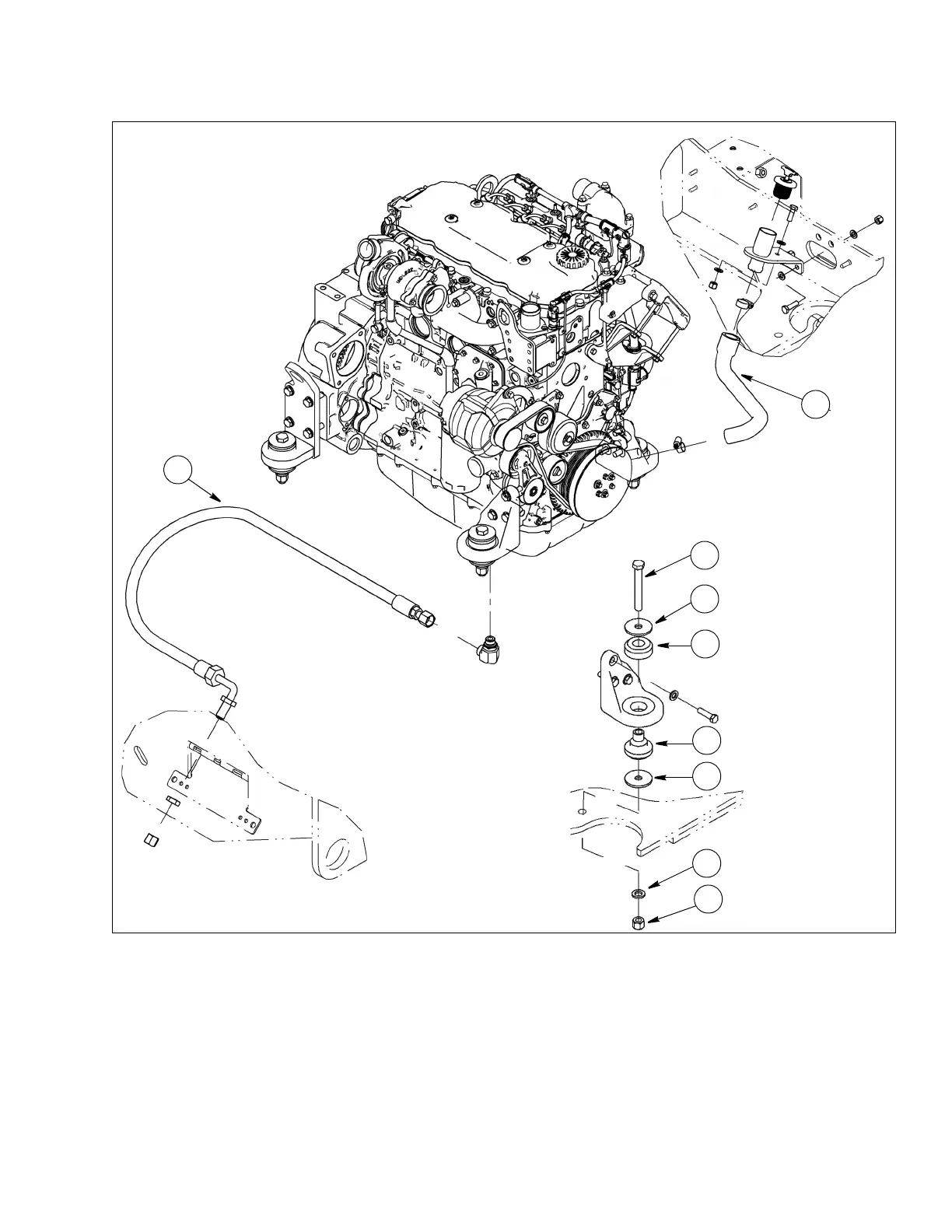

1. ENGINE MOUNT BOLT 3. INSOLATOR UPPER 5. WASHER 7. NUT 9. OIL FILL TUBE
2. WASHER 4. INSOLATOR LOWER 6. WASHER 8. REMOTE OIL DRAIN HOSE
9
5
4
3
1
2
8
7
6
