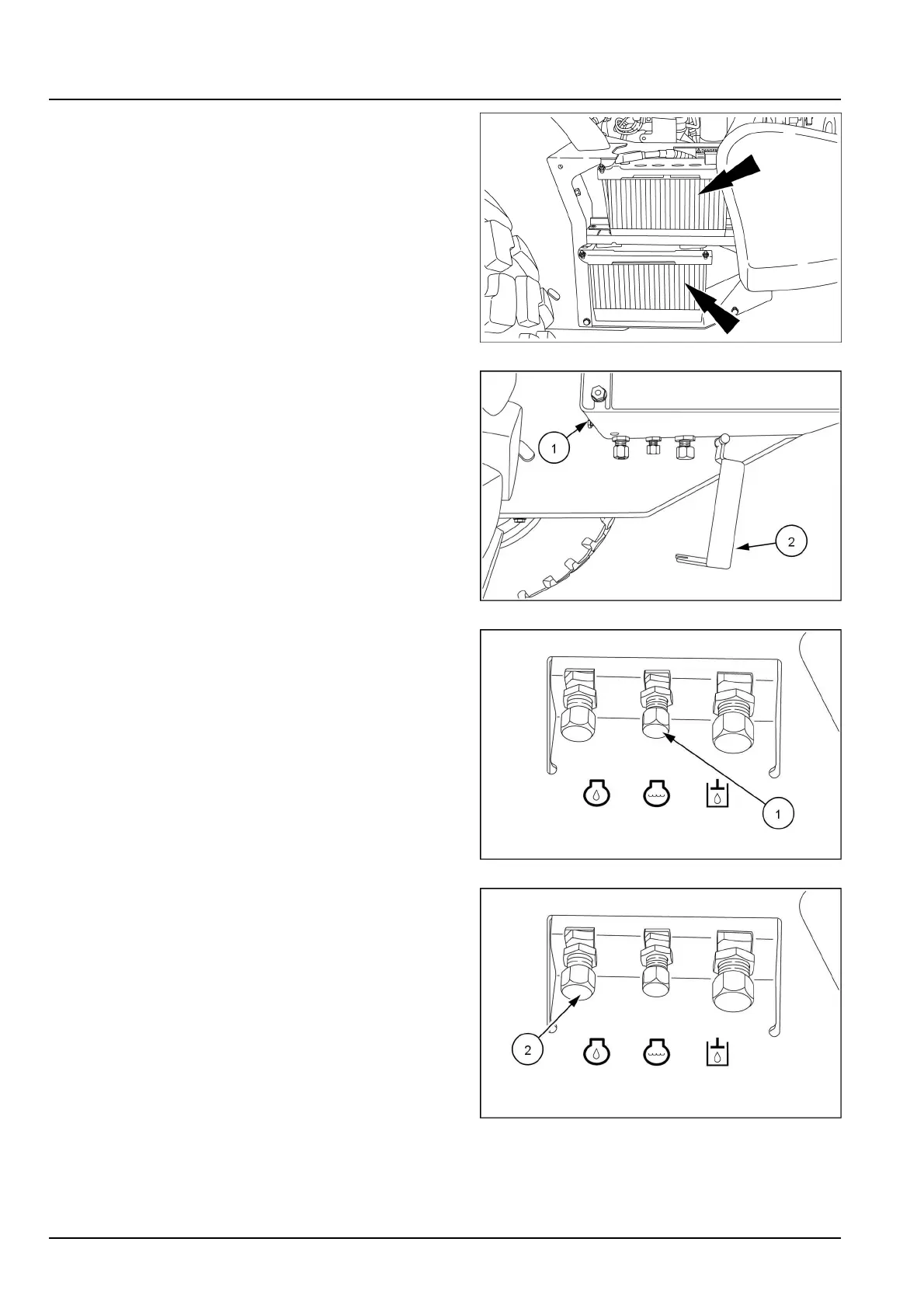

8.Removethetwobatterycovers.Disconnectthebatter-
iesfromthemachine.
LEIL16WHL1225AA8
9.Loosenthescrew(1)andopentheaccesscover(2)
underthebattery.
RAPH12WEL1494AA9
10.Placeasuitablecontainerbelowtheradiatordrain.
Removethedrainplug(1)andradiatorcaptodrain
theenginecoolantintothecontainer.thenreinstall
theradiatorcapafterthecoolanthasdrained.
NOTE:seemachinespecicationsforcoolingsystemvol-
ume.
RAPH12WEL1411AA10
11.Placeasuitablecontainerbelowtheengineoildrain.
Removetheengineoilcap(2)todraintheengineoil
intothecontainer.Thenreinstalltheengineoilcap
aftertheengineoilhasdrained.
NOTE:seemachinespecicationsforcoolingsystemvol-
ume.
NOTE:afterdrainingtheengineoil,disconnectthedrain
hosefromtheframetoaidinremovalofengine.
RAPH12WEL1411AA11
