Engine-Engineandcrankcase

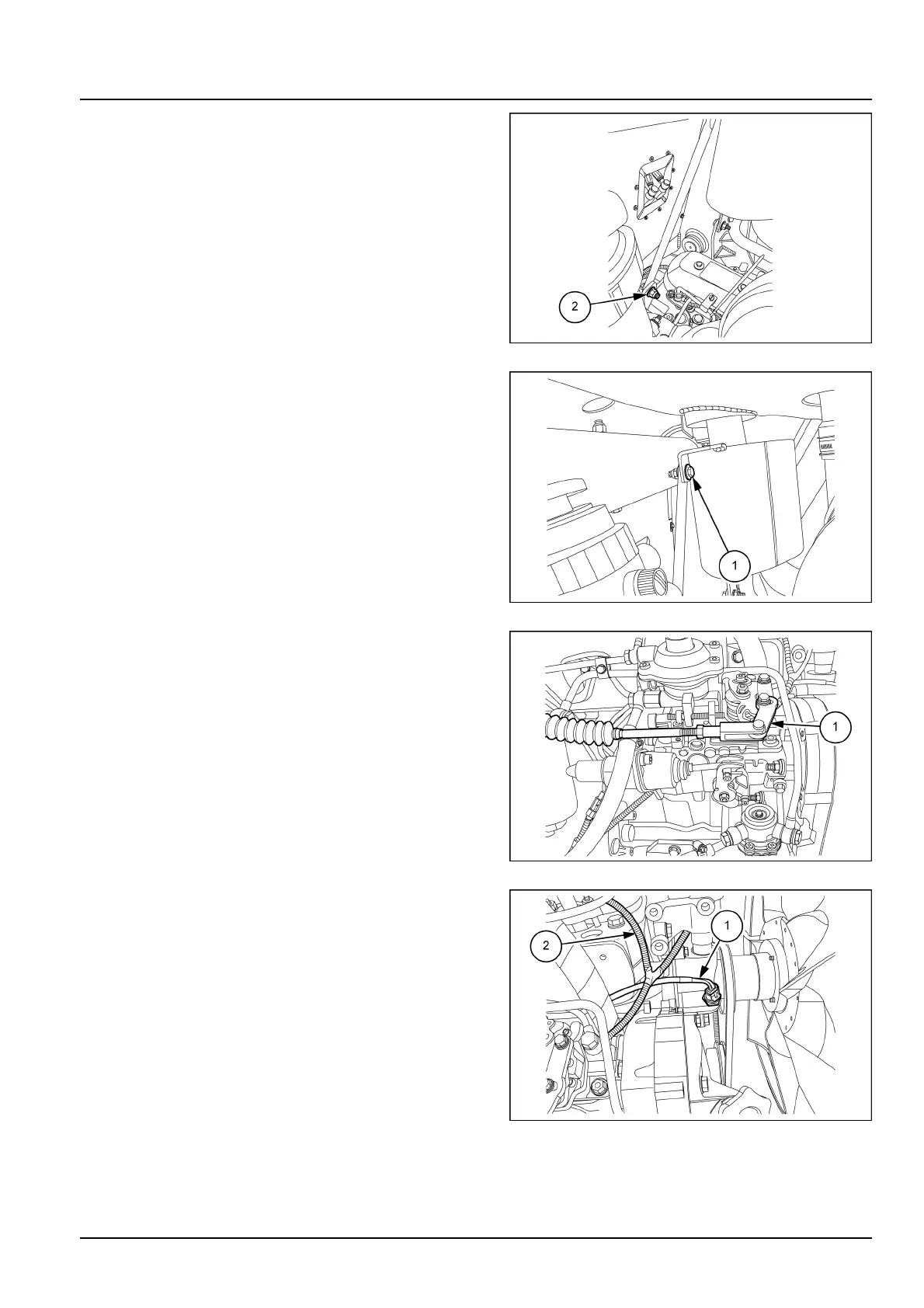

4.Removethemufersupportbracketbolt(2).
PTIL13TLB0957AB3
5.Removethebolt(1)andthemuferassemblyfromthe
engine.
PTIL13TLB0958AB4
6.Disconnectthethrottlelinkage(1)fromthepumpand
setitaside.
PTIL13TLB0954AB5
7.Disconnectthecoolanttemperature(1),alternator,oil
pressure(2)andstarterconnectorsfromengine.
Removethestarter.
RefertoEnginestarter-Remove(55.201).
PTIL13TLB0955AB6
5152334931/08/2018
10.1[10.001]/5
