Case 570ST - Engine Installation Procedure

Engine-Engineandcrankcase
Engine-Install
Ifapplicable,removecapsandplugsfrompreviously
disconnectedhosesandttings.Removeidentication
tagsaftermakingthehoseandwireconnections.
NOTE:Thephotosinthisproceduremaybedifferentfrom
yourmachineandareforreferenceonly.

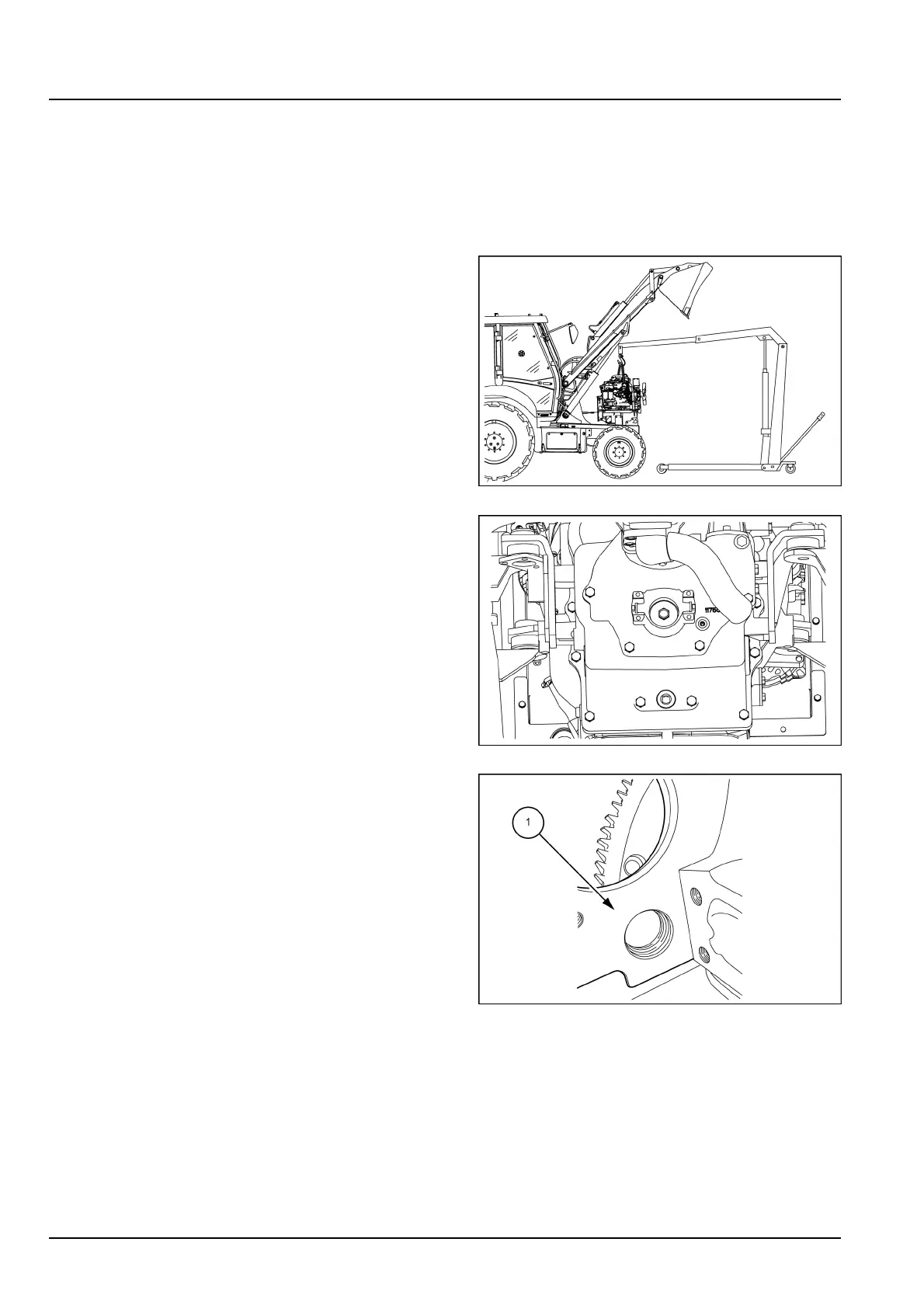

1.Positiontheengineinthemachine.
NOTICE:Makesurethattheexplate/converterassembly
staysinplaceonthetransmission.
PTIL14TLB0126AA1
2.Installandtightentheatwashersandcapscrewsse-
curingthetransmissiontotheengine.
Tightencapscrewstoatorqueof52-57N·m(38
-42lbft).
Installandtightenthefrontenginemountingbolts,at
washers,andnuts.
Tightentheself-lockingnutstoatorqueof90-
100N·m(66-74lbft).
3.Disconnecttheliftingequipmentfromtheliftingeyeson
theengine.
PTIL13TLB0730AA2
4.Tightenthecapscrewsthroughtheaccessinthey-
wheelhousing(1)andfastentheywheeltotheex
plate.Tightencapscrewstoatorqueof52-57N·m
(38-42lbft)whenxingthetorqueconverter.
5.Installtheaccesscovertothebellhousing.
Tightenittoatorquevalueof52-57N·m(38-
42lbft).
6.Installthestarterontotheengine.
Tightenittoatorquevalueof40N·m(29lbft).
RefertoEnginestarter-Install(55.201).
PTIL13TLB1470AA3
4804855616/09/2016
10.1[10.001]/6
