Engine-Engineandcrankcase

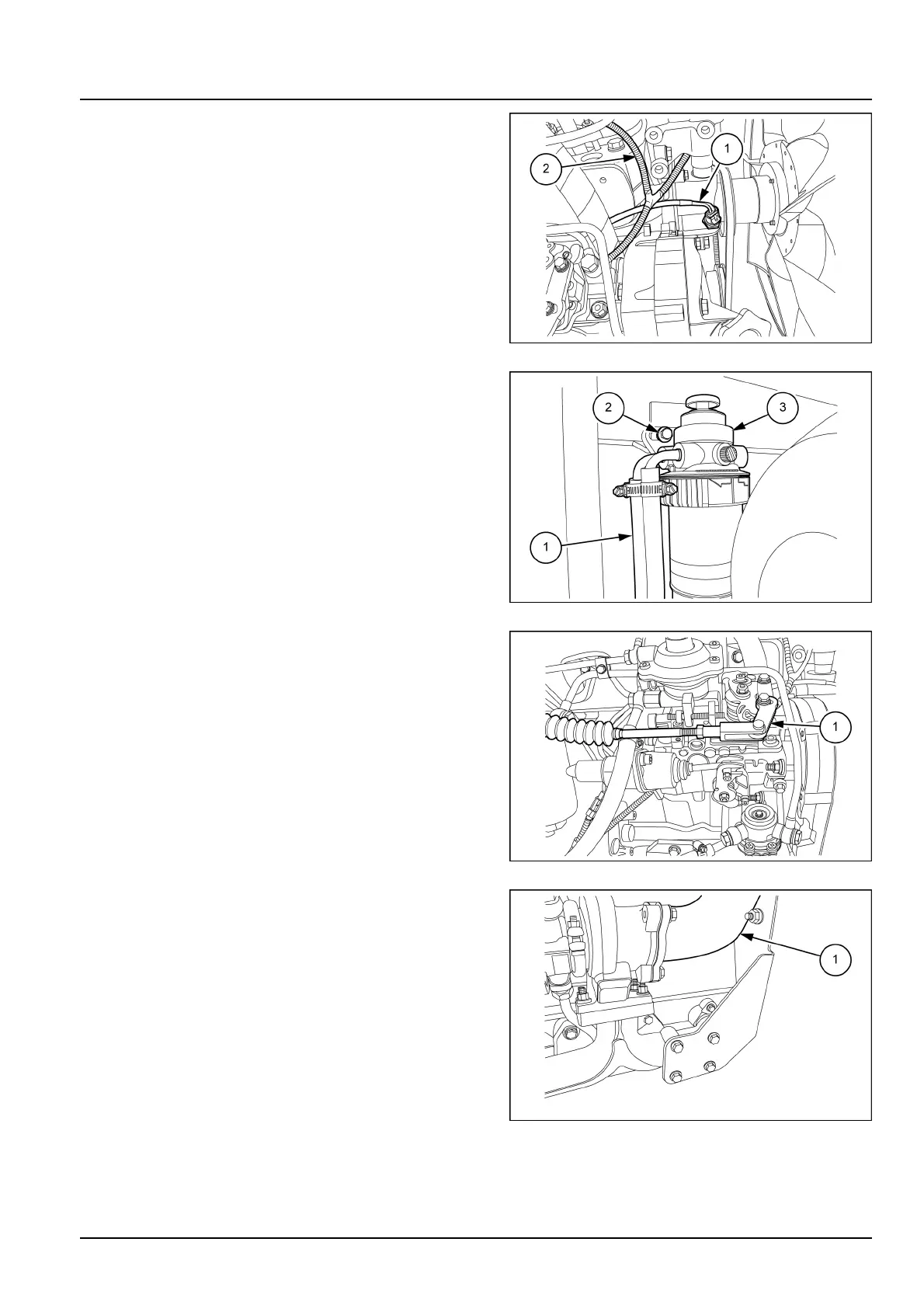

7.Connectthecoolanttemperature(1),alternator,oil
pressure(2)connectors.
PTIL13TLB0955AB4
8.Connectthefuelreturnandinletlines(1)andmount
thefuellterassembly(3)bytighteningthemounting
bolts(2).
PTIL13TLB0953AB5
9.Connectthethrottlerod(1).
10.Connectthethrottlecablefromthemountingbracket.
11.Connecttheelectricalconnectorfortheoilpressure
switch.
PTIL13TLB0954AB6
12.Installtheexhaustpipe(1)oftheturbochargertothe
muferend.
Tightenittoatorquevalueof6.5-7.5N·m(4.8-
5.5lbft).
PTIL13TLB0956AB7
