Case 580SLE - Engine and Radiator Specifications and Tools

2000-2
Cre 7-79471GB Issued 03-00
TABLE OF CONTENTS
SPECIFICATIONS.................................................................................................................................................... 2
SPECIAL TORQUE SETTINGS............................................................................................................................... 2
TOOLS REQUIRED ................................................................................................................................................. 2
REMOVING THE RADIATOR .................................................................................................................................. 3
REMOVING THE ENGINE....................................................................................................................................... 6
RADIATOR INSTALLATION .................................................................................................................................. 15
RADIATOR SHROUD ............................................................................................................................................ 16
FRONT ENGINE MOUNT INSTALLATION............................................................................................................ 17
INSTALLING THE ENGINE FRONT BRACKET .................................................................................................... 18
SPECIFICATIONS
Cooling system capacity :
With heater............................................................................................................................................. 16.5 litres
Without heater........................................................................................................................................ 15.8 litres
Thermostat opening
Begins to open ...............................................................................................................................................83°C
Fully open at...................................................................................................................................................95°C
Radiator cap opening pressure ...........................................................................................................................1 bar
Coolant solution.............................................................................................................................. See Section 1002
SPECIAL TORQUE SETTINGS
Front engine bracket self-locking nuts..................................................................................................... 41 to 47 Nm
Torque converter retaining screws .......................................................................................................... 52 to 57 Nm
Engine front bracket retaining screws ................................................................................................... 89 to 107 Nm
TOOLS REQUIRED

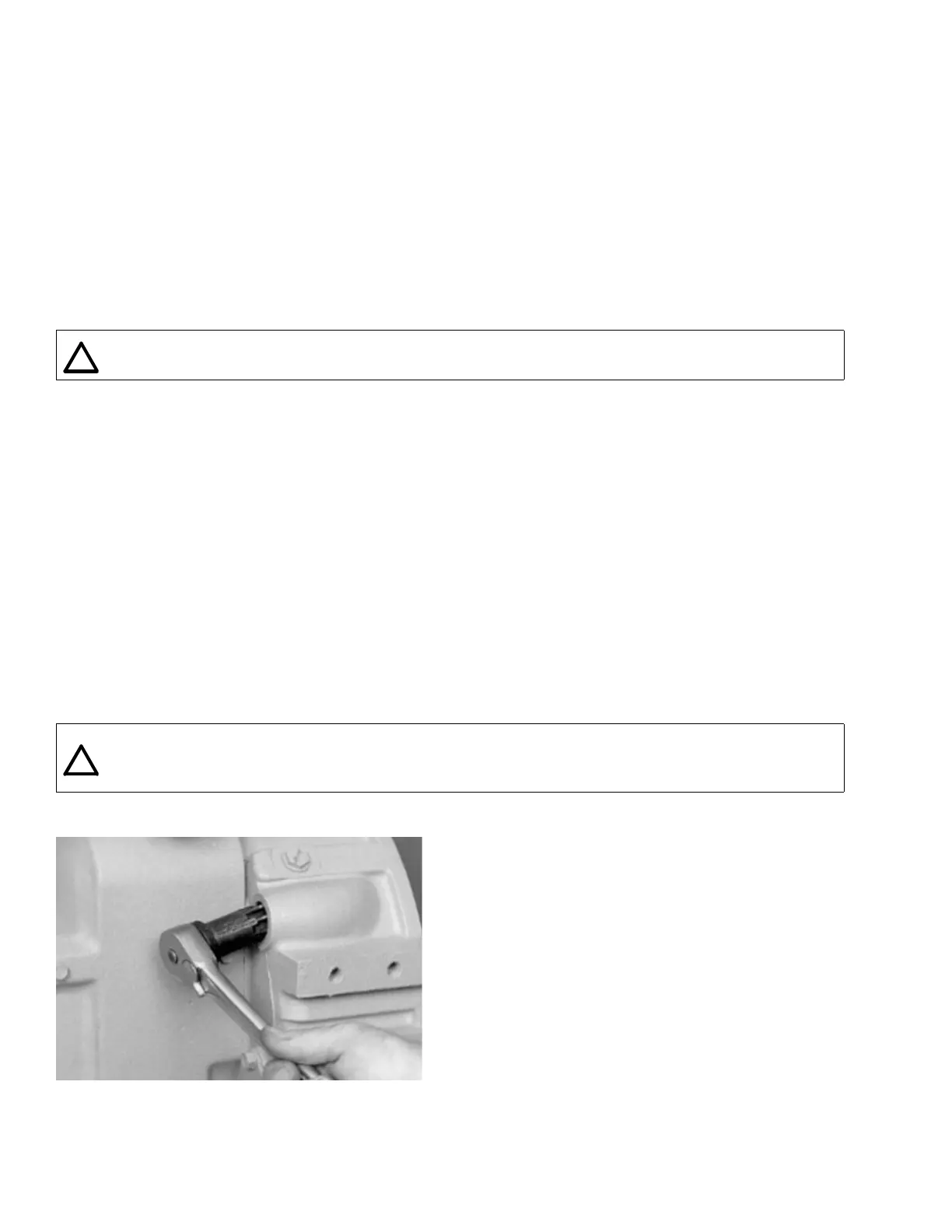

T91222
CAS 1690 Engine turn-over tool
WARNING: This symbol is used in this manual to show important safety messages. Whenever you see this
symbol, carefully read the message which follows, since it shows there is a risk of serious injury.
!
WARNING: Boiling coolant solution may escape if the radiator cap is removed while the system is still hot.
To remove the cap. First allow the system to cool, then turn the cap to the first notch and wait until there is
no more pressure. Then remove the cap.
!
