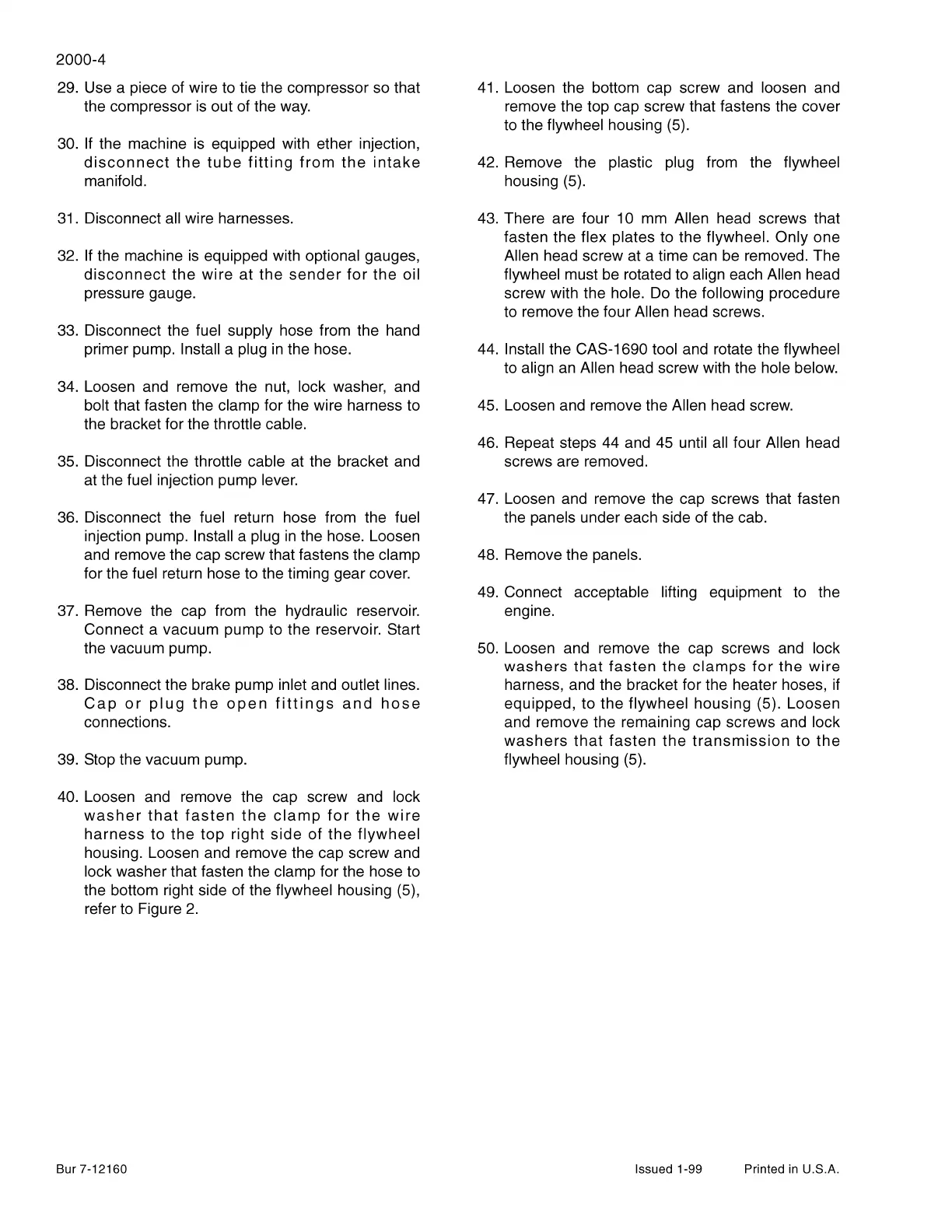

29. Use a piece of wire to tie the compressor so that
the compressor is out of the way.
30. If the machine is equipped with ether injection,
disconnect the tube fitting from the intake
manifold.
31. Disconnect all wire harnesses.
32. If the machine is equipped with optional gauges,
disconnect the wire at the sender for the oil
pressure gauge.
33. Disconnect the fuel supply hose from the hand
primer pump. Install a plug in the hose.
34. Loosen and remove the nut, lock washer, and
bolt that fasten the clamp for the wire harness to
the bracket for the throttle cable.
35. Disconnect the throttle cable at the bracket and
at the fuel injection pump lever.
36. Disconnect the fuel return hose from the fuel
injection pump. Install a plug in the hose. Loosen
and remove the cap screw that fastens the clamp
for the fuel return hose to the timing gear cover.
37. Remove the cap from the hydraulic reservoir.
Connect a vacuum pump to the reservoir. Start
the vacuum pump.
38. Disconnect the brake pump inlet and outlet lines.
Cap or plug the open fittings and hose
connections.
39. Stop the vacuum pump.
40. Loosen and remove the cap screw and lock
washer that fasten the clamp for the wire
harness to the top right side of the flywheel
housing. Loosen and remove the cap screw and
lock washer that fasten the clamp for the hose to
the bottom right side of the flywheel housing (5),
refer to Figure 2.
Bur 7-12160
41 . Loosen the bottom cap screw and loosen and
remove the top cap screw that fastens the cover
to the flywheel housing (5).
42. Remove the plastic plug from the flywheel
housing (5).
43. There are four 10 mm Allen head screws that
fasten the flex plates to the flywheel. Only one
Allen head screw at a time can be removed. The
flywheel must be rotated to align each Allen head
screw with the hole. Do the following procedure
to remove the four Allen head screws.
44. Install the CAS-1690 tool and rotate the flywheel
to align an Allen head screw with the hole below.
45. Loosen and remove the Allen head screw.
46. Repeat steps 44 and 45 until all four Allen head
screws are removed.
47. Loosen and remove the cap screws that fasten
the panels under each side of the cab.
48. Remove the panels.
49. Connect acceptable lifting equipment to the
engine.
50. Loosen and remove the cap screws and lock
washers that fasten the clamps for the wire
harness, and the bracket for the heater hoses, if
equipped, to the flywheel housing (5). Loosen
and remove the remaining cap screws and lock
washers that fasten the transmission to the
flywheel housing (5).
