2000-5
GS98K004

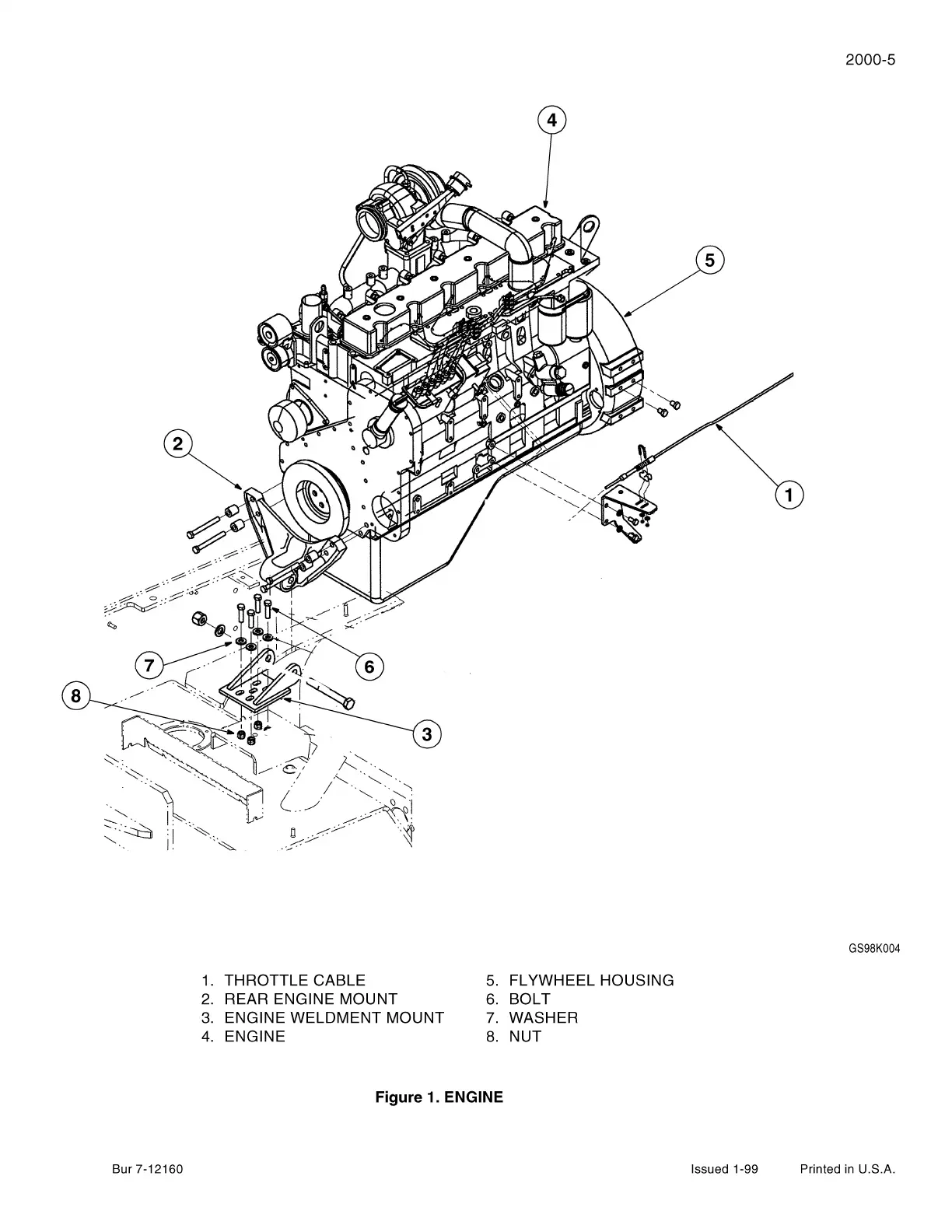

1. THROTTLE CABLE 5. FLYWHEEL HOUSING
2. REAR ENGINE MOUNT 6. BOLT
3. ENGINE WELDMENT MOUNT 7. WASHER
4. ENGINE 8. NUT
Figure 1. ENGINE
Bur 7-12160 Issued 1-99 Printed in U.S.A.
