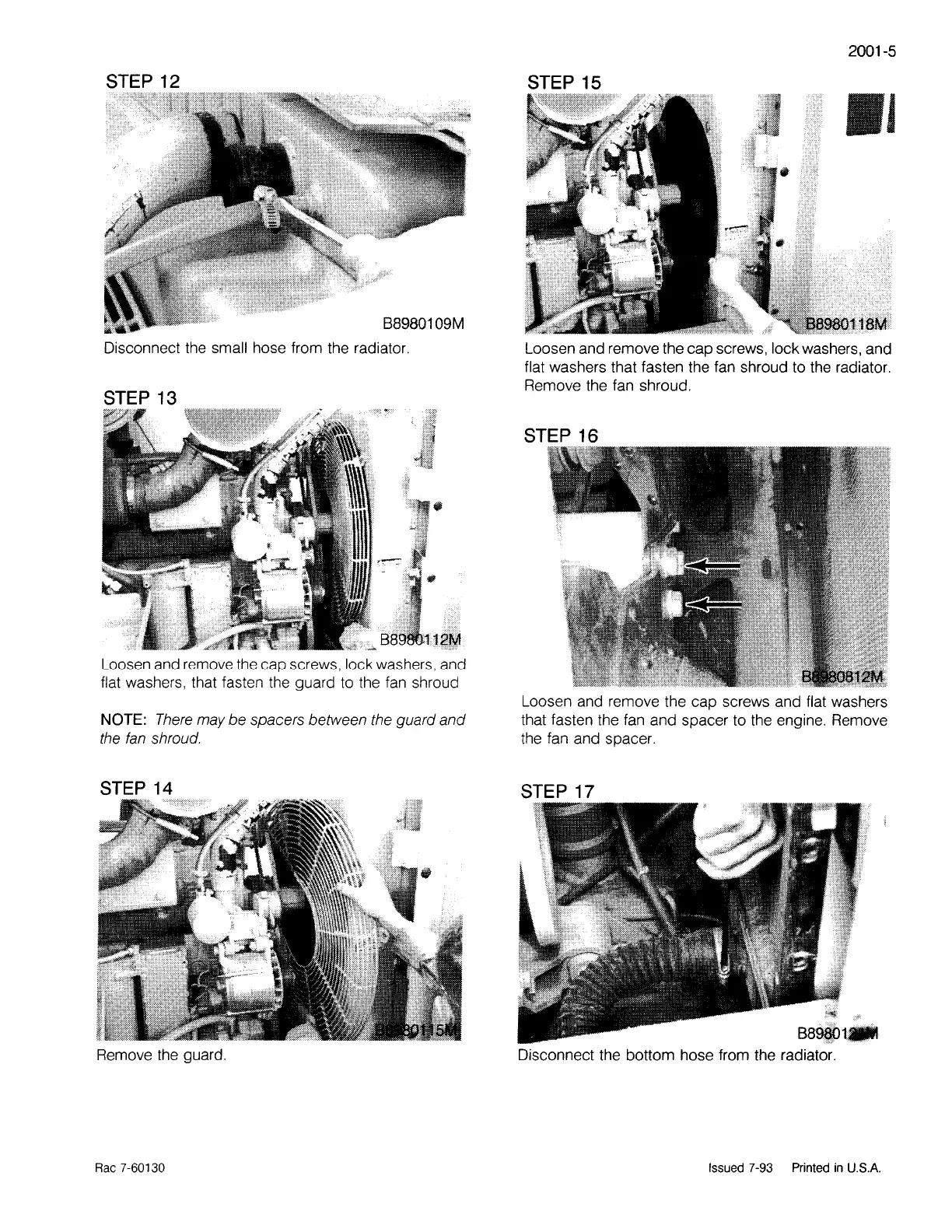

STEP 12
B8980109M
Disconnect the small hose from the radiator.
STEP 13
Loosen and remove the cap screws, lock washers, and
flat washers, that fasten the guard to the
fan
shroud
NOTE: There may
be
spacers between the guard
and
the
fan
shroud.
STEP 14
Remove the guard.
Rae
7-60130
2001-5
STEP 15
Loosen and remove the cap screws, lock washers, and
flat washers that fasten the fan shroud to the radiator.
Remove the fan shroud.
STEP 16
Loosen and remove the cap screws and flat washers
that fasten the
fan
and spacer to the engine. Remove
the fan and spacer.
STEP 17
Disconnect the bottom hose from the radiator.
Issued
7-93
Printed
in
U.S.A.
