2001-11

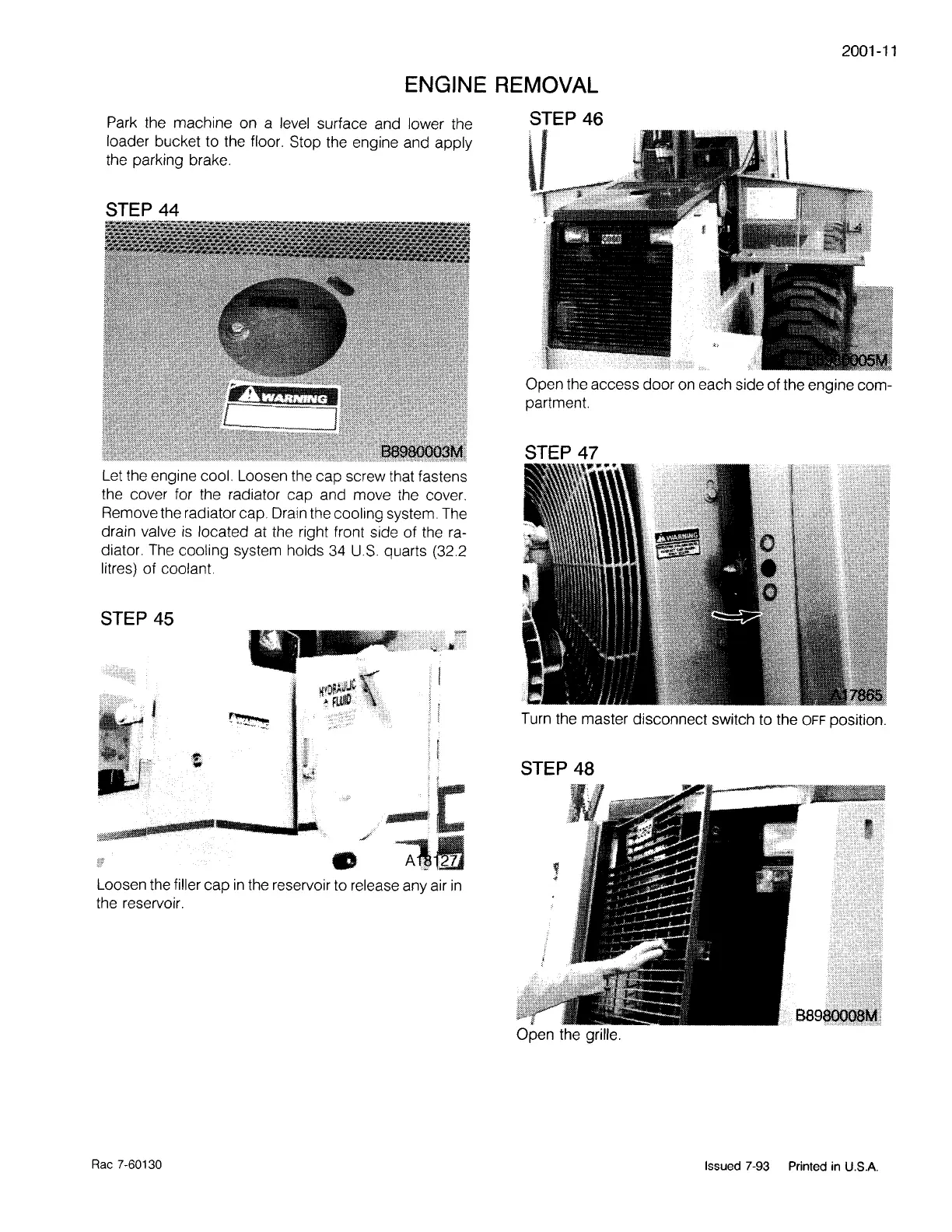

ENGINE REMOVAL
Park the machine on a level surface and lower the
loader bucket to the floor. Stop the engine and apply
the parking brake.
STEP 44
Let
the engine cool. Loosen the cap screw that fastens
the cover for the radiator cap and move the cover.
Remove the radiator cap. Drain the cooling system.
The
drain valve
is
located at the right front side of
the
ra-
diator.
The
cooling system holds
34
U.S.
quarts (32.2
litres) of coolant.
STEP 45
•
Loosen the filler cap
in
the reservoir to release any air
in
the reservoir.
Rae 7-60130
STEP 46
Open the access door
on
each side of the engine com-
partment.
STEP 47
Turn the master disconnect switch to the
OFF
position.
STEP 48
Open the grille.
Issued
7-93
Printed
in
U.S.A.
