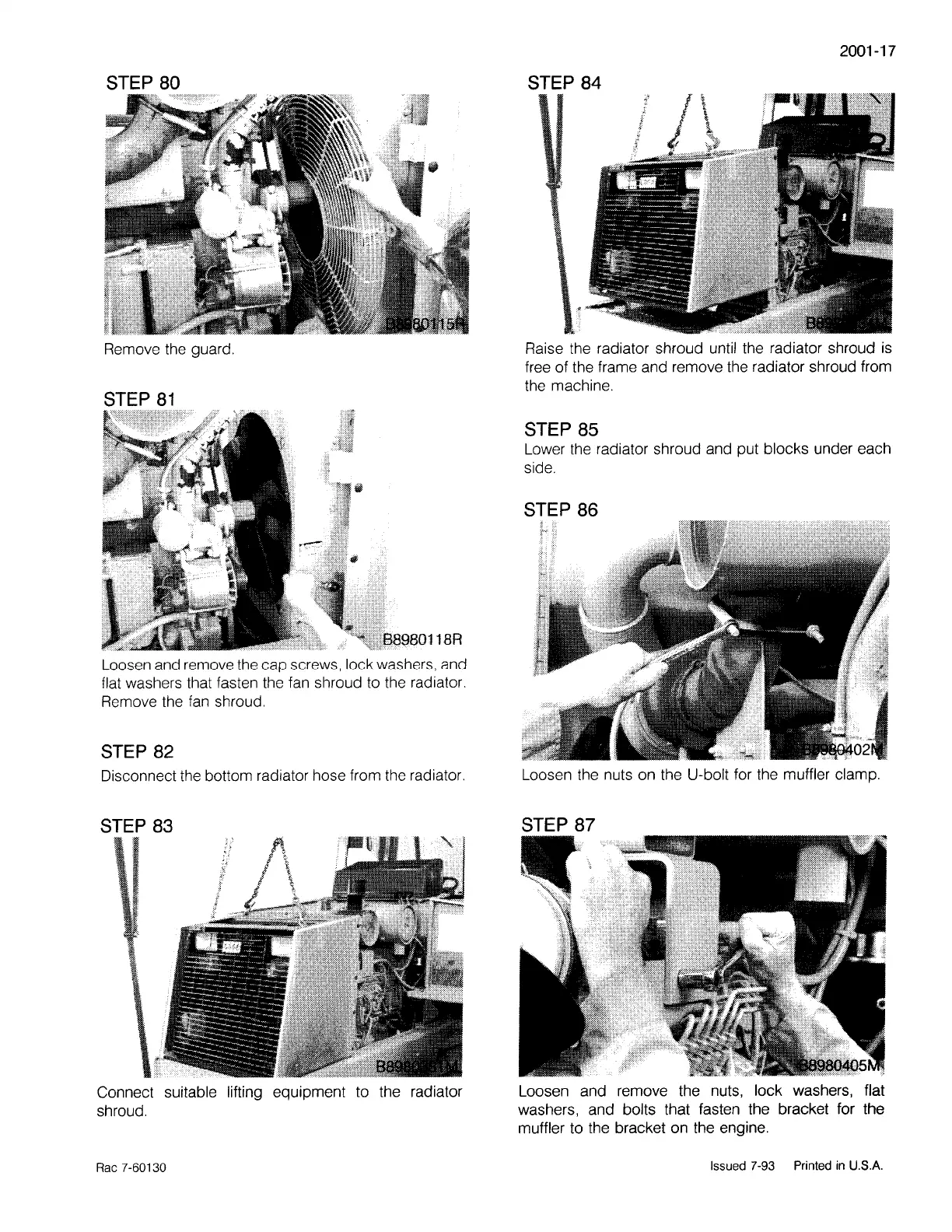

STEP 80
Remove
the
guard.
STEP
81
. 980118R
Loosen and remove the cap screws, lock washers, and
flat washers that fasten the
fan
shroud to the radiator.
Remove the
fan
shroud.
STEP 82
Disconnect
the
bottom radiator hose from the radiator.
STEP 83
Connect suitable lifting equipment to the radiator
shroud.
Rae
7-60130
2001-17
STEP 84
Raise the radiator shroud until
the
radiator shroud
is
free of the frame and remove the radiator shroud from
the
machine.
STEP 85
Lower the radiator shroud and put blocks under each
side.
STEP 86
Loosen the nuts on the U-bolt for the muffler clamp.
STEP 87
Loosen and remove the nuts, lock washers, flat
washers, and bolts that fasten the bracket for the
muffler to the bracket on the engine.
