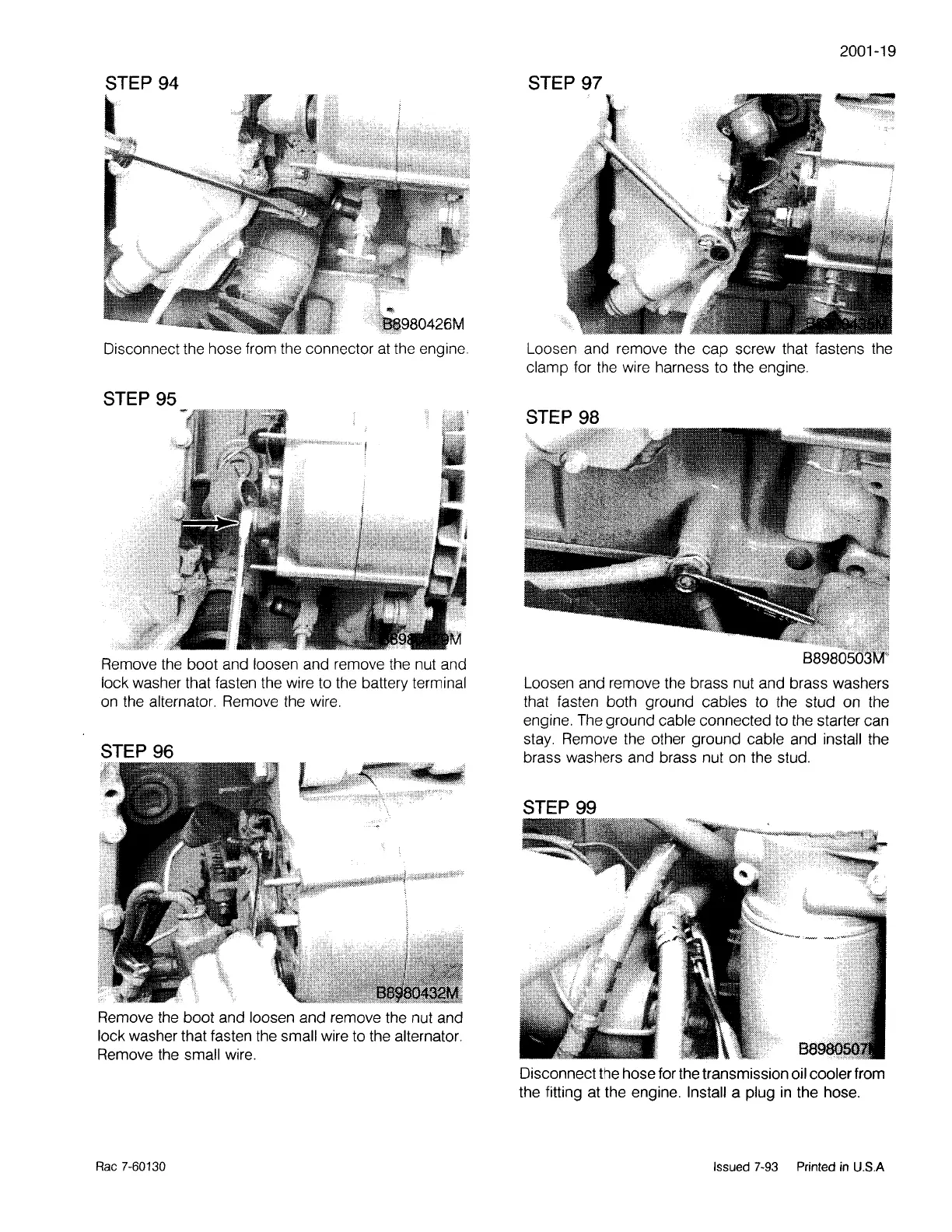

Disconnect the hose from the connector
at
the engine.
STEP 95
Remove the boot and loosen and remove the nut and
lock washer that fasten the wire to the battery terminal
on the alternator. Remove the wire.
STEP 96
Remove the boot and loosen and remove the nut and
lock washer that fasten the small wire to the alternator.
Remove the small wire.
Rae
7-60130
2001-19
STEP 97
Loosen and remove the cap screw that fastens the
clamp for the wire harness to the engine.
STEP 98
Loosen and remove the brass nut and brass washers
that fasten both ground cables to the stud on the
engine.
The
ground cable connected to the starter can
stay. Remove the other ground cable and install the
brass washers and brass nut
on
the stud.
STEP 99
Disconnect the hose for the transmission oil cooler from
the fitting at the engine. Install a plug
in
the hose.
Issued
7-93
Printed
in
U.S.A
