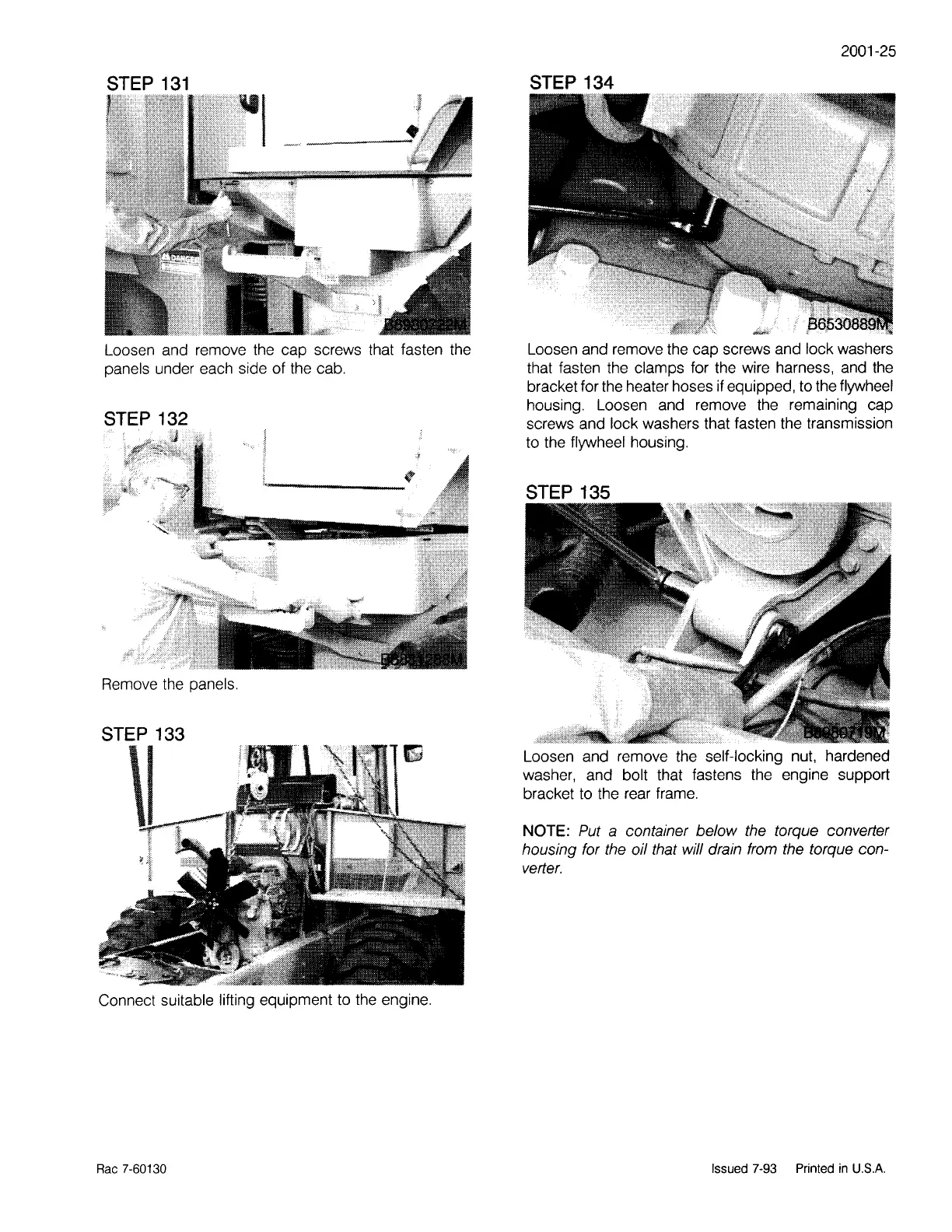

STEP
131
Loosen and remove the cap screws that fasten the
panels under each side of the cab.
STEP 132
Remove the panels.
STEP 133
\I
Connect suitable lifting equipment to the engine.
Rae
7-60130
2001-25
STEP 134
Loosen and remove the cap screws and lock washers
that fasten the clamps for the wire harness, and
the
bracket for the heater hoses if equipped, to the flywheel
housing. Loosen and remove the remaining cap
screws and lock washers that fasten the transmission
to the flywheel housing.
STEP 135
Loosen and remove the self-locking nut, hardened
washer, and bolt that fastens the engine support
bracket to the rear frame.
NOTE: Put a container below the torque converter
housing for the oil that will drain from the torque con-
verter.
Issued
7-93
Printed
in
U.S.A.
