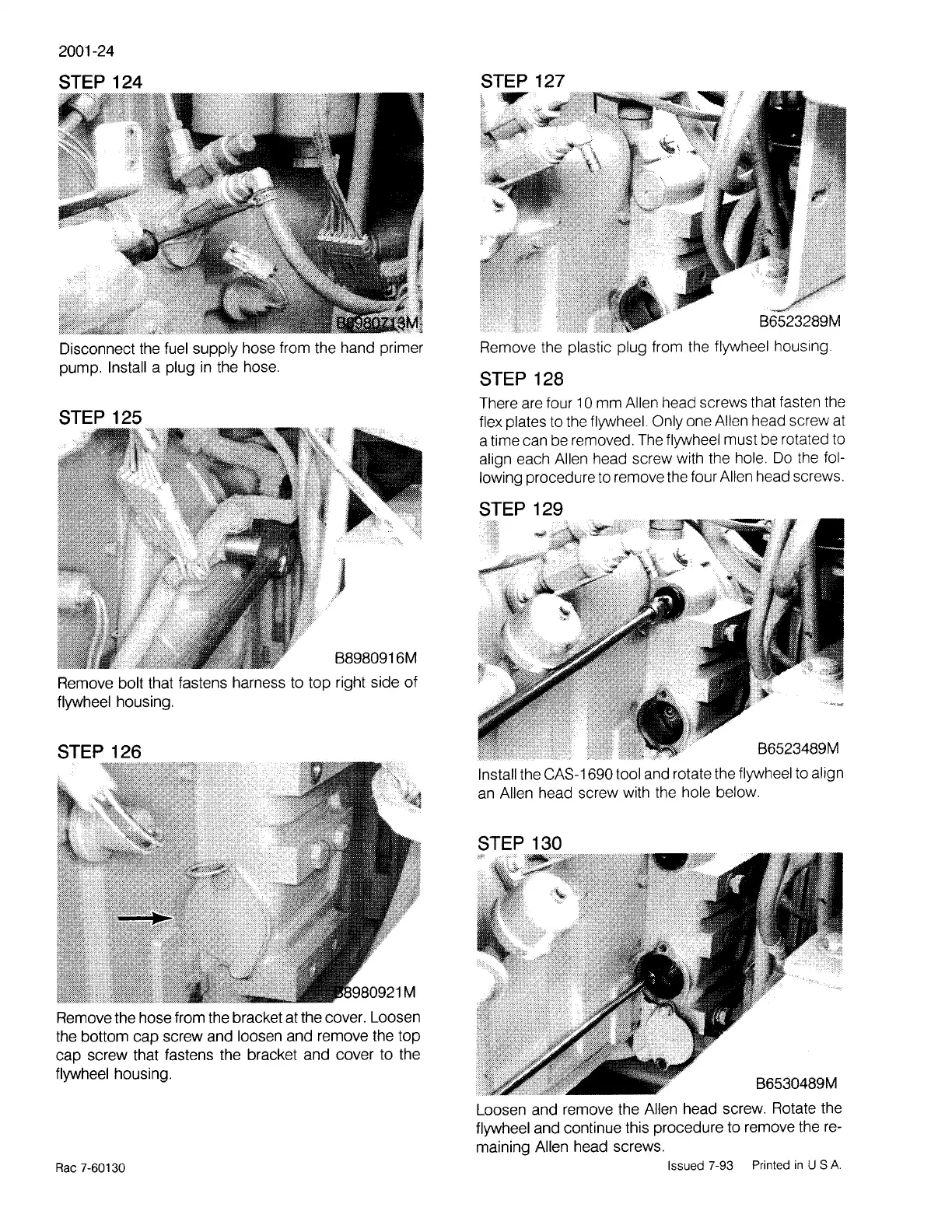

2001-24
STEP 124
Disconnect the fuel supply hose from the hand primer
pump. Install a plug
in
the hose.
STEP 125
88980916M
Remove bolt that fastens harness to top right side of
flywheel housing.
STEP 126
Remove the hose from the bracket at the cover. Loosen
the bottom cap screw and loosen and remove the top
cap screw that fastens the bracket and cover to the
flywheel housing.
Rae
7-60130
STEP 127
Remove the plastic plug from the flywheel housing.
STEP 128
There are four 1
O
mm Allen head screws that fasten the
flex plates to the flywheel. Only one Allen head screw at
a time can be removed. The flywheel must be rotated to
align each Allen head screw with the hole.
Do
the fol-
lowing procedure to remove the four Allen head screws.
STEP 129
86523489M
Install the CAS-1690 tool and rotate the flywheel to align
an Allen head screw with the hole below.
STEP 130
8¥"
86530489M
Loosen and remove the Allen head screw. Rotate the
flywheel and continue this procedure to remove the re-
maining Allen head screws.
Issued 7-93 Printed
in
US
A.
