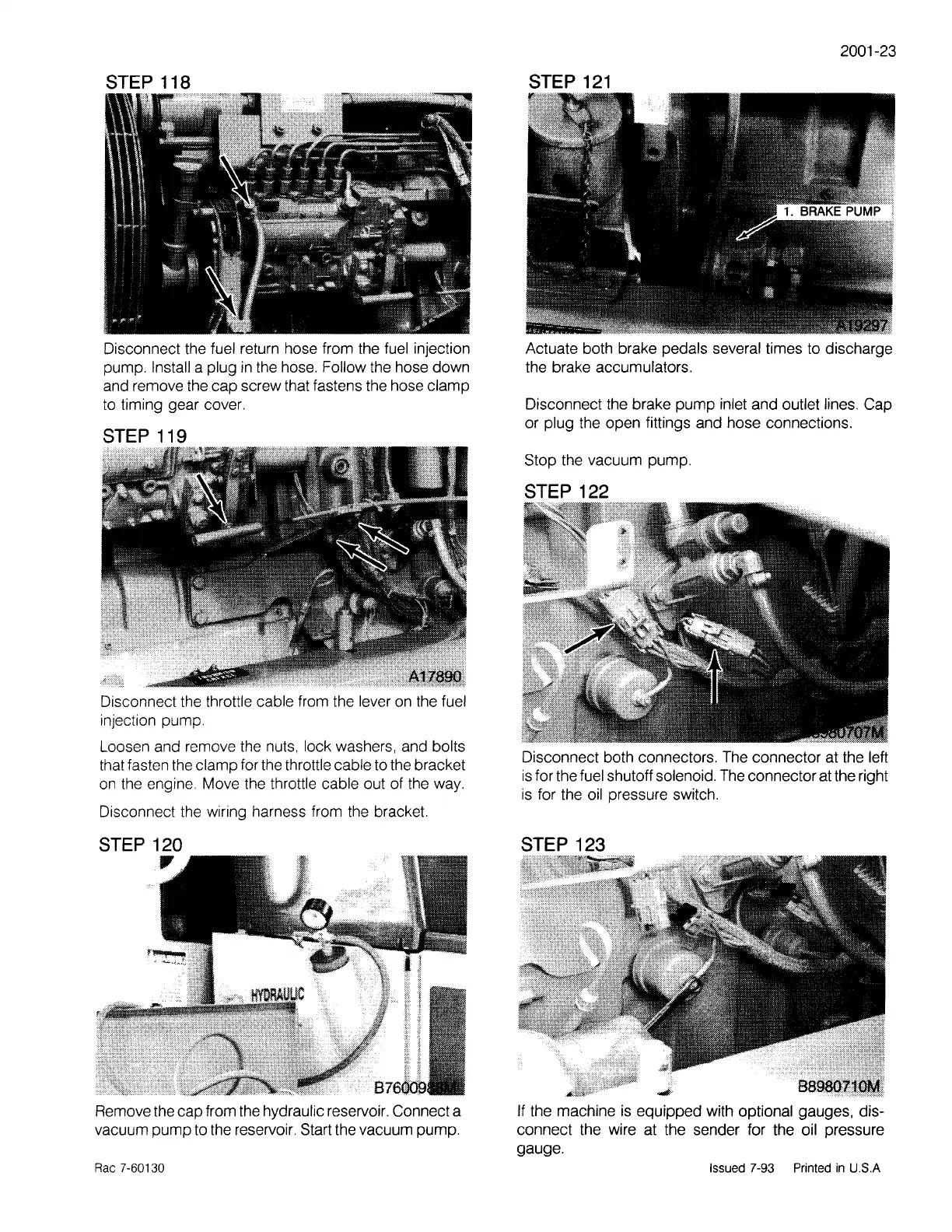

STEP 118
Disconnect the fuel return hose from the fuel injection
pump. Install a plug
in
the hose. Follow the hose down
and remove the cap screw that fastens the hose clamp
to timing gear cover.
STEP 119
Disconnect the throttle cable from the lever
on
the fuel
injection pump.
Loosen and remove the nuts, lock washers, and bolts
that fasten the clamp for the throttle cable to the bracket
on
the engine. Move the throttle cable out of the way.
Disconnect the wiring harness from the bracket.
Remove the cap from the hydraulic reseNoir. Connect a
vacuum pump to the reseNoir. Start the vacuum pump.
Rae
7-60130
2001-23
STEP
121
Actuate both brake pedals several times to discharge
the brake accumulators.
Disconnect the brake pump inlet and outlet lines. Cap
or plug the open fittings and hose connections.
Stop the vacuum pump.
STEP 122
Disconnect both connectors. The connector at the left
is
for the fuel shutoff solenoid.
The
connector at the right
is
for the oil pressure switch.
STEP 123
If the machine
is
equipped with optional gauges, dis-
connect the wire at the sender for the oil pressure
gauge.
Issued
7-93
Printed
in
U.S.A
