2000-6
Bur 5-2700 Issued 8-06 Printed in U.S.A.

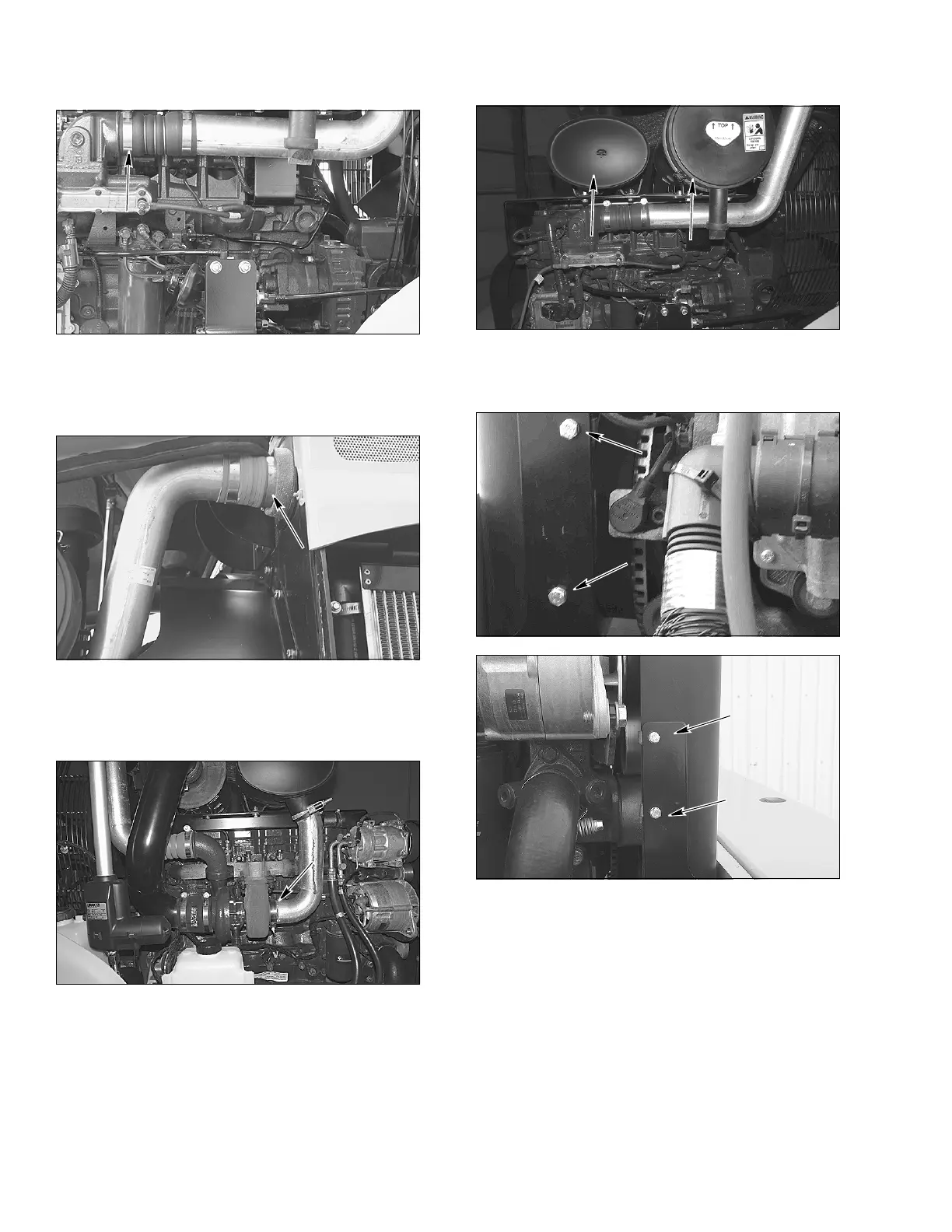

STEP 18
BD06F111
Loosen the clamp on the intake manifold for the after
cooler output hose.
STEP 19
BD03A118
Loosen the clamp on the after cooler and remove the
after cooler outlet hose from the machine.
STEP 20
BD06F110
Loosen the exhaust clamp from the turbocharger.
STEP 21
BD06F112
Remove the air cleaner and muffler from the bracket.
STEP 22
BD06F113
BD06F114
Remove the four mounting bolts from the belt cover,
remove the cover.
NOTE: After removing the belt cover remove the
cover mounting brackets from the machine frame.
