ENGINE
Removal
IMPORTANT: When disconnecting fuel or hydraulics
connections put caps on the fittings and plugs in the
hoses to prevent foreign material from entering the
system.

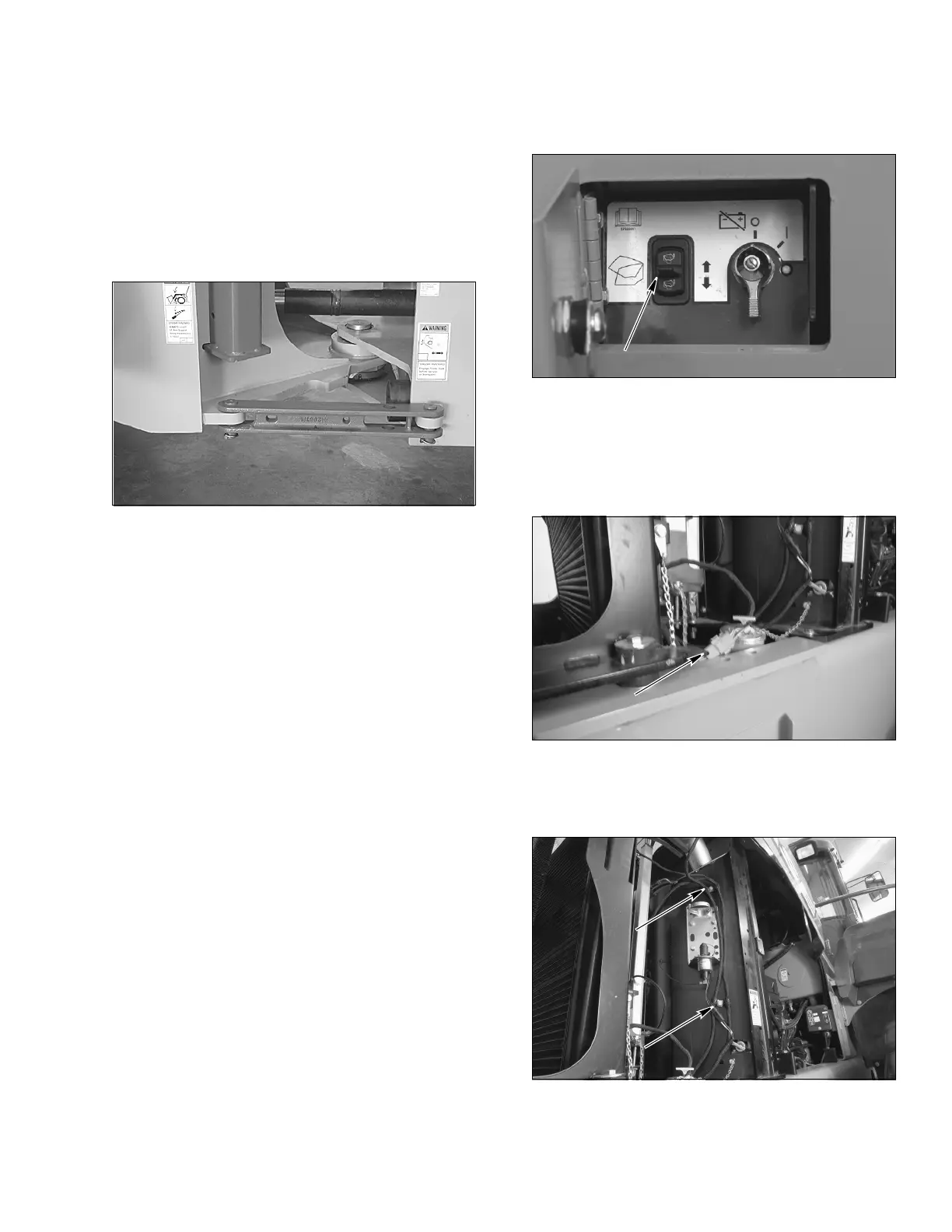

STEP 1
BD03A040
Park machine on a level surface and lower bucket to
ground. Put articulation lock in LOCKED position.
STEP 2
Turn the ignition switch to the run position, place the
pilot control switch in the normal operation position
(right side of rocker switch depressed).
STEP 3
Move the loader hydraulic control handle to the raise
and lower position in order to release any hydraulic
pressure in the lift circuit.
STEP 4
Move the loader control handle in and out of the tilt
position several times, this will relieve any pressure
in the pilot accumulator.
STEP 5
Release the pressure in the ride control accumulator
with the bleeder valve in the ride control valve, see
ride control valve remove section 8001.
STEP 6
Actuate brake pedal several times to discharge brake
accumulators.
STEP 7
Slowly loosen the filler cap for hydraulic reservoir to
release air pressure in hydraulic reservoir.
STEP 8
BD07A219
Raise the hood with the hood lift motor. Put master
disconnect switch in OFF position. Remove both
battery covers and disconnect batteries from the
machine.
STEP 9
BD07B106
Tag and disconnect hood wiring harness connector
from rear chassis wiring harness connector.
STEP 10
BD07B107
Remove bolts securing harness.
