2000-4
Bur 5-5410 Issued 2-07 Printed in U.S.A.

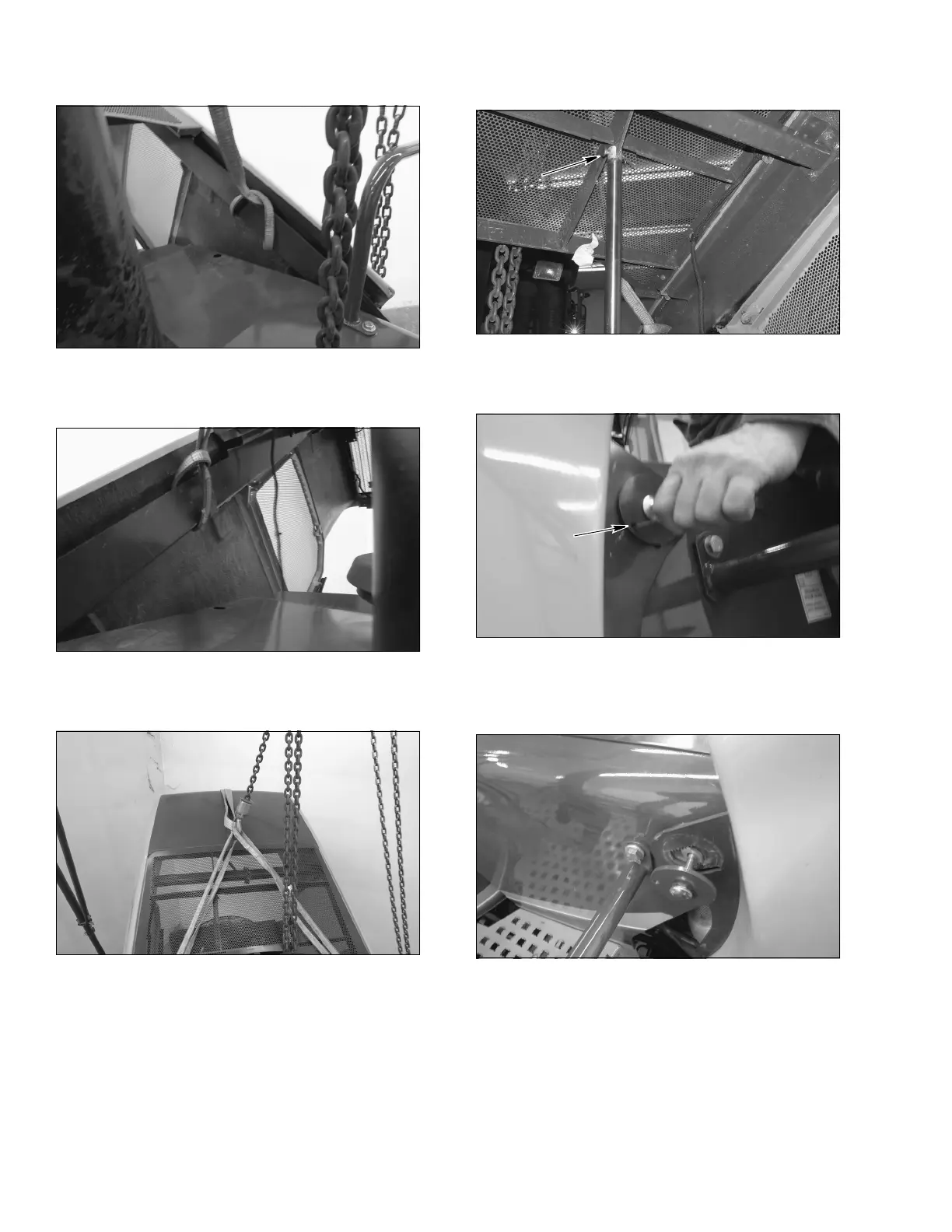

STEP 11
BD07B108
Attach sling left side of the hood.
STEP 12
BD07B109
Attach sling right side of the hood.
STEP 13
BD07B110
Attach a sling to the rear of the hood. Raise and
remove weight from the hood lifting motor.
STEP 14
BD07B111
Remove the pin from the top of the lifting motor.
STEP 15
BD07B112
Put punch in the hole to hold washer and bolt from
turning while removing nut from inside.
STEP 16
BD07B113
Push bolt and washer away from hinge, do not
remove at this time.
To Next Page
