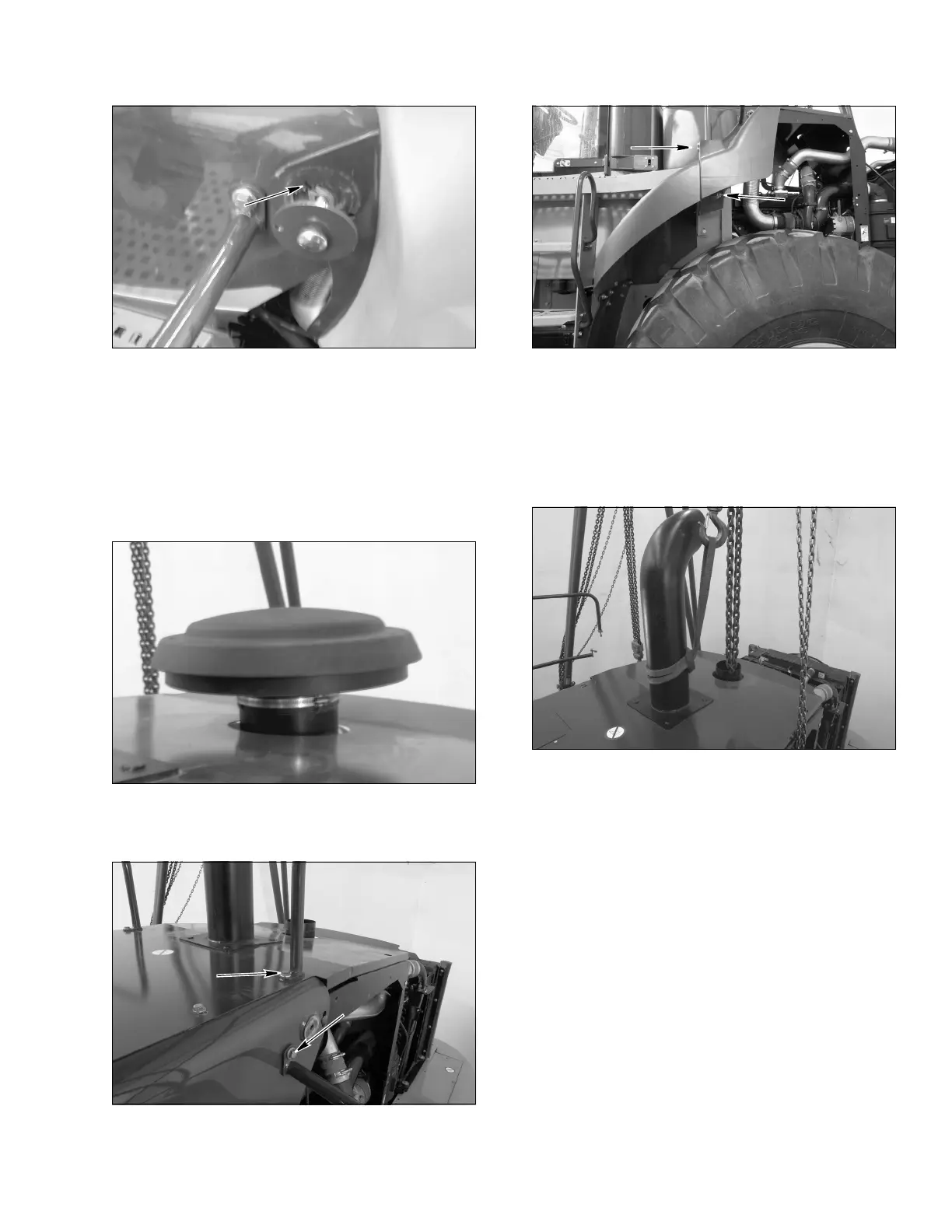

STEP 17
BD07B114
Mark wedge and hood for reposition during
assembly, remove bolt, washer, and wedge.
STEP 18
Carefully raise and remove hood from loader. Lower
hood onto suitable platform and disconnect lifting
equipment.
STEP 19
BD07B115
Loosen clamp and remove inlet air hood.
STEP 20
BD07B116
Remove hand rail bolts.
STEP 21
BD07B117
Loosen hand rail bolts, turn the hand rail out away
from the engine hood.
STEP 22
Repeat steps 20 and 21 for the other hand rail.
STEP 23
BD07B118
Remove hood mounting bolts, attach sling to exhaust
stack.
STEP 24
Carefully raise and remove hood from loader. Lower
hood onto suitable platform and disconnect lifting
equipment.
