1001-7

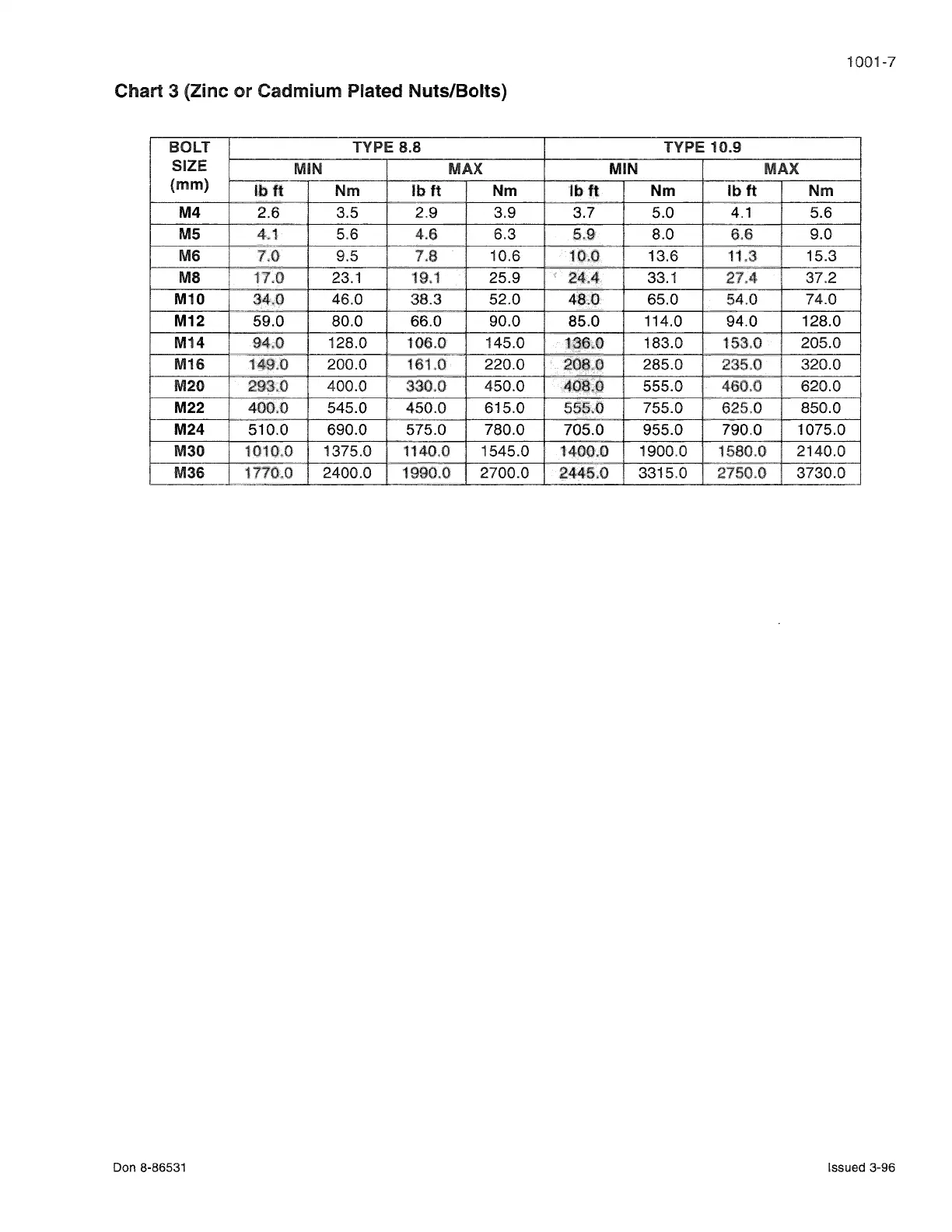

Chart 3 (Zinc or Cadmium Plated Nuts/Bolts)
BOLT TYPE 8.8 TYPE 10.9
SIZE
MIN MAX
MIN MAX
(mm)
lb ft
Nm
lb ft
Nm
lbft
Nm
lb ft
Nm
M4
2.6
3.5 2.9 3.9 3.7 5.0 4.1 5.6
MS
4.1
5.6
4.6
6.3
5.9
8.0
6.6
9.0
M6
7.0 9.5
7.8
10.6
10.0 13.6
11.3
15.3
MS 17.0 23.1
19.1
25.9
24.4
33.1
27.4
37.2
M10 34.0
46.0
38.3 52.0
48.0
65.0
54.0
74.0
-·
M12 59.0 80.0 66.0 90.0 85.0 114.0
94.0
128.0
M14
94.0
128.0
106.0
145.0
136.0
183.0
153.0
205.0
M16 149.0 200.0
161.0
220.0
208.0
285.0
235.0
320.0
M20
293.0
400.0
330.0
450.0
408.0
555.0
460.0
620.0
M22 400.0 545.0
450.0
615.0
555.0
755.0
625.0
850.0
M24
510.0
690.0 575.0 780.0
705.0
955.0 790.0 1075.0
M30
1010.0
1375.0
1140.0
1545.0
1400.0
1900.0
1580.0
2140.0
~.
M36 1770.0 2400.0
1990.0
2700.0
2445.0
3315.0
2750.0
3730.0
•·
Don 8-86531 Issued 3-96
