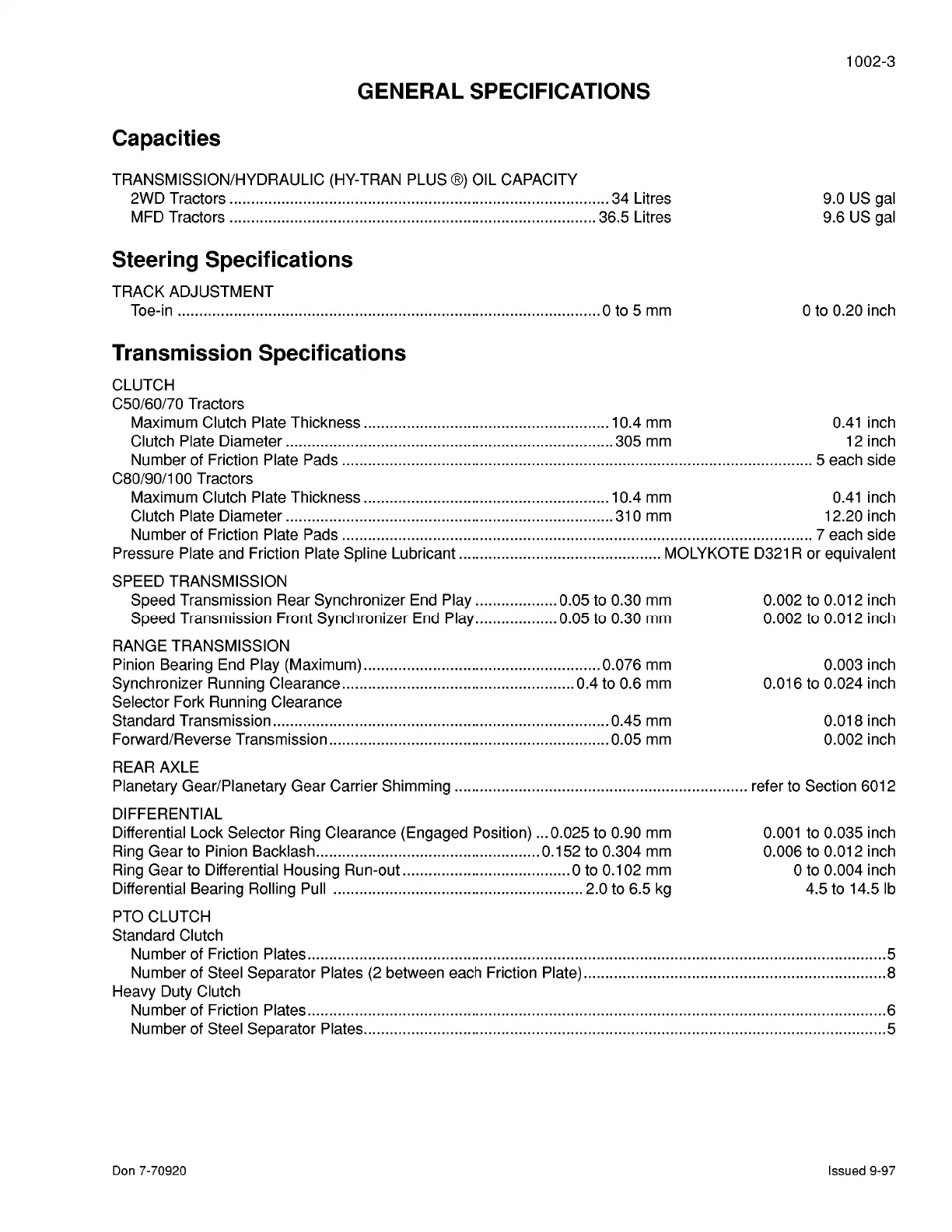

GENERAL SPECIFICATIONS
Capacities
TRANSMISSION/HYDRAULIC (HY-TRAN PLUS®) OIL CAPACITY
2WD Tractors ........................................................................................ 34 Litres
MFD Tractors ..................................................................................... 36.5 Litres
Steering Specifications
TRACK ADJUSTMENT
Toe-in .................................................................................................. 0 to 5 mm
Transmission Specifications
CLUTCH
C50/60/70 Tractors
1002-3
9.0 US gal
9.6 US gal
0 to 0.20 inch
Maximum Clutch Plate Thickness ......................................................... 10.4 mm 0.41 inch
Clutch Plate Diameter ............................................................................ 305 mm 12 inch
Number of Friction Plate Pads ............................................................................................................. 5 each side
CS0/90/100 Tractors
Maximum Clutch Plate Thickness ......................................................... 10.4 mm 0.41 inch
Clutch Plate Diameter ............................................................................ 310 mm 12.20 inch
Number of Friction Plate Pads ............................................................................................................. 7 each side
Pressure Plate and Friction Plate Spline Lubricant ............................................... MOLYKOTE D321 R or equivalent
SPEED TRANSMISSION
Speed Transmission Rear Synchronizer End Play ................... 0.05 to 0.30 mm
Speed Transmission Front Synchronizer End Play ................... 0.05 to 0.30 mm
RANGE TRANSMISSION
Pinion Bearing End Play (Maximum) ....................................................... 0.076 mm
Synchronizer Running Clearance ...................................................... 0.4 to 0.6 mm
Selector Fork Running Clearance
Standard Transmission .............................................................................. 0.45 mm
Forward/Reverse Transmission ................................................................. 0.05 mm
REAR AXLE
0.002 to 0.012 inch
0.002 to 0.012 inch
0.003 inch
0.016 to 0.024 inch
0.018 inch
0.002 inch
Planetary Gear/Planetary Gear Carrier Shimming .................................................................... refer to Section 6012
DIFFERENTIAL
Differential Lock Selector Ring Clearance (Engaged Position) ... 0.025 to 0.90 mm
Ring Gear to Pinion Backlash .................................................... 0.152 to 0.304 mm
Ring Gear to Differential Housing Run-out ....................................... 0 to 0.102 mm
Differential Bearing Rolling Pull .......................................................... 2.0 to 6.5 kg
PTO CLUTCH
Standard Clutch
0.001 to 0.035 inch
0.006 to 0.012 inch
0 to 0.004 inch
4.5 to 14.5 lb
Number of Friction Plates ...................................................................................................................................... 5
Number of Steel Separator Plates (2 between each Friction Plate) ...................................................................... 8
Heavy Duty Clutch
Number of Friction Plates ...................................................................................................................................... 6
Number of Steel Separator Plates ......................................................................................................................... 5
Don 7-70920 Issued 9-97
