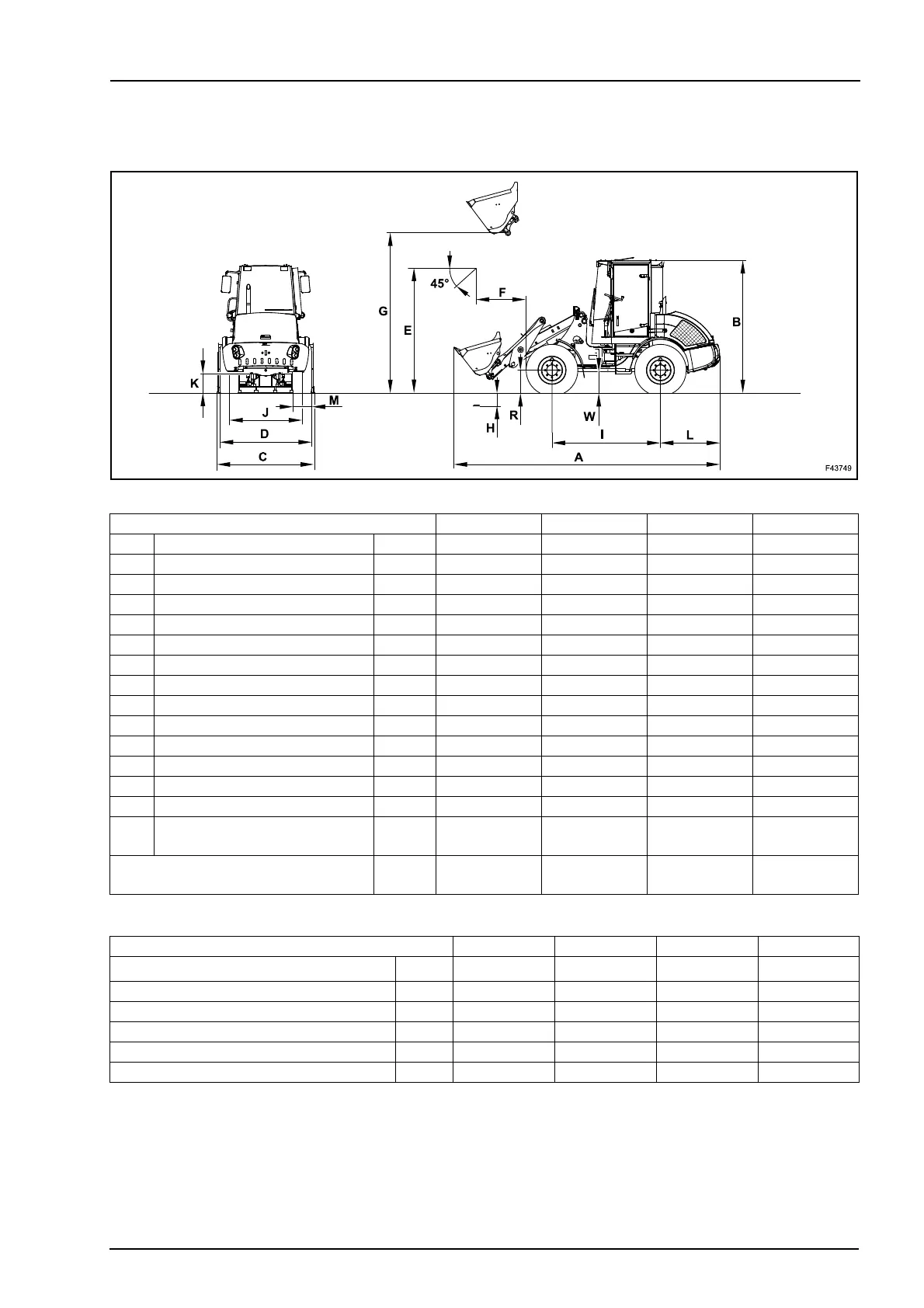

3.2 DIMENSIONS AND PERFORMANCE WITH BUCKET
(*) these dimensions apply when considering 12.5-20 tyres for 21E and 14.5-20 tyres for 121E - 221E - 321E
BUCKET - DIMENSIONS 21E 121E 221E 321E
A Total length mm (in) 5360 (211.02) 5490 (216.14) 5590 (220.07) 5650 (222.44)
B Cab height mm (in) 2710 (107.70) 2790 (109.84) 2790 (109.84) 2790 (109.84)
C Bucket width mm (in) 1900 (74.80) 2050 (80.70) 2100 (88.70) 2100 (82.70)
D Wheel width mm (in) 1841 (72.48) 1910 (75.19) 1910 (75.19) 1954 (76.92)
E Dumping height mm (in) 2525 (99.40) 2550 (100.39) 2570 (101.18) 2616 (102.99)
F Dumping reach mm (in) 825 (32.50) 785 (30.90) 845 (33.26) 890 (35.03)
G Maximum height of bucket pin mm (in) 3240 (127.55) 3267 (128.62) 3360 (132.28) 3440 (135.43)
H Dumping depth mm (in) 93 (3.66) 96 (3.77) 107 (4.21) 106 (4.17)
I Wheel base mm (in) 2182 (85.90) 2250 (88.60) 2350 (92.51) 2350 (92.51)
J Track mm (in) 1480 (58.26) 1526 (60.07) 1526 (60.07) 1570 (61.81)
K Clearance from ground to axle mm (in) 330 (13) 330 (13) 330 (13) 330 (13)
L Rear overhang mm (in) 1203 (47.36) 1267 (49.88) 1267 (49.88) 1267 (49.88)
M Tyre width (*) mm (in) 361 (14.21) 384 (15.11) 384 (15.11) 384 (15.11)
R Tyre radius (*) mm (in) 483 (19.01) 508 (19.99) 508 (19.99) 508 (19.99)
W Clearance from ground to drive
shaft
mm (in) 400 (15.74) 415 (16.33) 415 (16.33) 415 (16.33)
Operating weight (with standard
bucket)
kg (lb) 4615 (10153) 4920 (10824) 5430 (11946) 5770 (12695)
BUCKET - PERFORMANCE 21E 121E 221E 321E
Standard bucket capacity
m
3
(ft
3
)
0.7 (24.7) 0.8 (28.2) 1 (35.3) 1.1 (38.8)
Tensile force kg (lb) 3800 (8360) 4550 (10010) 4410 (10010) 5100 (11220)
Dumping load - ISO axis kg (lb) 3345 (7359) 3495 (7689) 4245 (9339) 4420 (9724)
Dumping load - turned by 40° ISO kg (lb) 2945 (6500) 3100 (6820) 3630 (7986) 3755 (8261)
Bucket width mm (in) 1900 (74.80) 2050 (80.70) 2100 (88.70) 2100 (88.70)
Lifting capacity at ground mm (in) 4260 (167.71) 5520 (217.32) 4410 (173.62) 6060 (238.58)
