14 SECTION 00 - INTRODUCTION

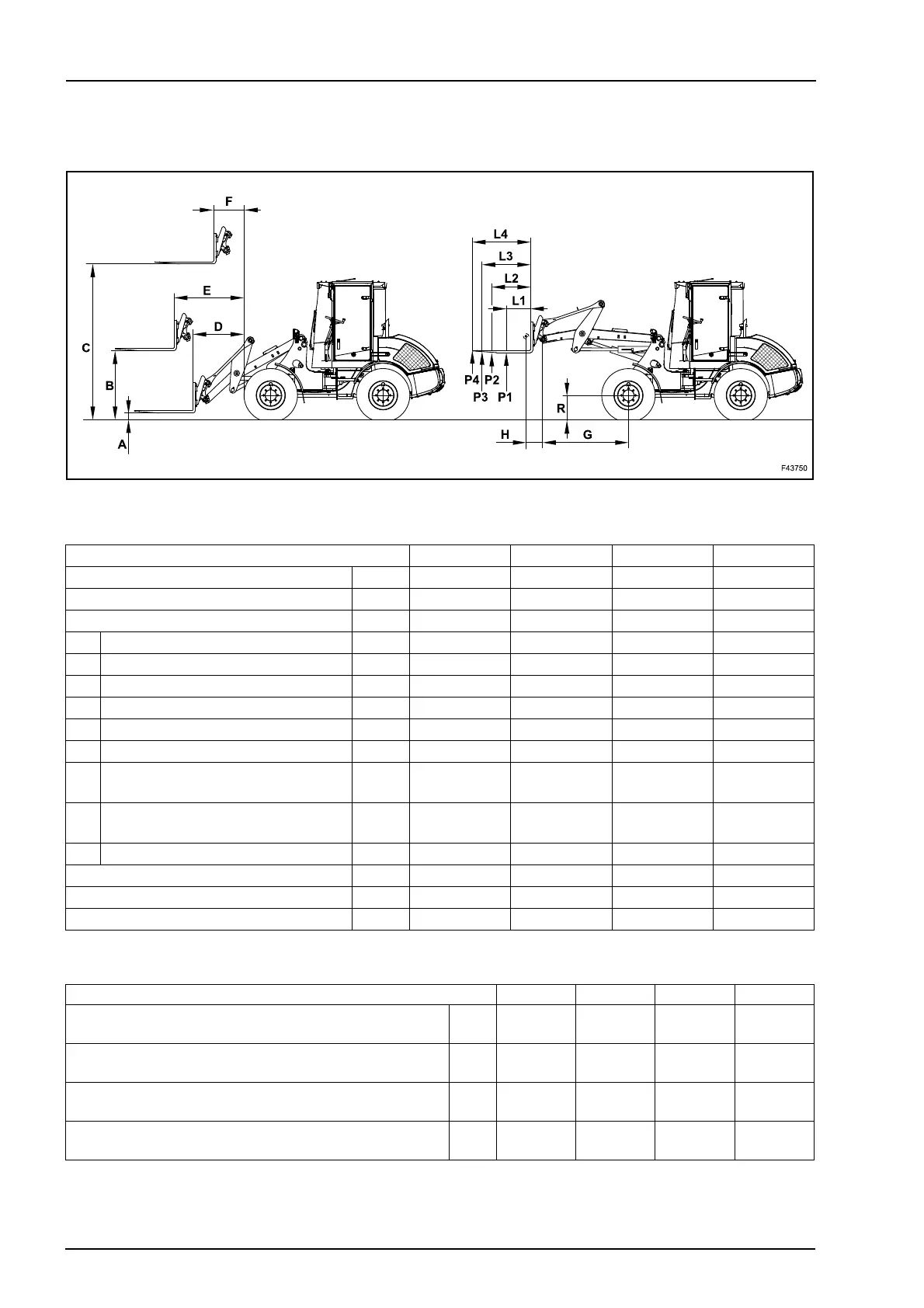

3.3 DIMENSIONS AND PERFORMANCE WITH FORKS
(*) this dimension applies when considering 12.5-20 tyres for 21E and 14.5-20 tyres for 121E - 221E - 321E
BUCKET WITH FORKS - DIMENSIONS 21E 121E 221E 321E
Total length with forks mm (in) 1200 (47.24) 1200 (47.24) 1200 (47.24) 1200 (47.24)
Width of fork support mm (in) 1450 (57.08) 1450 (57.08) 1450 (57.08) 1450 (57.08)
Fork weight kg (lb) 336 (741) 336 (741) 336 (741) 336 (741)
A Clearance from ground mm (in) 100 (3.93) 100 (3.93) 100 (3.93) 100 (3.93)
B Height with maximum outreach mm (in) 1311 (51.61) 1336 (52.59) 1393 (54.84) 1393 (54.84)
C Maximum height mm (in) 2960 (116.53) 2987 (117.59) 3080 (121.25) 3160 (124.40)
D Outreach at ground mm (in) 771 (30.35) 731 (28.77) 731 (28.77) 798 (31.41)
E Maximum outreach mm (in) 1335 (52.55) 1315 (51.77) 1340 (52.75) 1390 (54.72)
F Outreach at maximum height mm (in) 600 (23.62) 580 (22.83) 610 (24.01) 587 (23.11)
G Outreach of coupler pin of bucket
with forks
mm (in) 1630 (64.17) 1630 (64.17) 1650 (64.96) 1700 (66.92)
H Coupler pin switch and centre of
gravity
mm (in) 340 (13.38) 340 (13.38) 340 (13.38) 340 (13.38)
R Tyre radius (*) mm (in) 543 (21.37) 562 (22.12) 562 (22.12) 562 (22.12)
Payload on level ground kg (lb) 1640 (3608) 1780 (3916) 2120 (4664) 2215 (4873)
Payload on rough ground kg (lb) 1230 (2706) 1335 (2937) 1590 (3498) 1660 (3652)
Operating weight kg (lb) 4655 (10241) 4895 (10769) 5370 (11814) 5690 (12518)
LIFTING LOADS 21E 121E 221E 321E
At L1 = 500 mm (19.68 in) kg
(lb)
1600
(3520)
1700
(3740)
1950
(4290)
2250
(4950)
At L2 = 800 mm (31.49 in) kg
(lb)
1400
(3080)
1500
(3300)
1550
(3410)
1550
(3410)
At L3 = 1000 mm (39.37 in) kg
(lb)
1250
(2750)
1250
(2750)
1250
(2750)
1250
(2750)
At L4 = 1200 mm (47.24 in) kg
(lb)
1000
(2200)
1000
(2200)
1000
(2200)
1000
(2200)
