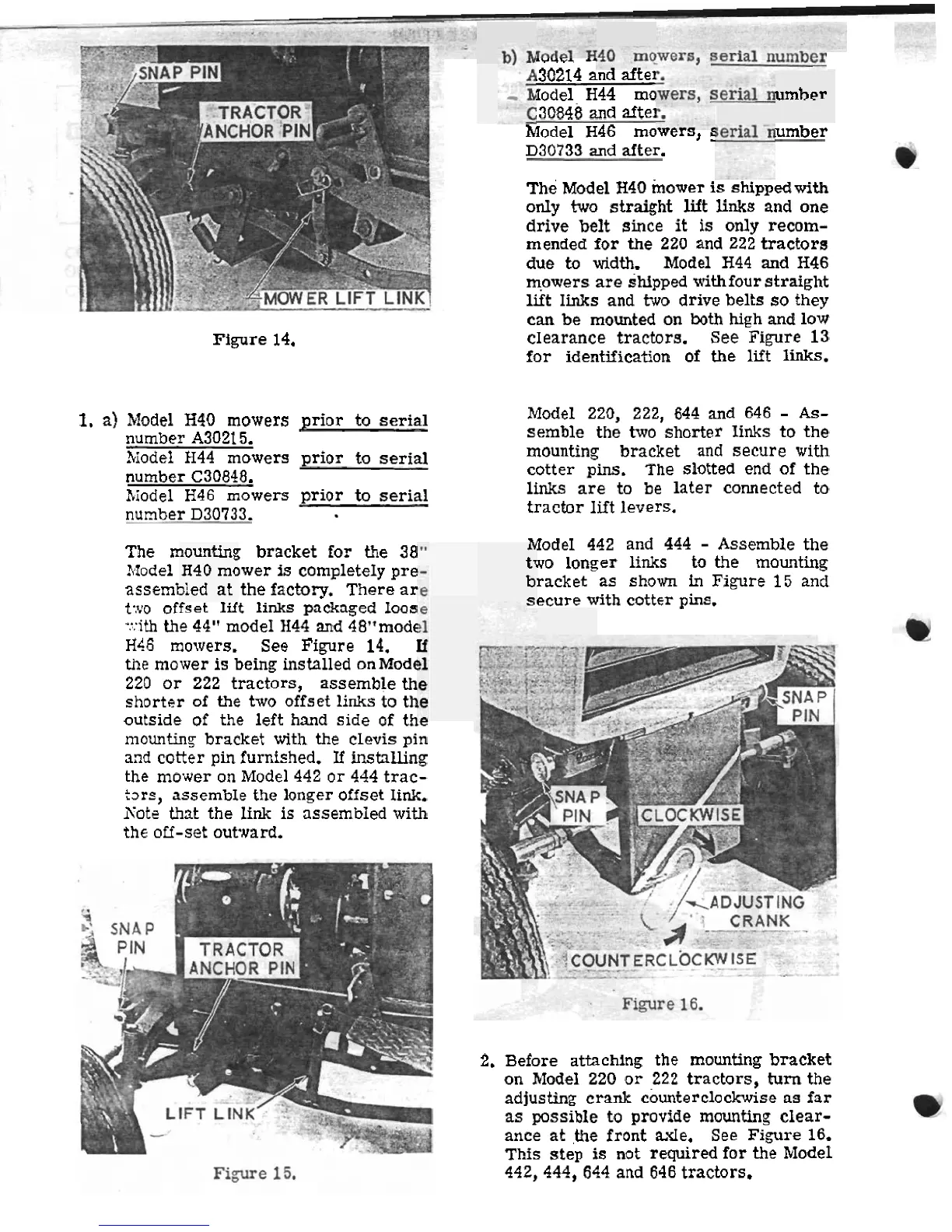

Case H40 - Mounting Bracket Assembly; Adjusting Crank Usage

Figure 14.
1. a) Model H40 mowers prior to serial
number A3021 5,
Siodel H44 mowers prior to serial
number C30848.
hiodel H46 mowers prior to serial
number D30733.
The mounting bracket for the 38
.?.lode1 H40 mower Is completely pre
ass~rnb~ed at the factory, There ar
txo offset lift links packaged 100s
-::ith the 44" model H44 and 48"modc
H46 mowers. See Figure 14. .
the mower is being installed onModf
220 or 222 tractors, assemble th
shorter of the two offset links to th
outside of the left hand side of th,
mountin5 bracket with the clevis pin
and cotter pin furnished, If installing
the mower on Model 442 or 444 trac-
brs, assemble the bnger offset Unk.
Kot? that the link is assembled with
the off -set outward,
IWWVI --
,30214 ma me~
lode1 H44 mo
30848 and aftel
Model H46 mowers, E
D30733 and after.
umber
umber
The Model H4O mower is smppedwith
only two straight lift links and one
drive belt since it is only recom-
mended for the 220 and 222 tractors
due to width. Model H44 and H46
Eowers are shlpped with four straight
lift Ihks and two drive belts so they
can be mounted on both high and low
clearance tractors. See Figure 13
for identification of the lift links.
Model 220, 222, 644 and 646 - As-
semble the two shorter links to the
mounting bracket and secure with
cotter pins. The slotted end of the
links are to be later connected to
tractor lift levers.
Model 442 and 444 - Assemble the
two longer links to the mounting
bracket as shown Ln Figure 15 and
=ecure with cotter pins,
2. Before attaching the mounting bracket
on niIode1 220 or 222 tractors, turn the
adjusting crank counterclockwise as far
as possible to provide moulltbng clear-
ance at the front LxIe, See Figure 16.
This step is not required for the Model
442, 444, 644 and 646 tractors.
