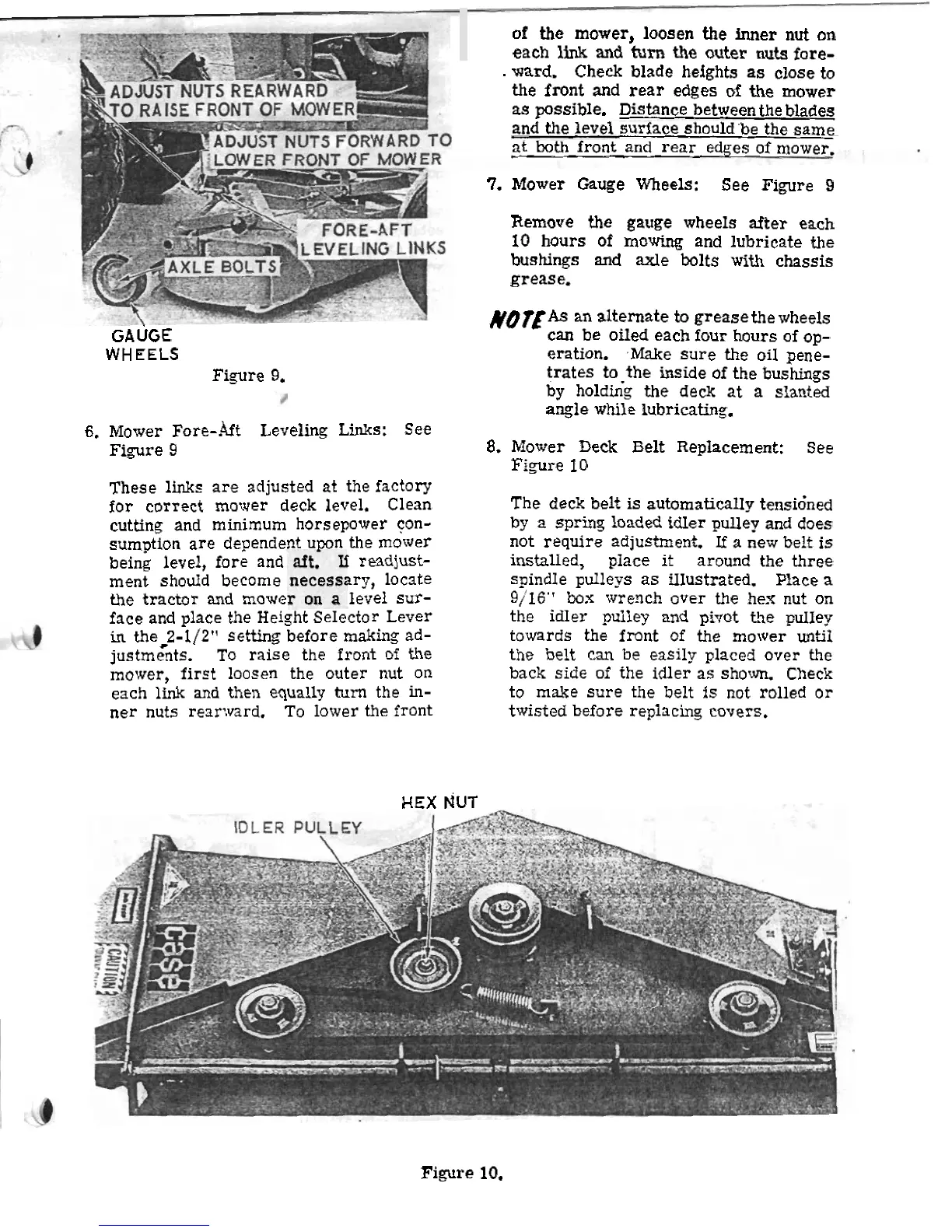

GAUGE
WHEELS
Figure
9,
6.
Mower
Fore-.bLft
Leveling
Links:
See
Figure
9
These
1Wcc
are
adjusted
at
the
factory
for
correct
mower
deck
level,
Clean
cutting
and
minimum
horsepower
con-
sumption
are
dependent
uwn
the
mdwer
being
level,
fore
and
:
readjust-
ment
should
become
iry,
locate
the
tractor
and
mowe
Ievel
sur-
face
and
place
the
Height
SeIector
Lever
in
the
2-I/2"
s~tting
before
making
ad-
justrngqts.
To
raise
the
front
of
the
mower,
first
loosen
the
outer
nut
on
each
link
and
then
equally
turn
the
in-
ner
nuts
r~sr~vard.
To
lower
the
front
of
the
mower,
loosen
the
her
nut
on
each
link
and
turn
the
outer
nuts
fore-
.
ward.
Check
blade
heights
as
close
to
the
front
and
rear
edges
of
the
mower
as
possible.
Distance
between
the
blades
and
the
level
surface
should
be
the
same
at
both
front
and
rear
edges
of
mower.
7.
Mower
Gauge
Wheels:
See
Figure
9
Remove
the
gauge
wheels
after
each
10
hours
of
mowing
and
lubricate
the
bushings
and
axle
bolts
with
chassis
grease.
mff&
an
alternate
to
grease
the
wheels
can
be
oiled
each
four hours
of
op-
eration.
Make
sure
the
oil
pene-
trates
to
the
hide
of
the
bushings
by
holdiig
the
deck
at
a
slanted
angle
while
lubricating.
8,
Mower
Deck
Belt
Replacement:
See
Figure
10
The
deck
belt
is
automaticalIy
tensianed
by
a
spring
loaded
ider
pulley
and
does
not
require
adjustment,
If
a
new
belt
is
installed,
place
it
around
the
three
spindle
pulleys
as
illustrated.
Place
a
9/'16"
box
wrench
over
the
hex
nut on
the
idler
pulley
and
pivot
L!e
pulley
towards
the
fmnt
of
the
mower
until
the
belt
can
be
easily
placed
over
the
back
side
of
the
idler
as
shown.
Check
to
make
sure
the
belt
is
not
rolled
or
twisted
before
replacing
covers.
HEX
~UT
Figure
10,
