Case PT240 - General Specification

INTRODUCTION
Generalspecication
SS12D5971

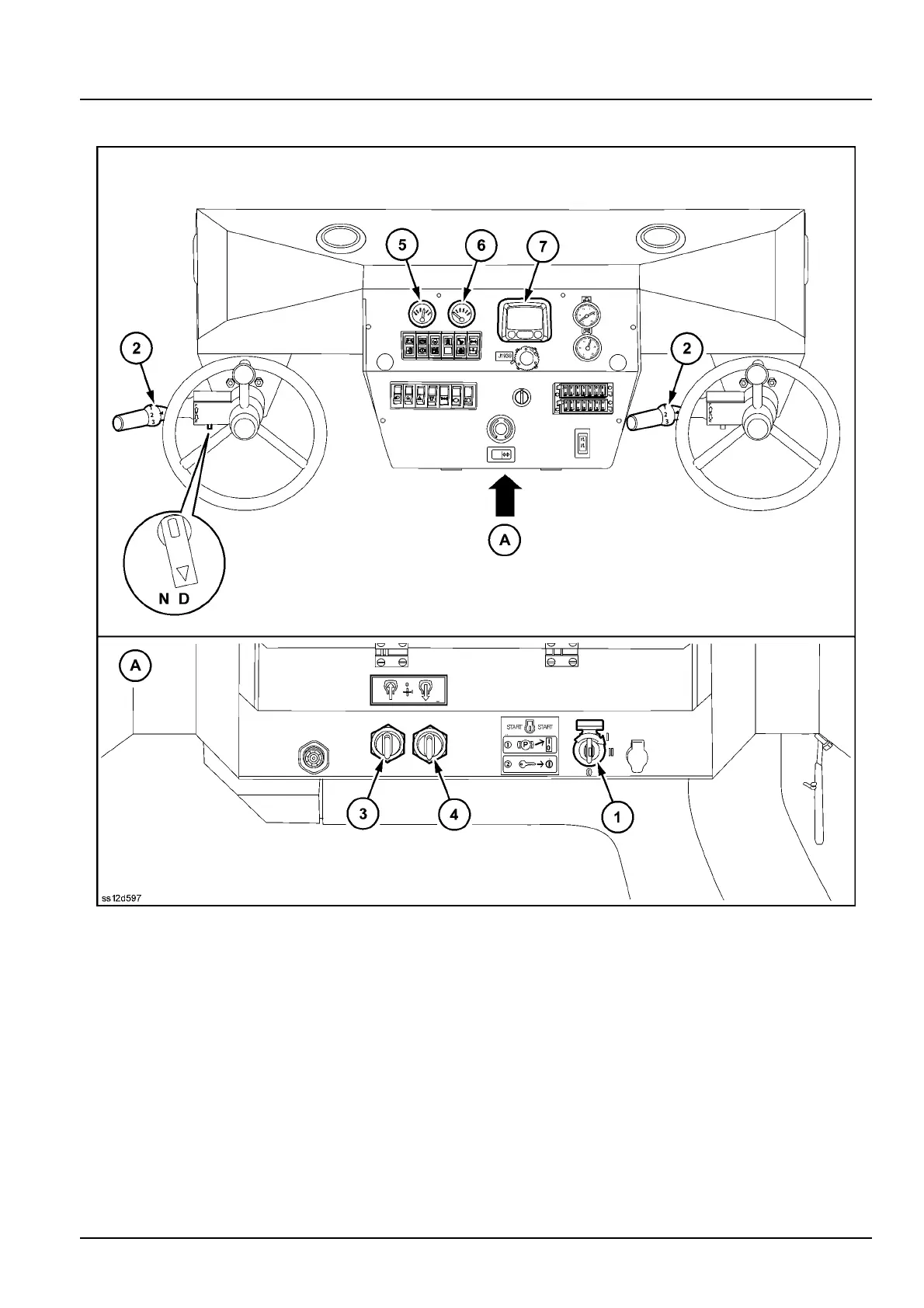

Instrumentsandcontrols
(1)Ignitionswitch
Inthe0position,themachinelightingwillbeconnectedalongwithhandlampsocket.IntheIposition,othercon-
sumerswillbeconnected.Spring-loadedpositionIIisusedtostarttheengine.Thekeycanberemovedinthe0
positiononly.
(2)Travelcontroller
Thecontrollerisusedtoadjusttherunningdirectionandtoshiftgearsviaaturninghandle.
Fposition-forward
Nposition-idle(neutral)
Rposition-reverse
Thehornbuttonandswitcharepartofthecontroller.
PositionofNswitch-controllerblocking.
